Common Rail Fuel-injection System
Printed in Mar. 2005 PS-MMA0608-E1A
3.5. Electrical System
3.5.1. Electrical parts – Truck

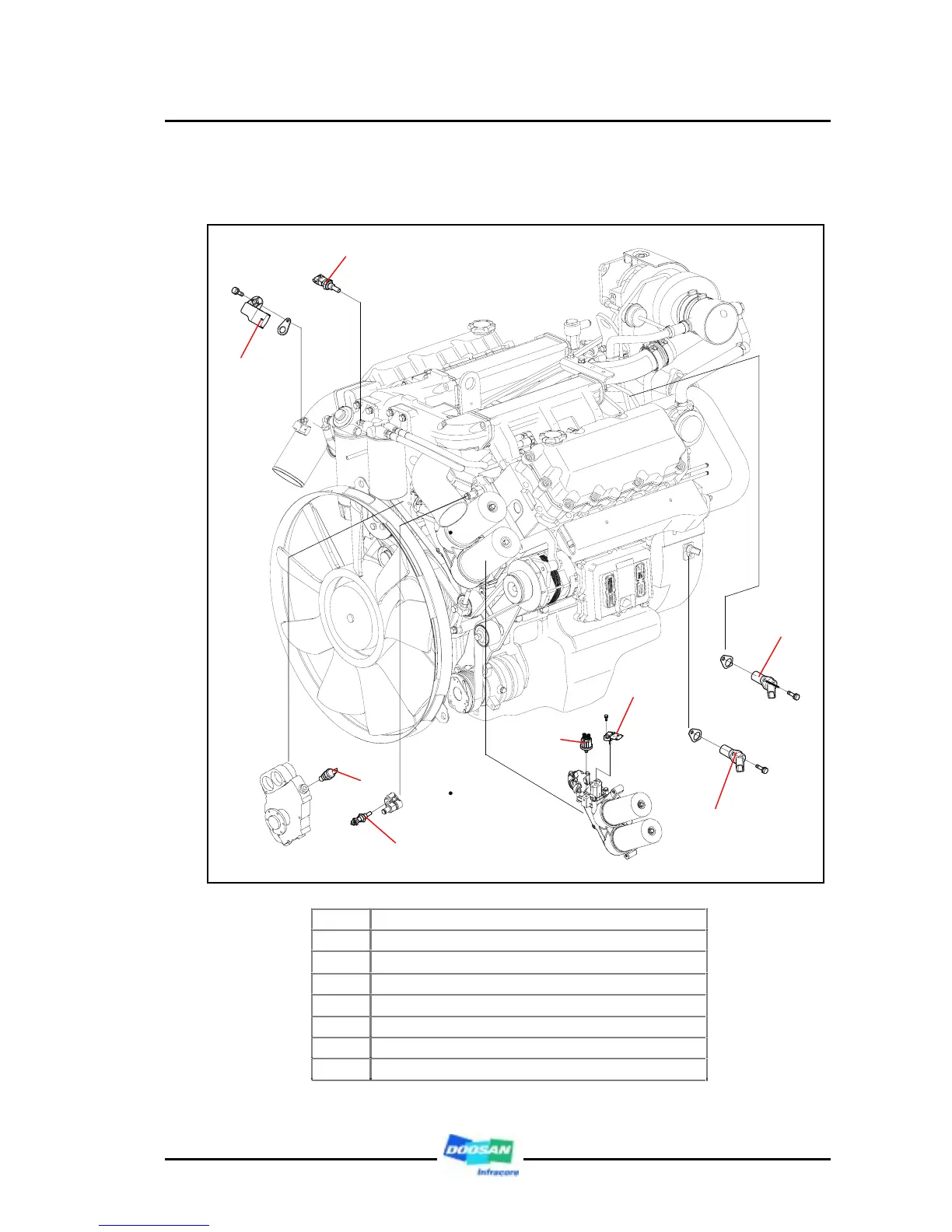

1 Boost pressure & temperature sensor
2 Fuel temperature sensor
3 Coolant temperature sensor (for gauge unit)
4 Coolant temperature sensor
5 Oil pressure sensor (for gauge unit)
6 Engine oil pressure & temperature sensor
7 Crankshaft speed sensor
8 Camshaft speed sensor
1
2
3
4
7
5
6
8
