DV11
Operation and Maintenance
60
Engine Disassembly
Printed in Mar. 2005 PS-MMA0608-E1A

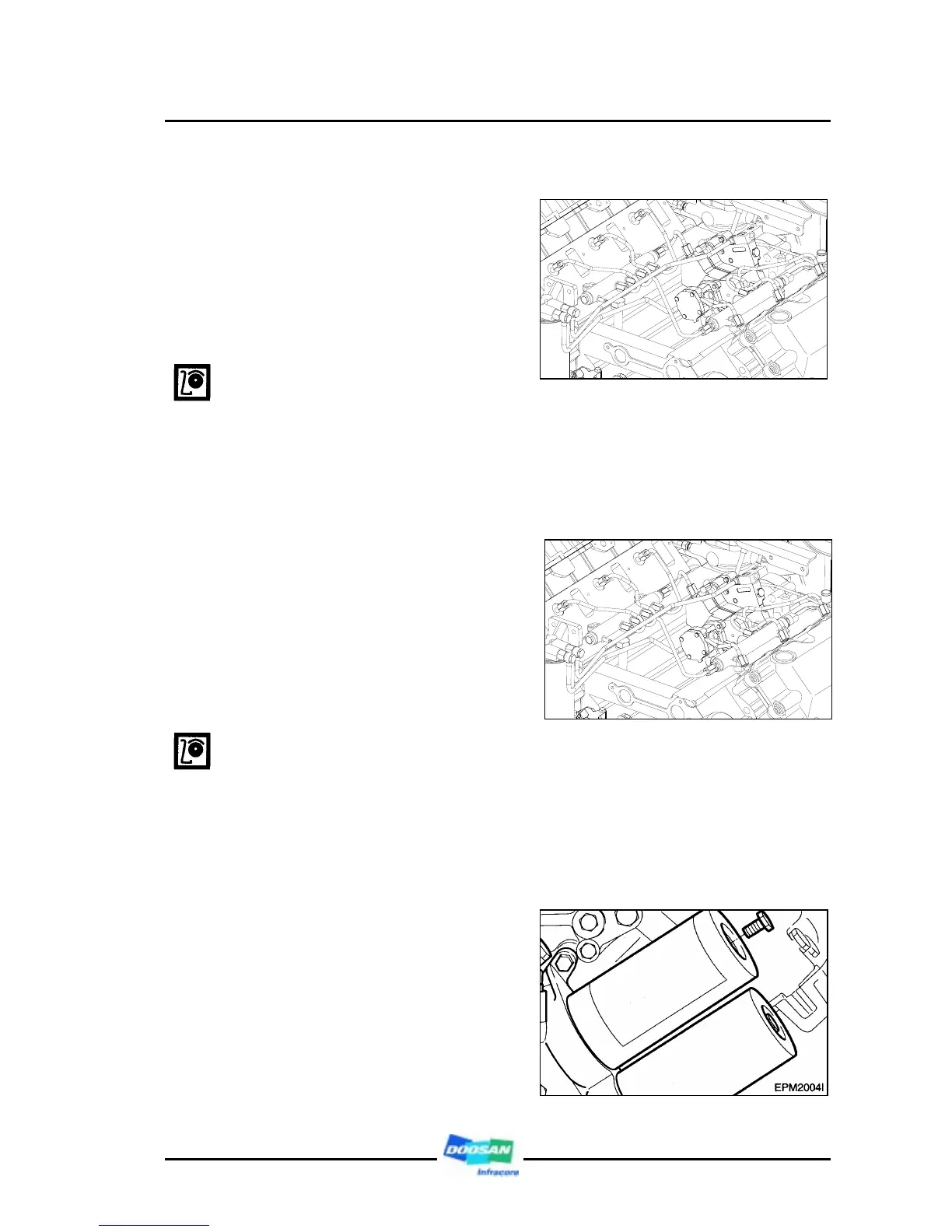

3.1.17. Common rail and high pressure pipe
z Remove the high pressure pipe
between fuel high pressure
connecter and common rail.
z Remove the common rail fixing
bolts and take off the common rail.
NOTE:
Seal the pipe to prevent from
mixing foreign material into inside
of the pipe after disassembling.
3.1.18. Fuel high pressure pump
z Remove the connecting pipe of the
fuel high pressure pump.
z Remove the fuel high pressure
pump fixing bolts and take off the
fuel high pressure pump by pushing
to backward.
NOTE:
Seal the fuel high pressure pump to
prevent from mixing foreign
material into inside of the fuel high
pressure pump after disassembling.
3.1.19. Oil filter
z Loosen the oil filter housing fixing
bolts then the spring will force the
filter housing to move upward a
little.
To Next Page
