DV11
Operation and Maintenance
96
Engine Reassembly
Printed in Mar. 2005 PS-MMA0608-E1A

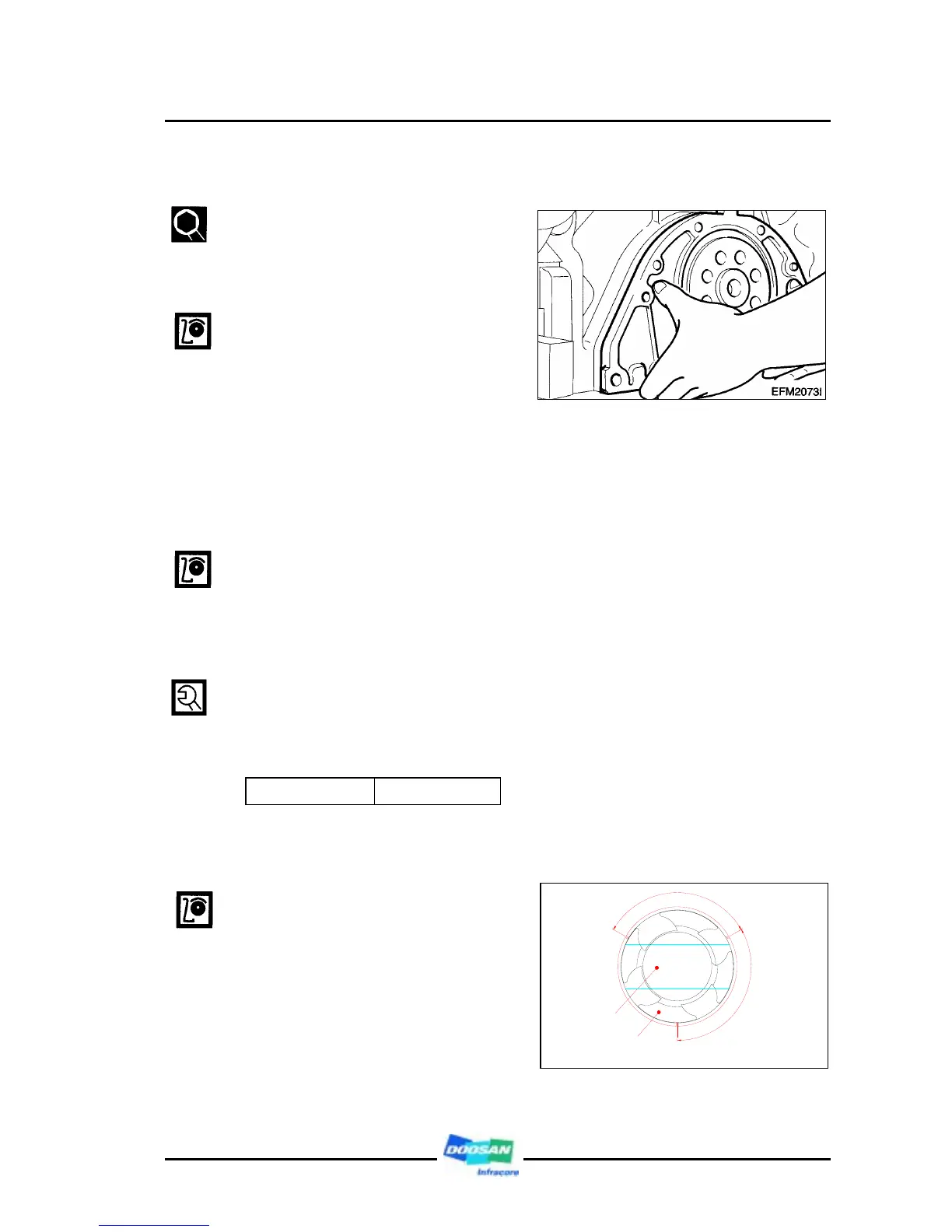

3.3.9. Front oil seal holder
z After placing the oil seal in the oil
seal holder hole properly, press it
in with a special tool. (Be careful
for oil seal not be damaged.)
z Attach a gasket at the oil seal
holder.
z Align the dowel pin with the oil seal
holder dowel hole and assemble
them by tapping lightly the dowel
pin part with an urethane hammer
when in assembling, take care not
to hurt the oil seal by the crankshaft.
NOTE:
Without coating the oil seal with oil
or lubricant, assemble it in the dry
state.
z Apply lubricating oil to the inside of
oil seal and tighten the fixing bolts
in the zigzag method.
Torque 2.2 kg.m
3.3.10. Piston
z Line up the piston assembly in the
order of cylinders and fit the
bearings to the connecting rods
and bearing caps. However, take
care not to swap between the
connecting rods and bearing caps.
Oil ring
2nd ring
Top ring
Piston pin
View of piston top
To Next Page
