DV11
Operation and Maintenance
54
Engine Disassembly
Printed in Mar. 2005 PS-MMA0608-E1A
3. Disassembly and Reassembly of Major Components
3.1. Engine Disassembly
3.1.1. General precautions
z For the various tool storage before disassembly and parts storage after
disassembly, the shelf for parts is prepared.
z At the time of disassembly and reassembly, do the work with the naked and clean
hand, and also the working place must be maintained clean.
z The torn parts after disassembly must be kept not to collision each other.
z In disassembling, torn parts should be laid in disassembled order.
z Before performing service operation, disconnect the grounding cable from the
battery for reducing the chance of cable damage and burning due to short-
circuiting.
3.1.2. Cooling water

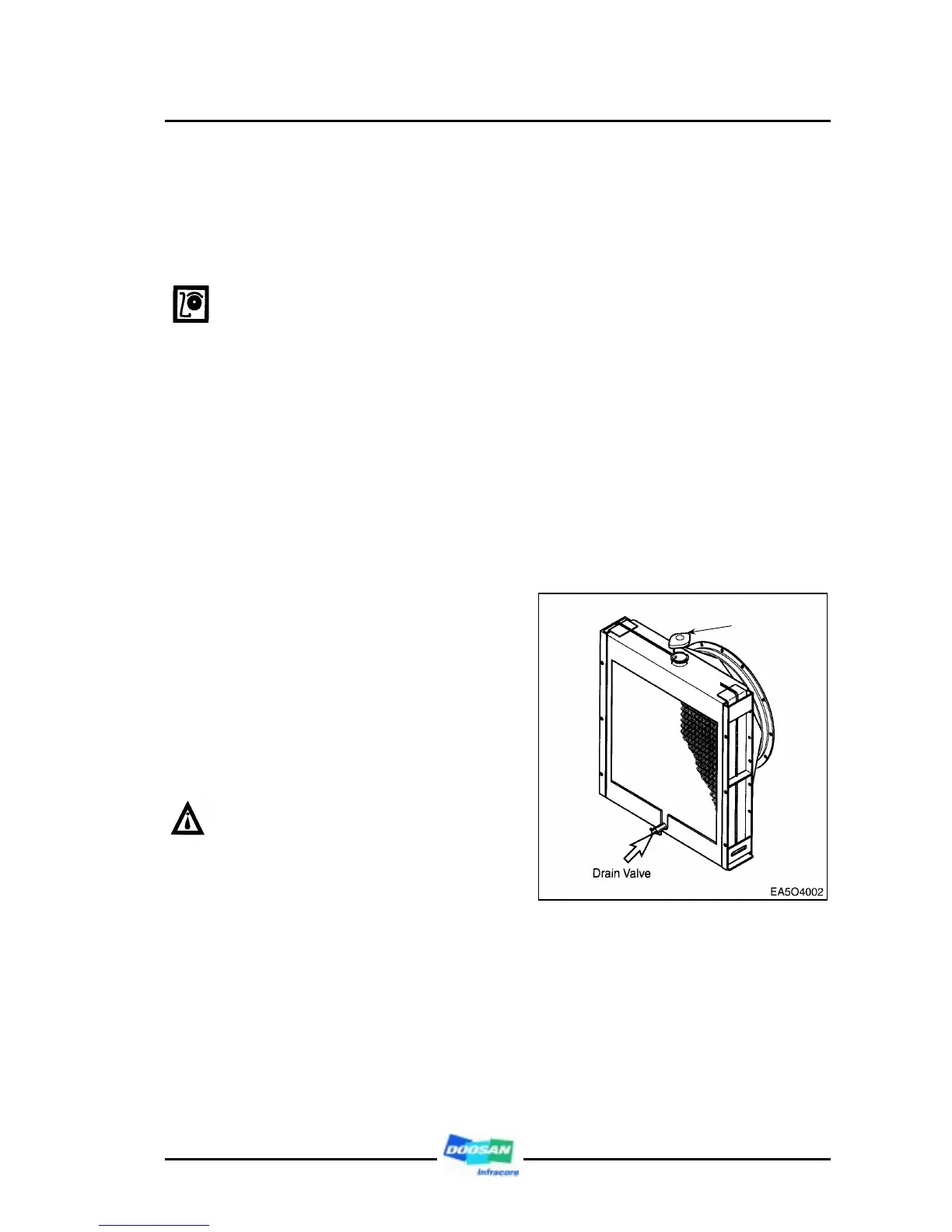

z Remove the radiator cap. Open the
drain valve at the radiator lower
part to drain the coolant as the
right figure.
CAUTION:
When removing radiator filler cap
while the engine is still hot, cover
the cap with a rag, then turn it
slowly to release the internal
steam pressure. This will prevent
a person from scalding with hot
steam spouted out from the filler
port.
Radiator cap
