DV11
Operation and Maintenance
40
Technical Information
Printed in Mar. 2005 PS-MMA0608-E1A

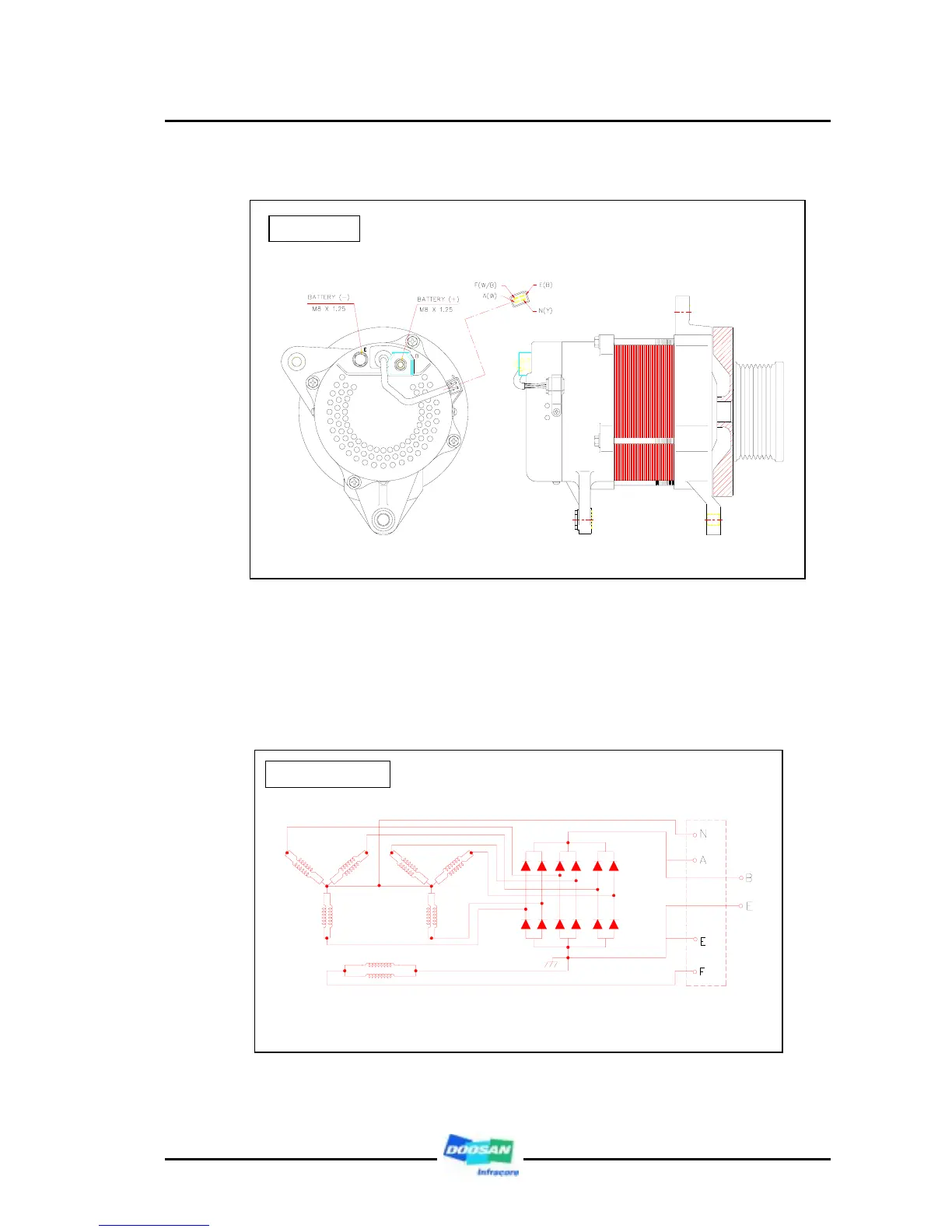

b) Alternator (24Vx150A)
z Regulator connector
- N terminal : cut off the charging lamp with detect the voltage by regulator.
- A terminal : switching the regulator on sensing the output voltage.
- E terminal : Regulator earth terminal (-)
- F terminal : supply the amperage on the rotor coil.
24V x 150A
Regulator connector: AMP 250
Wiring Diagram
To Next Page
