DV11
Operation and Maintenance
93
Engine Reassembly
Printed in Mar. 2005 PS-MMA0608-E1A

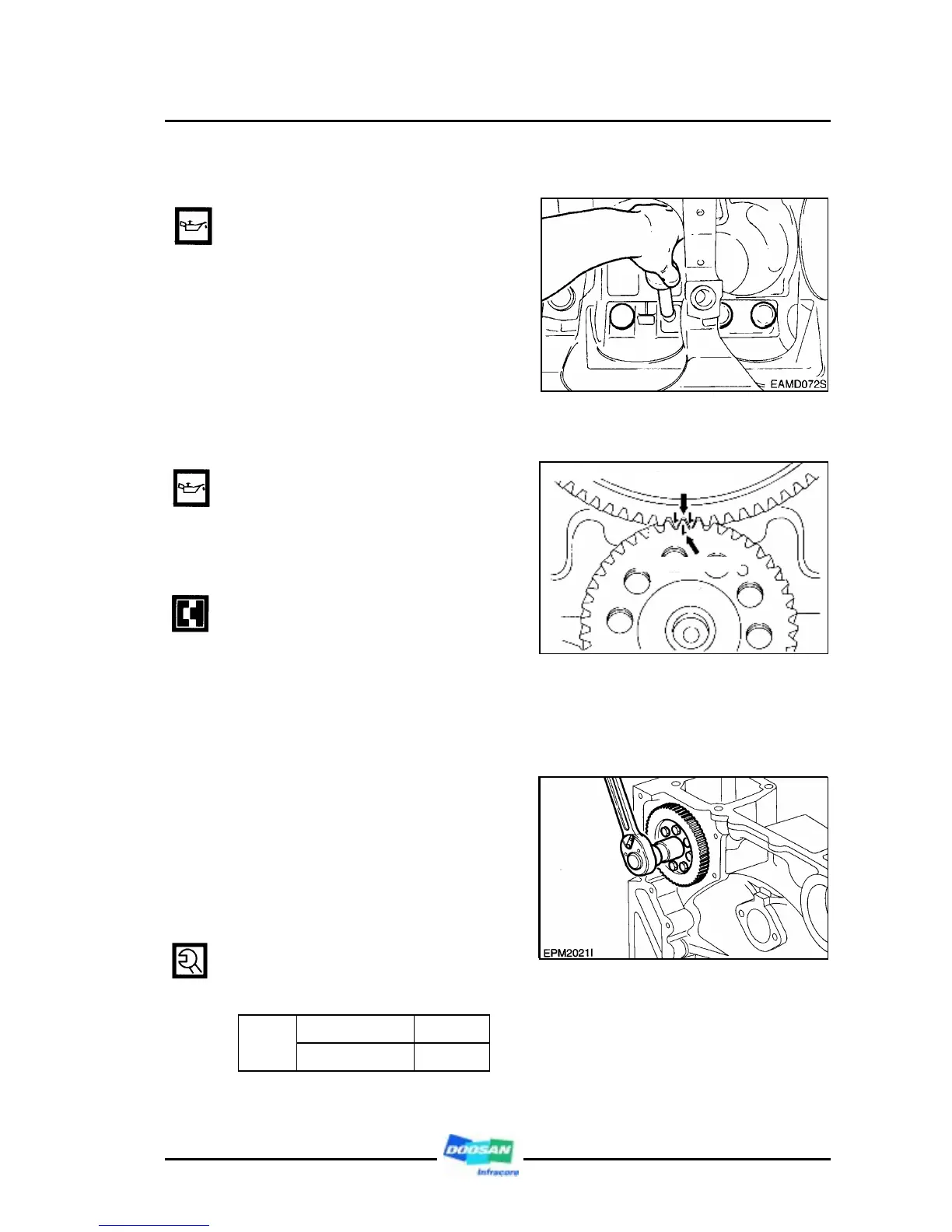

3.3.5. Tappet
z Coat the tappet wholly clean oil and
push in the tappet hole of the
cylinder block.
3.3.6..Cam shaft
z Coat the cam bush of cylinder
block and camshaft with engine oil.
z Assemble the cam bush and
camshaft for them not to be
damaged.
z Assemble the crankshaft gear and
the camshaft gear making sure that
the gear marks on both gears are
aligned together.
3.3.7. Flywheel housing
z Assemble the following parts in the
flywheel housing before installing
the flywheel housing onto the
cylinder block.
z Assemble the air compressor
crankshaft with the drive gear.
z Apply loctite to the fixing bolt and
assemble the thrust washer.
Air compressor
gear
36 kg.m
Tor que
Thrust washer
fixing bolt
4 kg.m
Camshaft gear
Crankshaft gear
