2.3.27. Starting motor
z The sliding-gear starter motor is flanged to the rear of the flywheel housing on the
left-hand side. As parts of every engine overhaul, the starter pinion and ring gear
should be cleaned with a brush dipped in fuel and then a coat of grease should
be applied again.
Always protect starter motor against moisture.
IMPORTANT:
Always disconnect the battery earth cable before starting work on the
electrical system. Connect up the earth cable last, as there is otherwise a risk
of short-circuit.

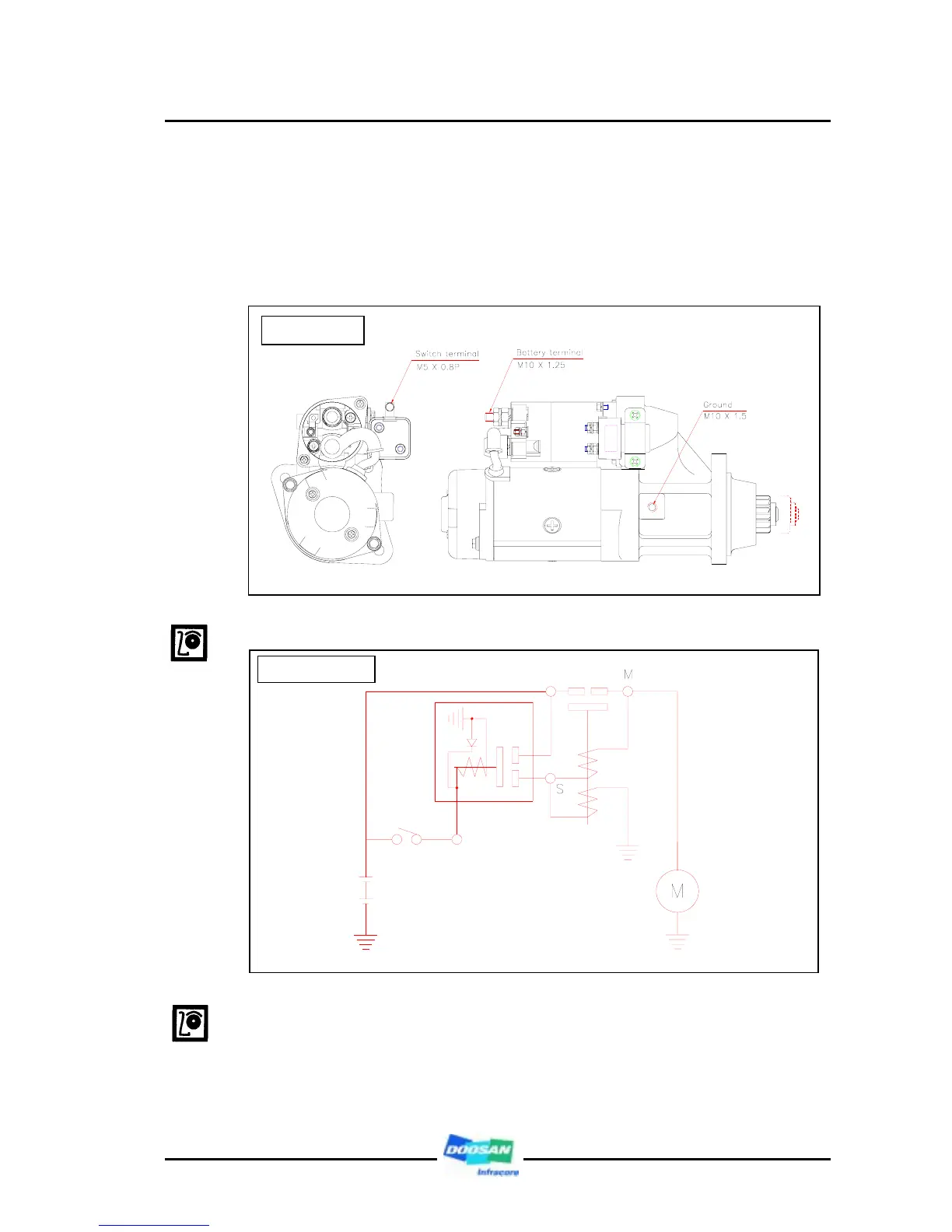

24V x 6.0kW
Circuit diagram
Key switch
Starter
Battery
Battery terminal
Assistance
switch
To Next Page
