DV11
Operation and Maintenance
55
Engine Disassembly
Printed in Mar. 2005 PS-MMA0608-E1A

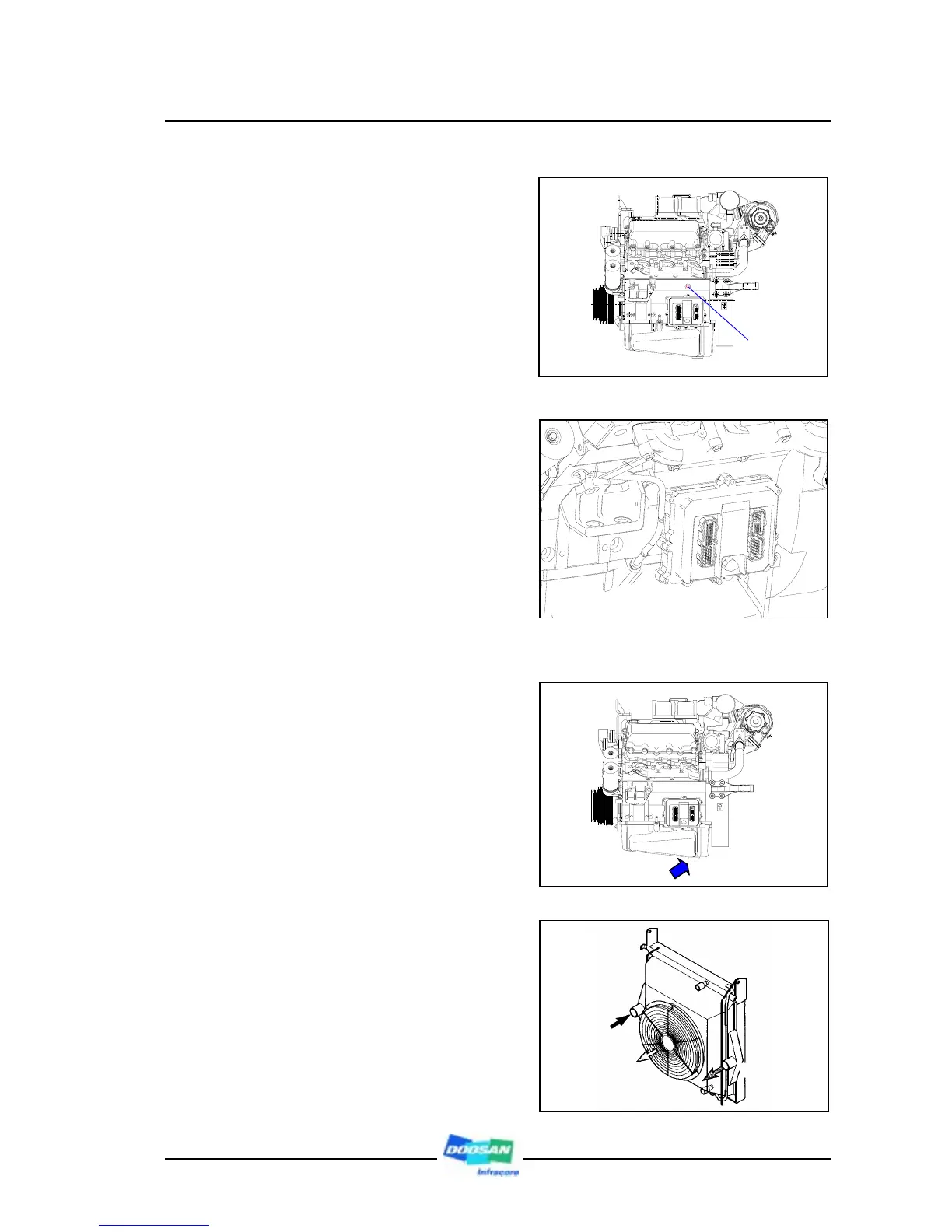

z Remove the cooling water drain
plug from the cylinder block and oil
cooler, various pipes, etc. and let
the cooling water discharge into
the prepared vessel.
3.1.3. Oil level gauge
z Take out the oil level gauge from
the guide tube.
3.1.4. Engine oil
z Remove an oil drain plug from the
oil pan, and let engine oil discharge
into the prepared vessel
3.1.5. Inter cooler
z Tear down the various hoses and
air pipes from the inter cooler.
z Remove the intercooler fixing bolts
and tear it down.
Cooling
water drain
Drain plug
To Next Page
