DV11
Operation and Maintenance
188
Maintenance of Major Components
Printed in Mar. 2005 PS-MMA0608-E1A

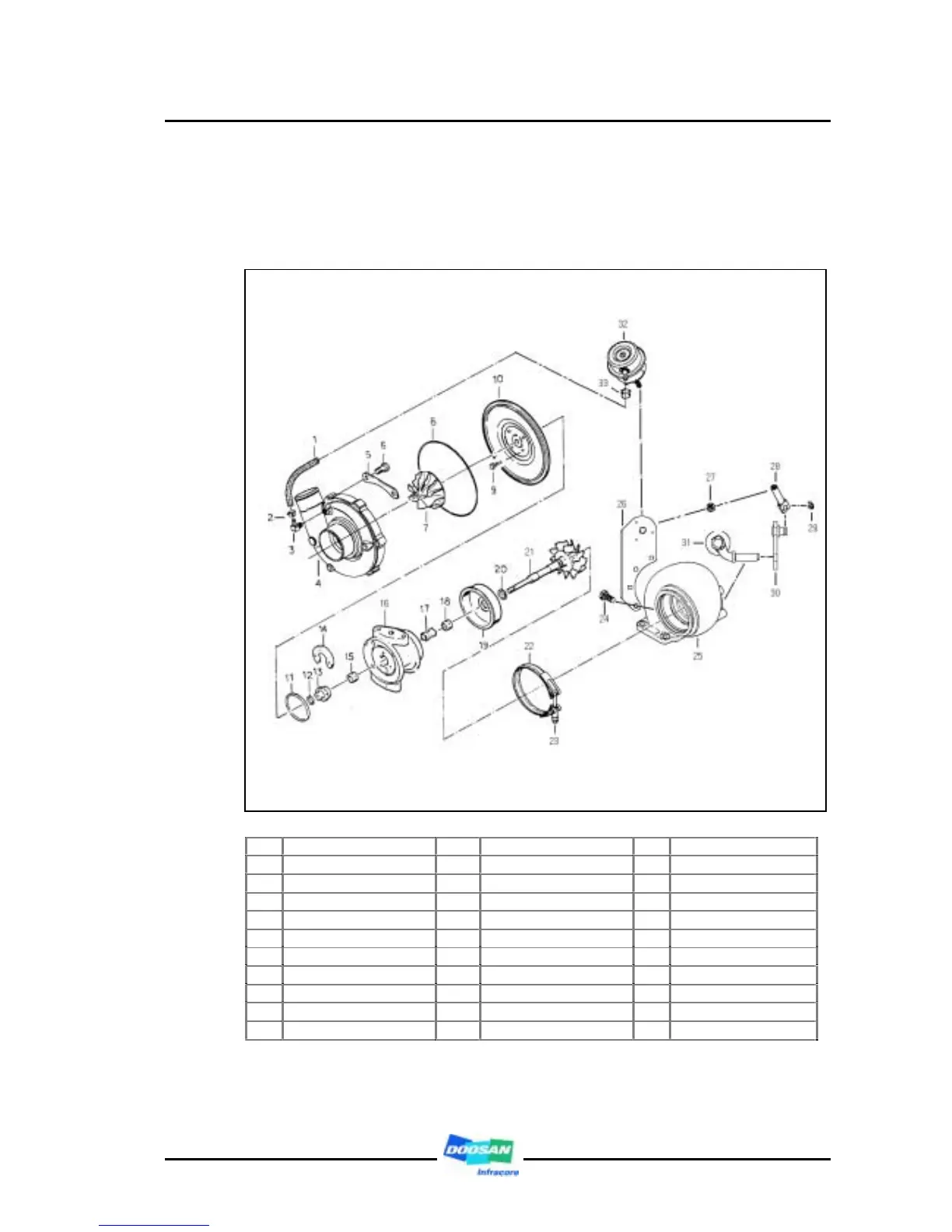

4) Components of turbocharger
z Make sure that servicing should be performed at the professional maintenance
shop as authorized by Honeywell Company.
1 Hose 12 Piston ring 23 Hex nut
2 Hose clamp 13 Thrust collar 24 Hex bolt
3 Connector 14 Thrust bearing 25 Turbine housing
4 Compressor housing 15 Journal bearing 26 Actuator bracket
5 Clamp, compressor 16 Center housing 27 Hex bolt
6 Hex bolt 17 Bearing spacer 28 Rod
7 Compressor wheel 18 Journal bearing 29 Retaining ring
8 O - ring 19 Shroud wheel 30 Crank ass’y
9 Hex bolt 20 Piston ring 31 Arm valve ass’y
10 Back plate 21 Turbine wheel ass’y 32 Actuator
11 Seal ring 22 V - clamp 33 Hose clamp
