DV11
Operation and Maintenance
112
Engine Reassembly
Printed in Mar. 2005 PS-MMA0608-E1A

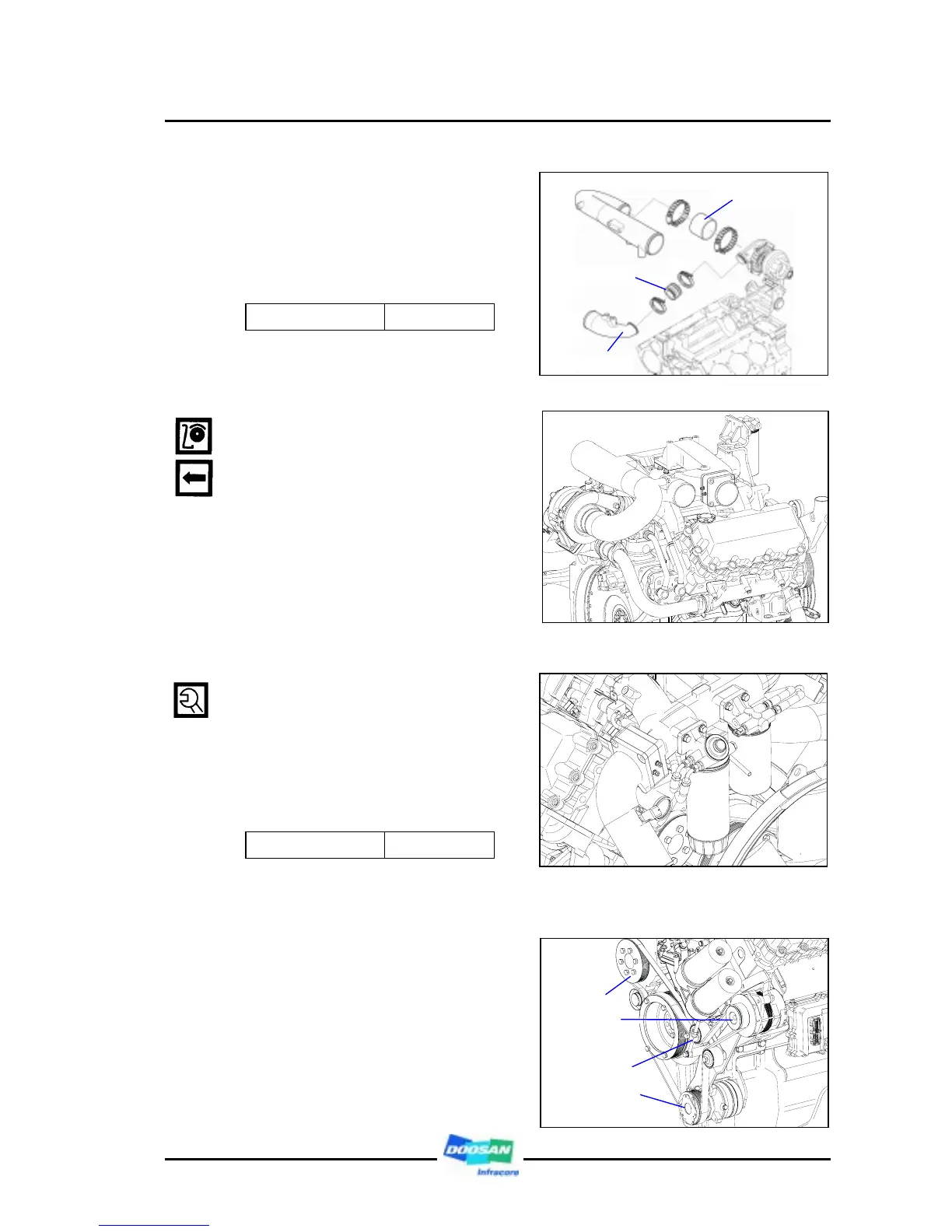

z Install the air pipe, then connect
the rubber hose into the
turbocharger and assemble with
clamping.
Torque (*mark) 2.2 kg.m
z Take care for the direction of
assembly when install the air
heater.
3.3.38. Fuel filter
z Assemble the fuel filter with the
intake manifold.
z Assemble the fuel filter after fill the
fuel into inside of the cartridge
when replace the new fuel filter.
Torque 2.2 kg.m
3.3.39. Alternator & belt
z Install the alternator bracket and
auto tensioner bracket to the
cylinder block, then tighten the
fixing bolts.
z Install the alternator, idle pulley and
auto tensioner.
Air pipe
Rubber hose
*
*
Rubber hose
Water pump
Alternato
To Next Page
