Doosan DV11 - Engine Assembly

DV11
Operation and Maintenance
16
Safety regulations & specifications
Printed in Mar. 2005 PS-MMA0608-E1A
1.5.3.
Engine assembly (Bus engine)

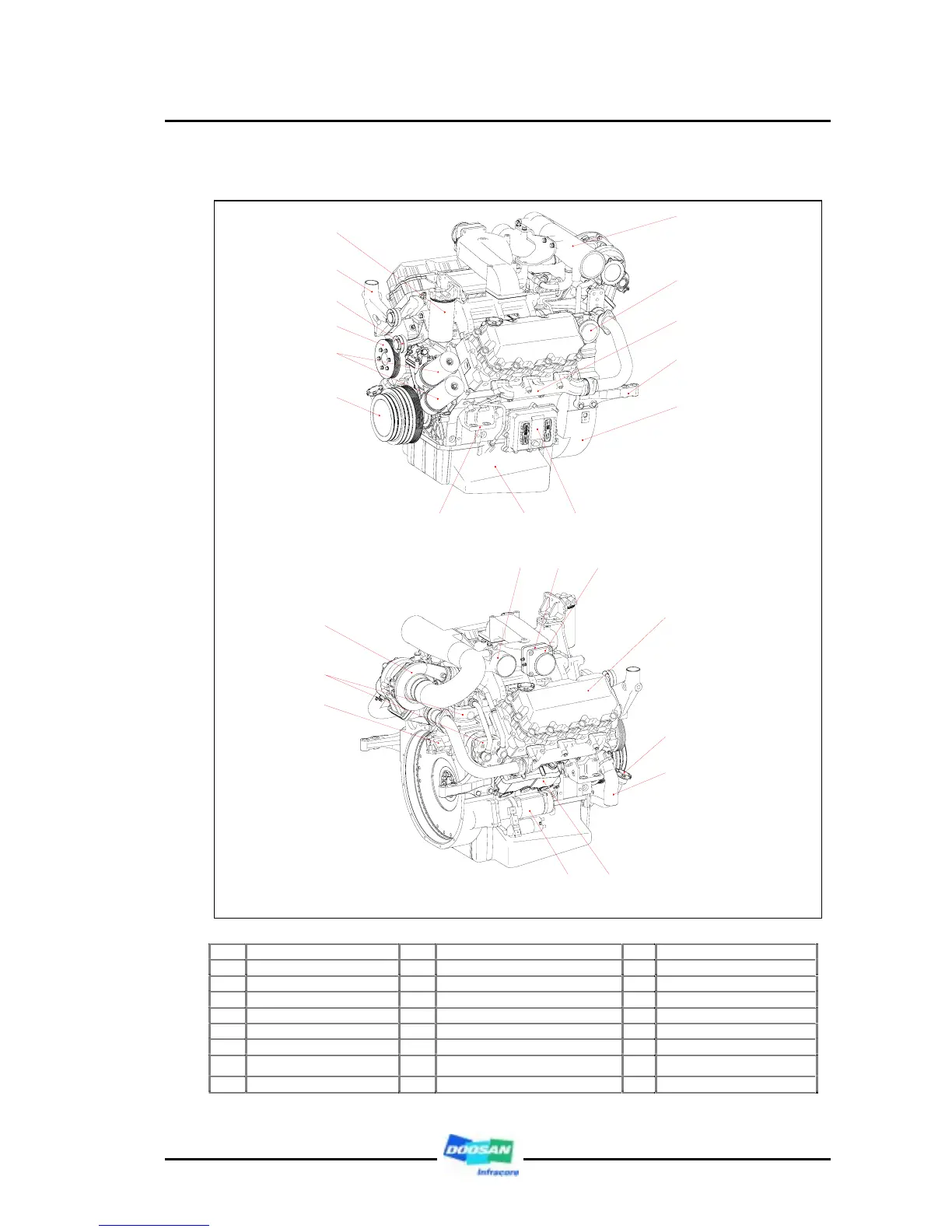

1 Crank shaft pulley 9 Exhaust manifold 18 Air pipe
2 Oil filter 10 Mounting bracket (rear)
( turbocharger to intercooler
3 Water pump pulley 11 Flywheel housing 19 Air heater
4 Idle pulley 12 Mounting bracket (front) 20 Air pipe
5 Water outlet 13 Oil pan 21 Cylinder head cover
6 Fuel filter 14 Electric control unit (ECU) 22 Oil filler cap
7 Air pipe 15 Power steering pump 23 Water inlet
(Air cleaner to turbocharger)
16 Air compressor 24 Starting motor
8 Breather 17 Turbocharger 25 Oil cooler
15
16
6
17
111
18 19 20
21
22
23
2524
12 13 14
11
10
9
8
6
5
4
3
2
1
7
