Measurement and Inspection of Major Parts
Printed in Mar. 2005 PS-MMA0608-E1A

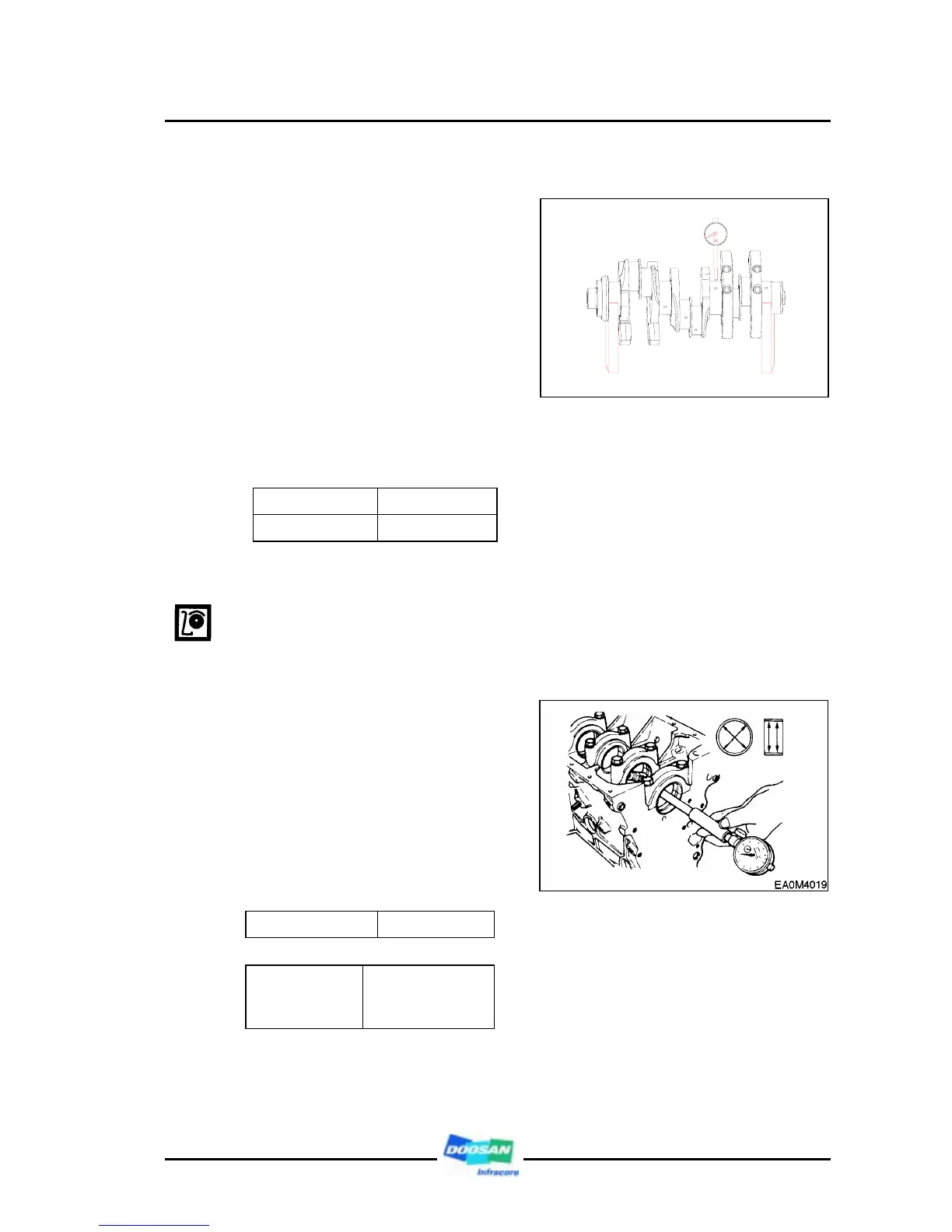

b) Run out of crankshaft
z Place the crankshaft on the V-
block.
z Turn the crankshaft with a dial
Indicator on the surface plate
and measure the run out of
crankshaft, replace or correct
the camshaft bearing if the
measured value is beyond the
limit.
< Run out of crankshaft >
Standard Limit
0.04 mm 0.2 mm
2) Crankshaft bearing and connecting rod bearing
Inspect the crankshaft bearing and connecting rod bearing for any damages such
as lopsided wear, scratch etc. and if abnormal, replace it.
a) Oil clearance of crankshaft and bearing
z Assemble the main bearing at
the cylinder block and after
tightening the bearing cap at the
specified torque, measure the
inside diameter of bearing
Torque 30 kg.m + 90
O
Journal bearing
nominal diameter
φ103.98 ∼ φ104.00 mm
