DV11
Operation and Maintenance
92
Engine Reassembly
Printed in Mar. 2005 PS-MMA0608-E1A

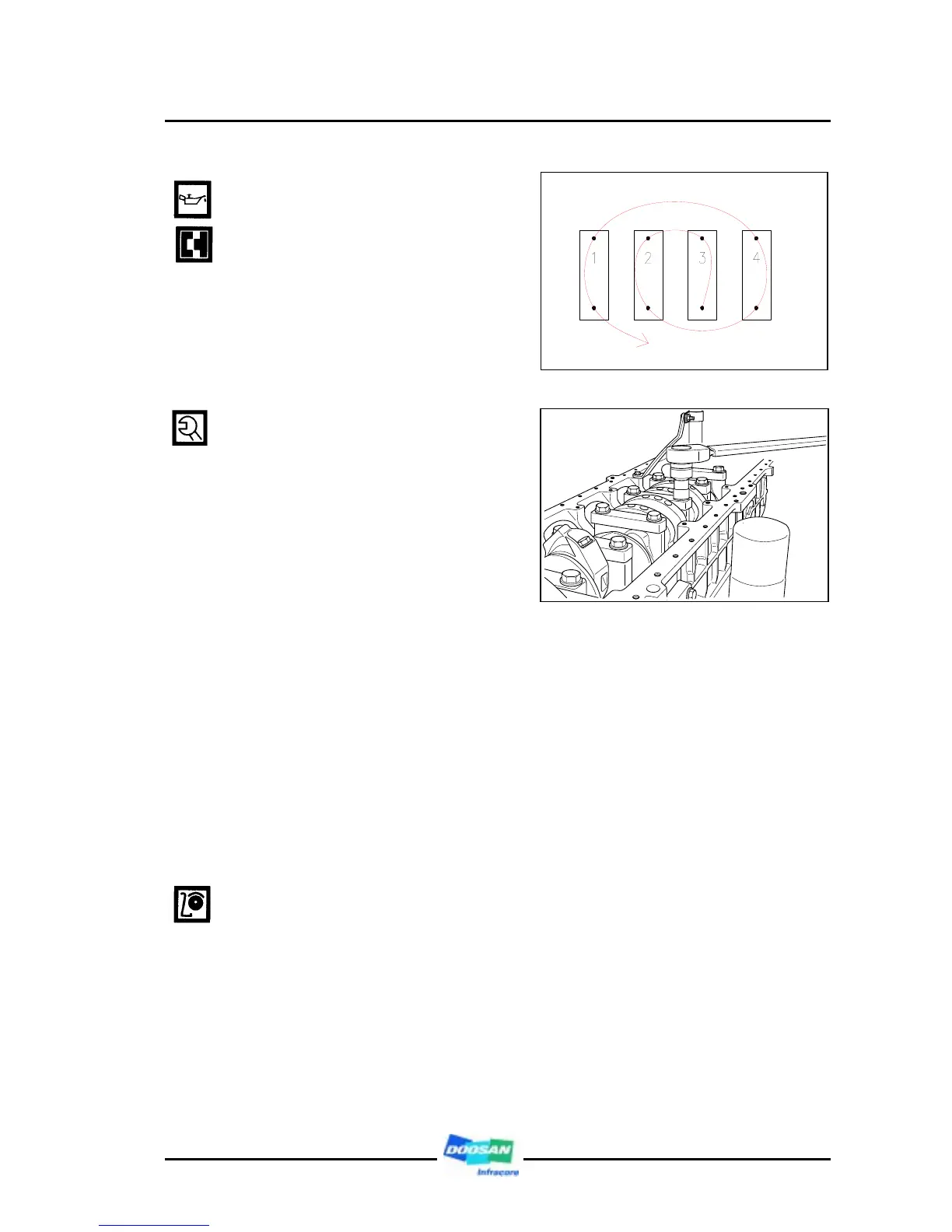

z Coat the crankshaft journal and pin
parts with engine oil, and after
fitting the main bearing into the
bearing cap and assemble it to the
cylinder block making sure of the
number in order not to change the
bearing cap.
z Coat the bearing cap bolt and its
bolt seat part with engine oil
necessarily and according to the
tightening order, tighten them with
30 kg.m and with rotating angle
method (90° +10°) and tightening
order is as follows.
< Bearing cap bolt’s tightening order >
(1) First step : Coat the bolts with engine oil.
(2) Second step: Screw down 1 ～ 2 threads.
(3) Third step : Tighten with about 15 kg.m by wrench.
(4) Fourth step : Tighten with about 25kg.m by torque wrench.
(5) Fifth step : Tighten with 30kg.m by torque wrench.
(6) Sixth step : Tighten with final rotating angle method 90° +10°.
However, according to above tightening order, tighten step by step
z Inspect if the crankshaft's rotation
is smooth.
z Assemble the crankshaft gear on
the crankshaft and coat a white
paint mark on "1" part in order to
find easily.
