DV11
Operation and Maintenance
62
Engine Disassembly
Printed in Mar. 2005 PS-MMA0608-E1A

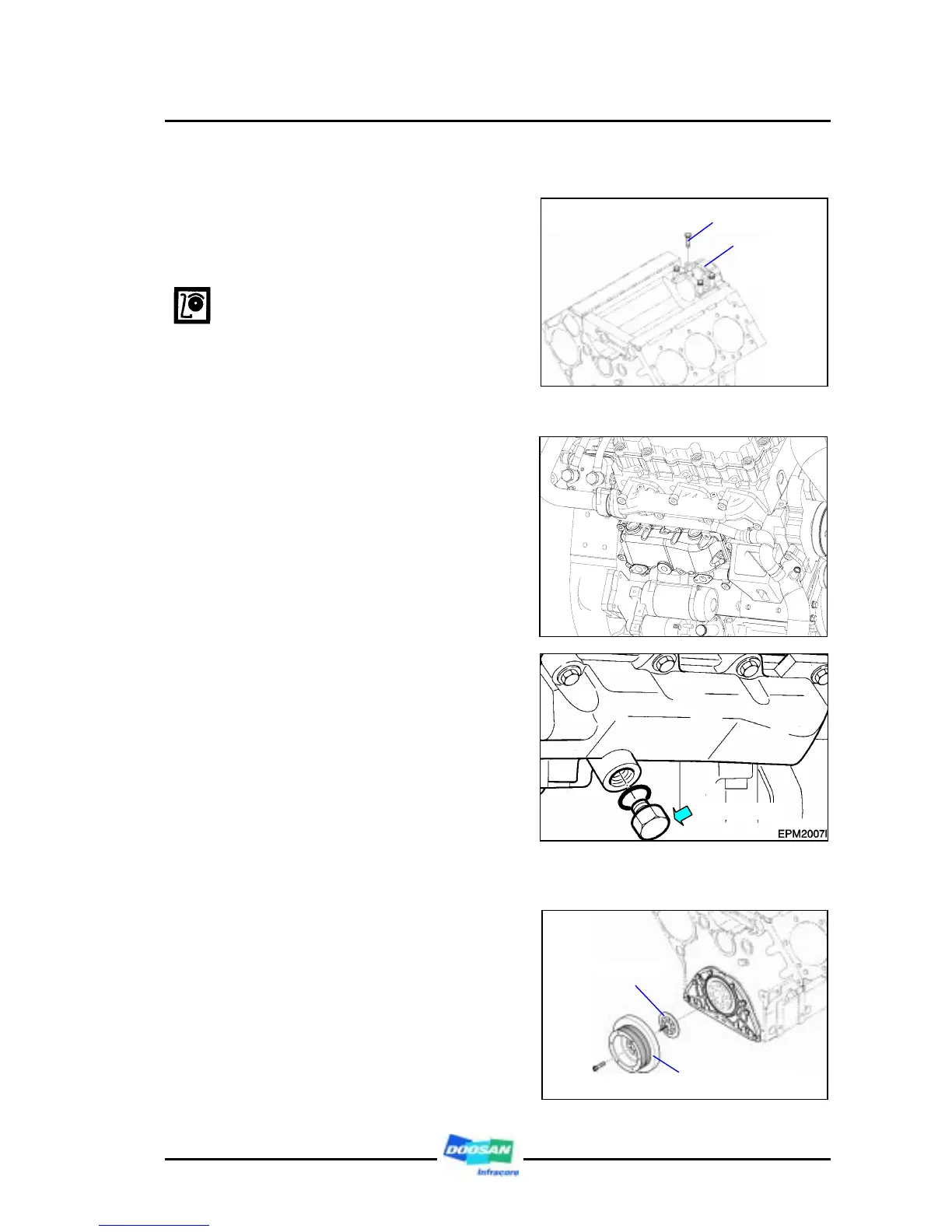

3.1.22. Fuel pump housing cover
z Remove the fuel pump housing
cover fixing bolts and take off the
fuel pump housing cover.
z Fuel pump housing cove and
cylinder block should be handled
as a set because they are tooled in
pairs.
3.1.23. Oil cooler
z Remove the drain plug from the oil
cooler cover and drain out the
cooling water.
z Remove the oil cooler cover fixing
bolts and disassemble the oil
cooler.
z Remove the oil cooler fixing bolts
and take off the oil cooler.
3.1.24. Vibration damper
z Remove the fixing bolts for
crankshaft pulley in reverse order
of assembling and disassemble the
crankshaft pulley and vibration
damper.
Drain plug
Fuel pump
housing
cover
Fixing bolt
Crank shaft pulley &
damper
Dust protect cove
To Next Page
