Measurement and Inspection of Major Parts
Printed in Mar. 2005 PS-MMA0608-E1A

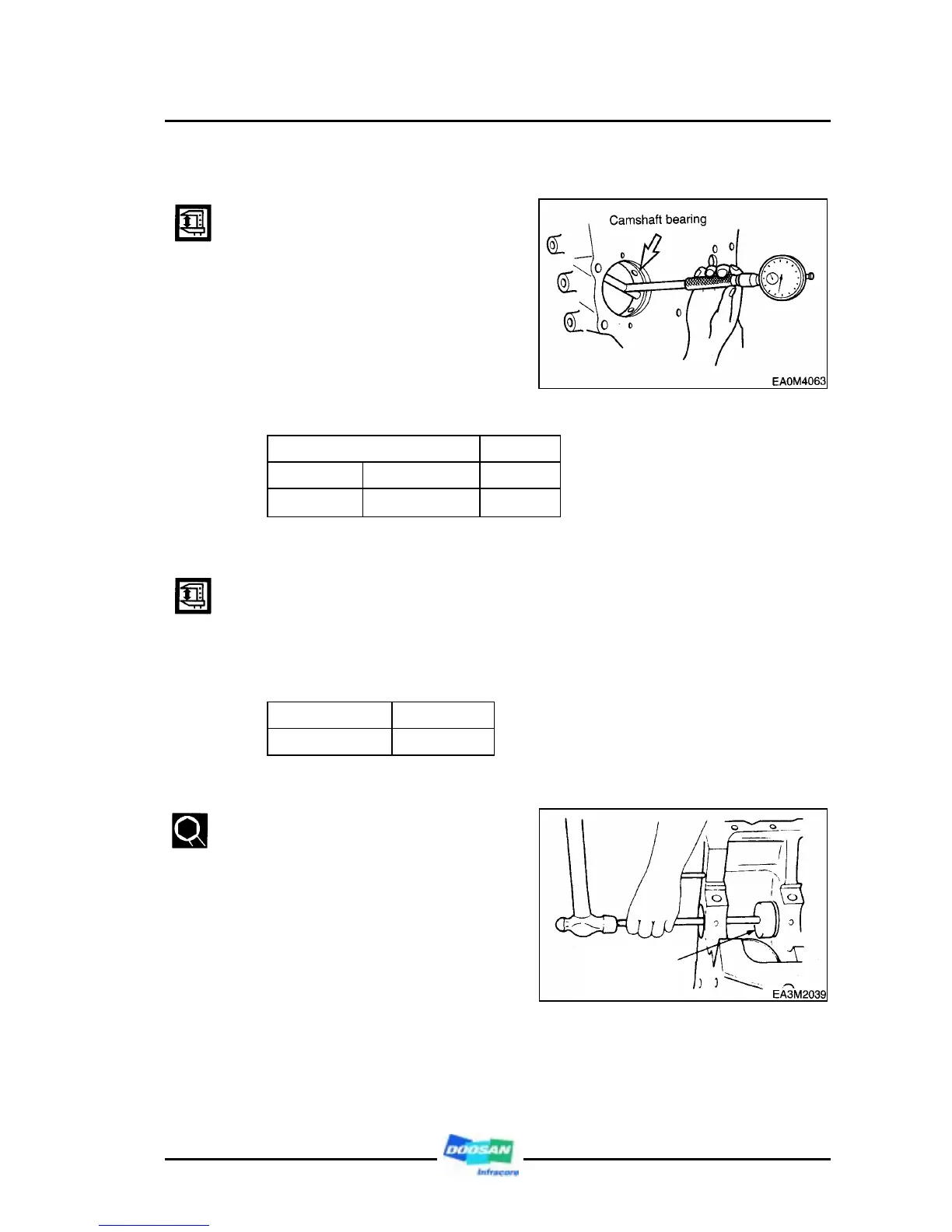

z Camshaft bearing diameter
Measure the camshaft bush
inside diameter with a cylinder
gauge.
< Cam bearing inside diameter>
Standard Limit
Thrust bush
φ70.07 ∼ φ70.09 mm
-
Cam bush inside
diameter
φ70.00 ∼ φ70.03 mm φ70.06 mm
z Clearance between camshaft journal and bush
Calculate the clearance by complying measured value of the camshaft
bearing inside diameter and journal bearing outside diameter. Replace the
camshaft bearing if the calculated value is beyond the specified limit.
<Clearance >
Standard limit
0.060 ∼ 0.120 mm
0.18 mm
z Camshaft bearing replacement
Use with the special tool for
replacement of bearing.
Disassembly
& assembly
tool
