4.6.4. Lubricating oil filter
z
Cleaning of the lubricating oil is effected
in a full-flow oil filter with paper
cartridges. A bypass valve ensures
continuity of oil supply if the filter
elements should be clogged.
z
After draining off the oil release tie
screw. Remove filter bowl. Renew filter
cartridge. Thoroughly clean all other
parts in cleaning fluid. Use new gaskets
for re-assembly.

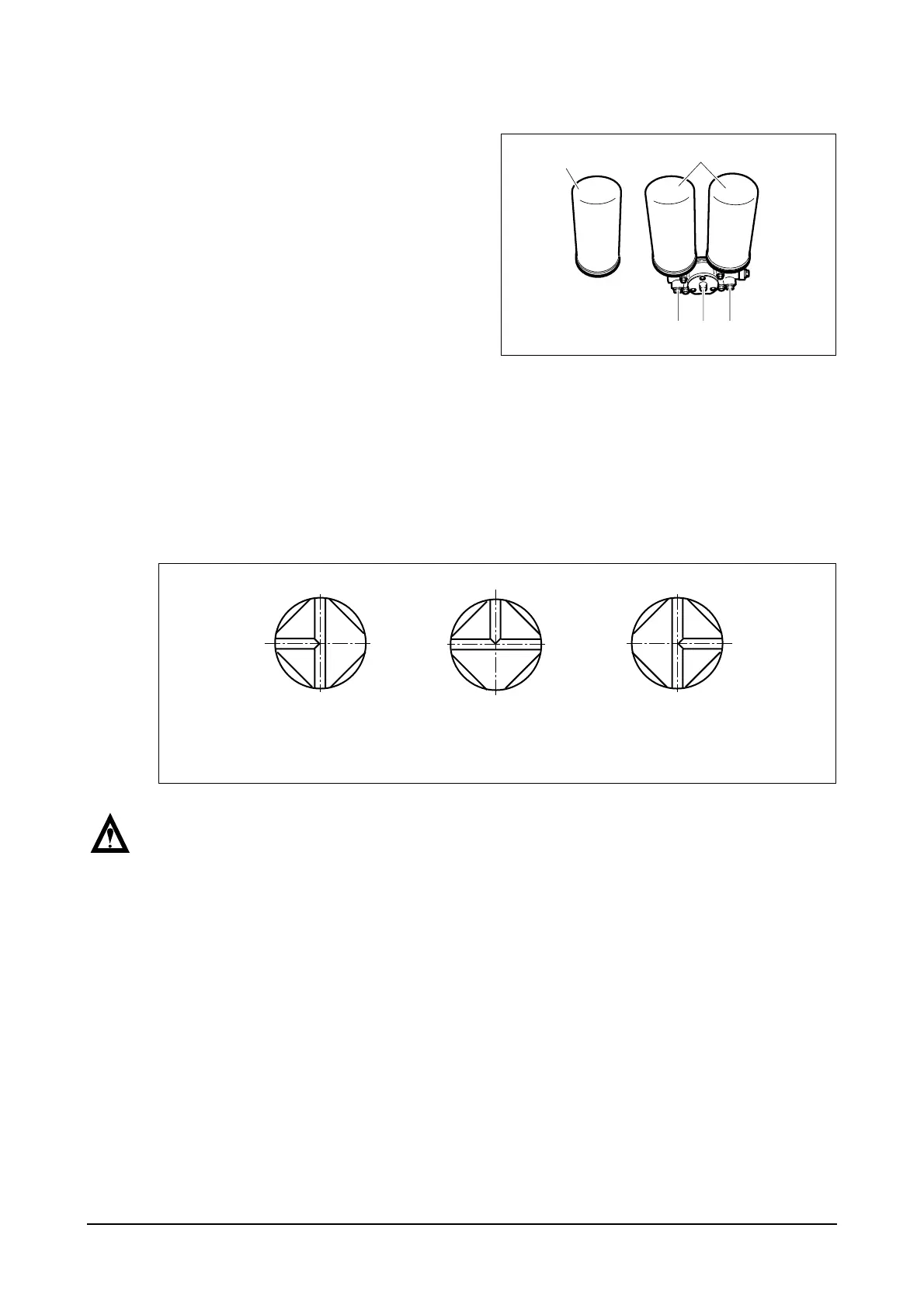

1. Oil filter(Change over-type)
2. Element
3. Oil drain plug
4. Selector cock
z
During continuous operation the selector lever that both filter halves are in operation.
z
Observe positions of selector level.
CAUTION :
Do not leave selector lever in any intermediate position because this would be liable
to interfere with oil supply.
EA6O5003
1
2
3
34
EA6O5004
Right-hand filter cut out Left-hand filter cut outContinuous operation
(both filter halves in
operation)
