Safety Regulations & Engine Specifications
- 12 -

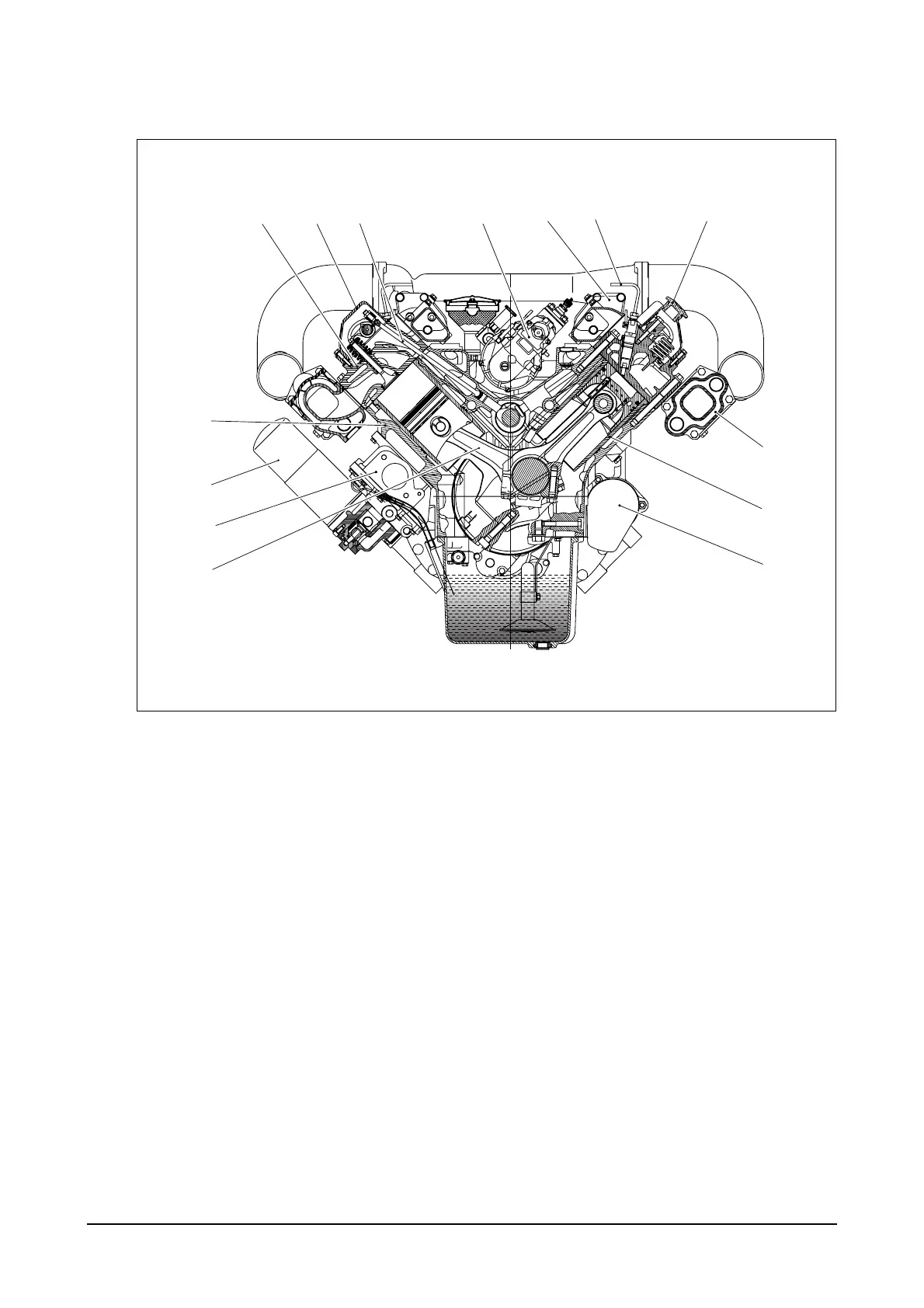

1.3.2. Engine sectional view (Cross)
1. Cylinder head 8. Cylinder block
2. Cylinder head cover 9. Oil filter
3. Push rod 10. Oil cooler
4. Injection pump 11. Connecting rod
5. Intake manifold 12. Exhaust manifold
6. Injection pipe 13. Cylinder liner
7. Oil filler cap 14. Starter
12
8
9
10
12
13
14
11
3
4
56 7
EA6O1005
