2.2.2. Engine block
z
The cylinder block is a single piece of alloy cast iron. To increase its stiffness, it is extended to a level
below the crankshaft center line. The engine has replaceable wet cylinder liners and individual
cylinder heads with strung-in valve seat rings and replaceable valve guides.
2.2.3. Piston / Connecting rod / Crank assembly
z
The forged crankshaft has screwed-on counterweights. Radial seals with replaceable wearing rings
on crankshaft and flywheel are provided to seal the crankcase penetrations.
z
The connecting rods are die-forged, diagonally split and can be removed through the top of the
cylinders together with the pistons. Crankshaft and connecting rods run in steel-backed lead bronze
ready-to fit type bearings.
2.2.4. Engine timing
z
Camshaft, oil pump and injection pump are driven by a gear train arranged at the flywheel end.
2.2.5. Valves
z
The overhead valves are actuated via chilled cast iron tappets, push rods and rocker arms from the
camshaft.
5
2
6
1
3
4

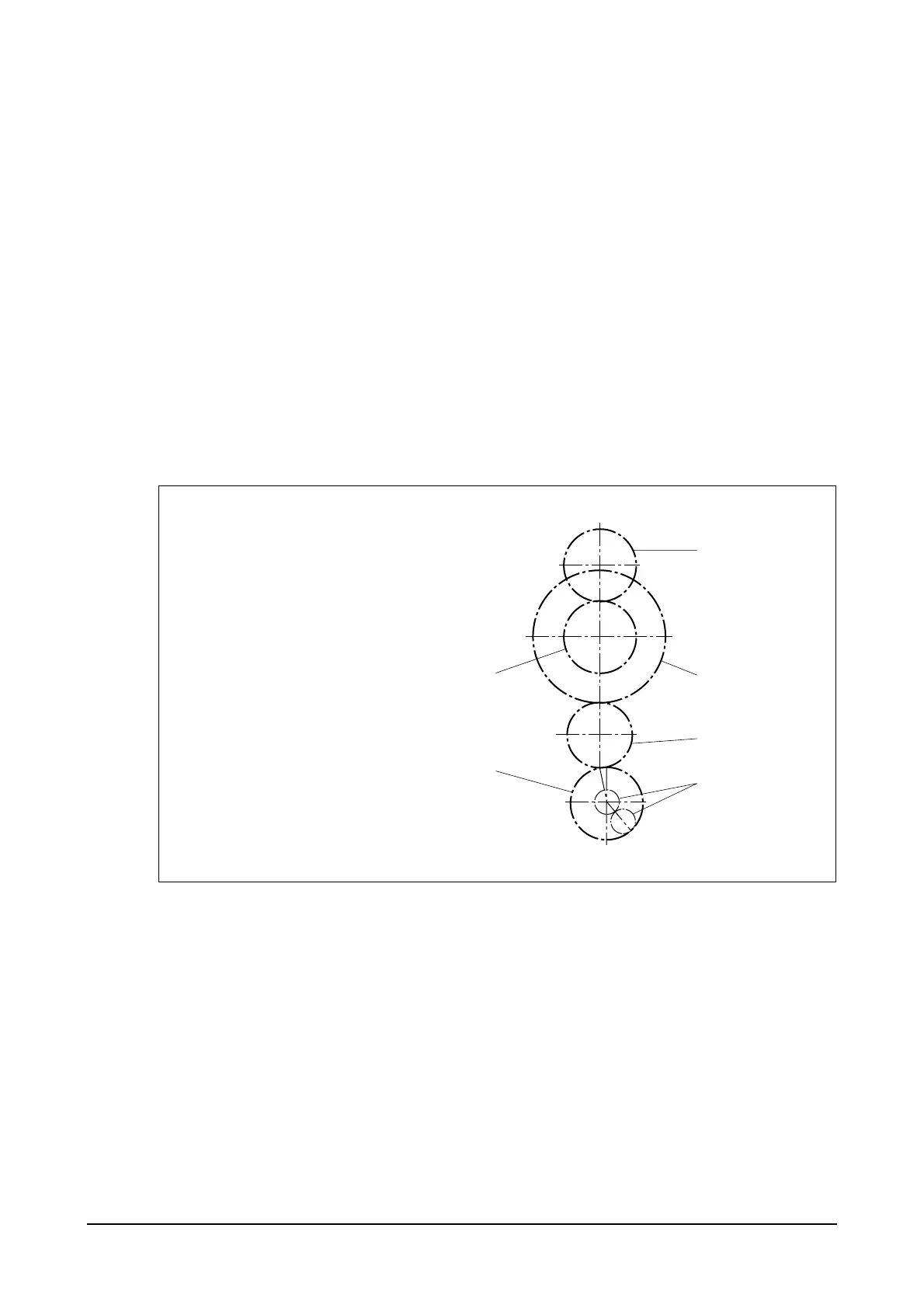

EA6O3001
1. Crankshaft gear
2. Oil pump drive gear
3. Oil pump impeller gears
4. Camshaft drive gear
5. Injection pump drive gear
