Engine Disassembly
- 54 -

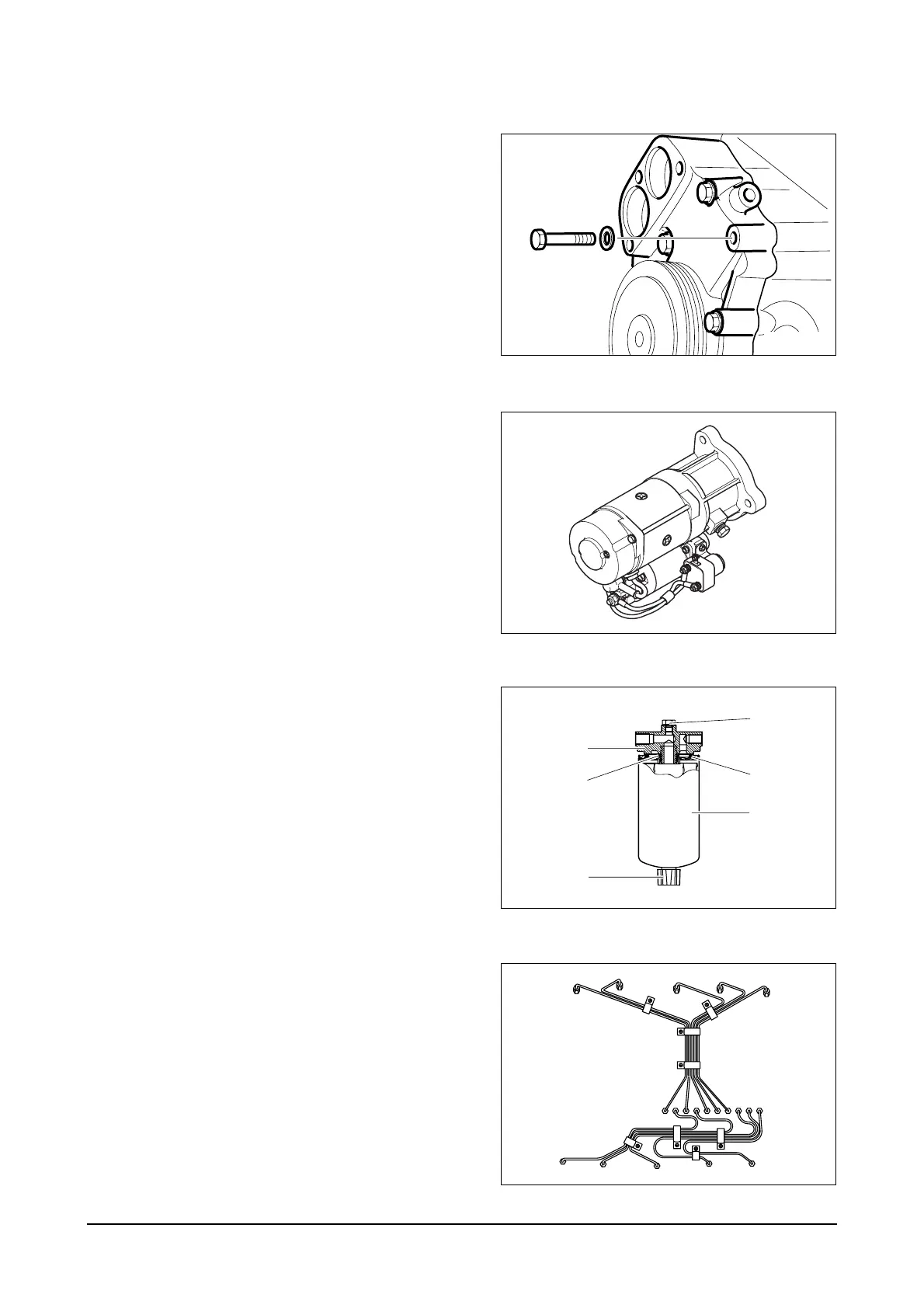

3.1.9. Cooling water pump
z
Loosen the various hose clamps for the
connections.
z
Remove the cooling water discharging
pipe and disassemble the thermostat.
z
Remove the cooling water pump fixing
bolts and disassemble the cooling water
pump.
3.1.10. Starting motor
z
Remove the starting motor fixing nuts
and disassemble the starting motor.
3.1.11. Fuel filter
z
Disassemble the fuel hose for the fuel
supply and suction.
z
Remove the fuel filter fixing bolts and
disassemble the filter.
3.1.12. Injection pipe
z
Disassemble various fuel pipe and
hose.
z
Disassemble the injection pipe from the
nozzle holder and fuel injection pump.
