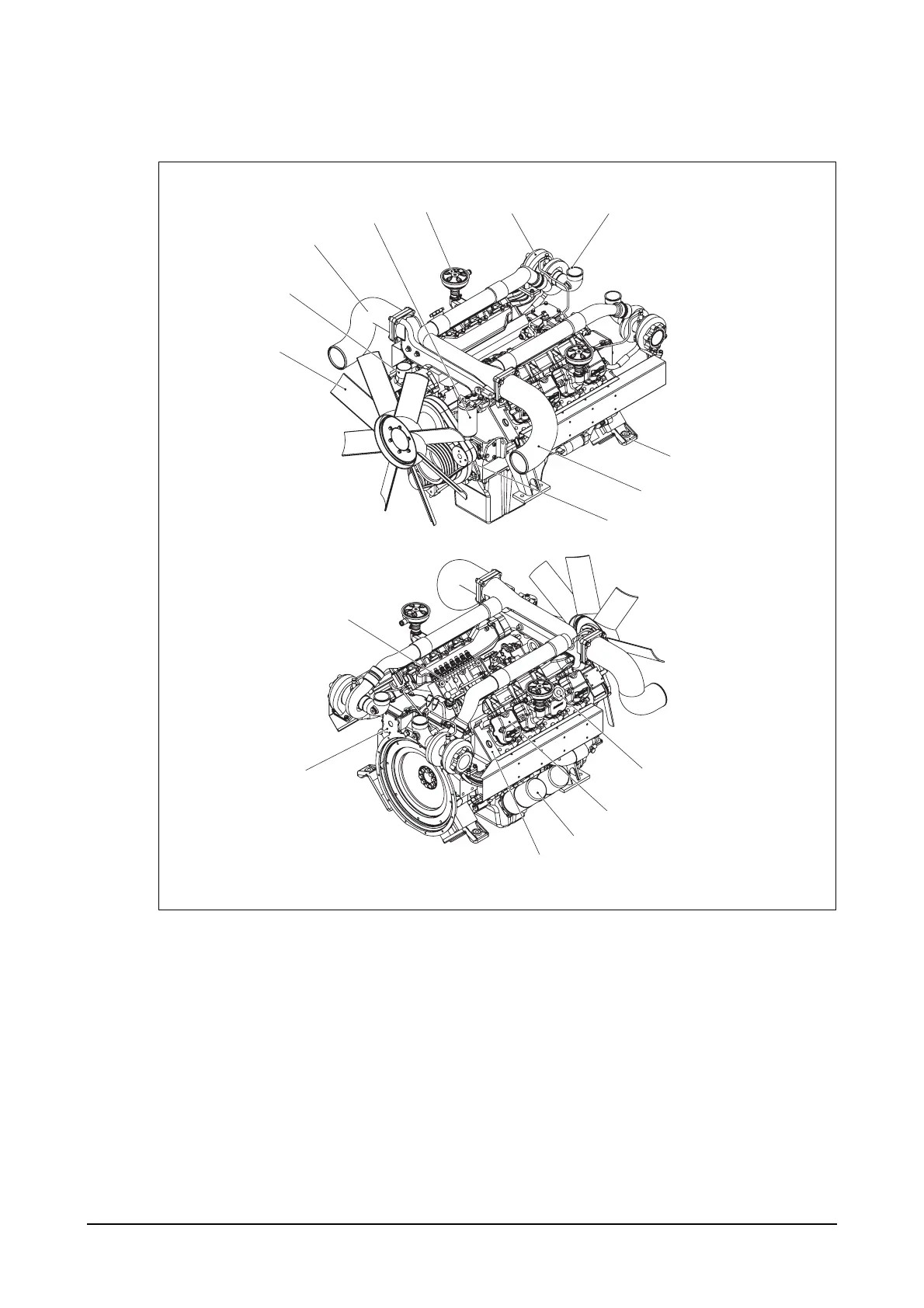

1.3.3. Engine assembly views
1) PU158TI : Power unit engine
1. Cooling fan 9. Air pipe
2. Water outlet (Turbocharger to inter cooler)
3. Air pipe 10. Idle pulley
(Intercooler to intake manifold) 11. Injection pump
4. Fuel filter 12. Fly wheel housing
5. Breather 13. Cylinder head
6. Turbo charger 14. Oil filter
7. Air pipe 15. Cylinder head cover
(
Air cleaner to turbocharger)
16. Oil filler cap
8. Mounting bracket
1
2
3
4
5
67
8
9
10
15
14
13
12
11
16
EH5OM004
