Engine Disassembly
- 55 -

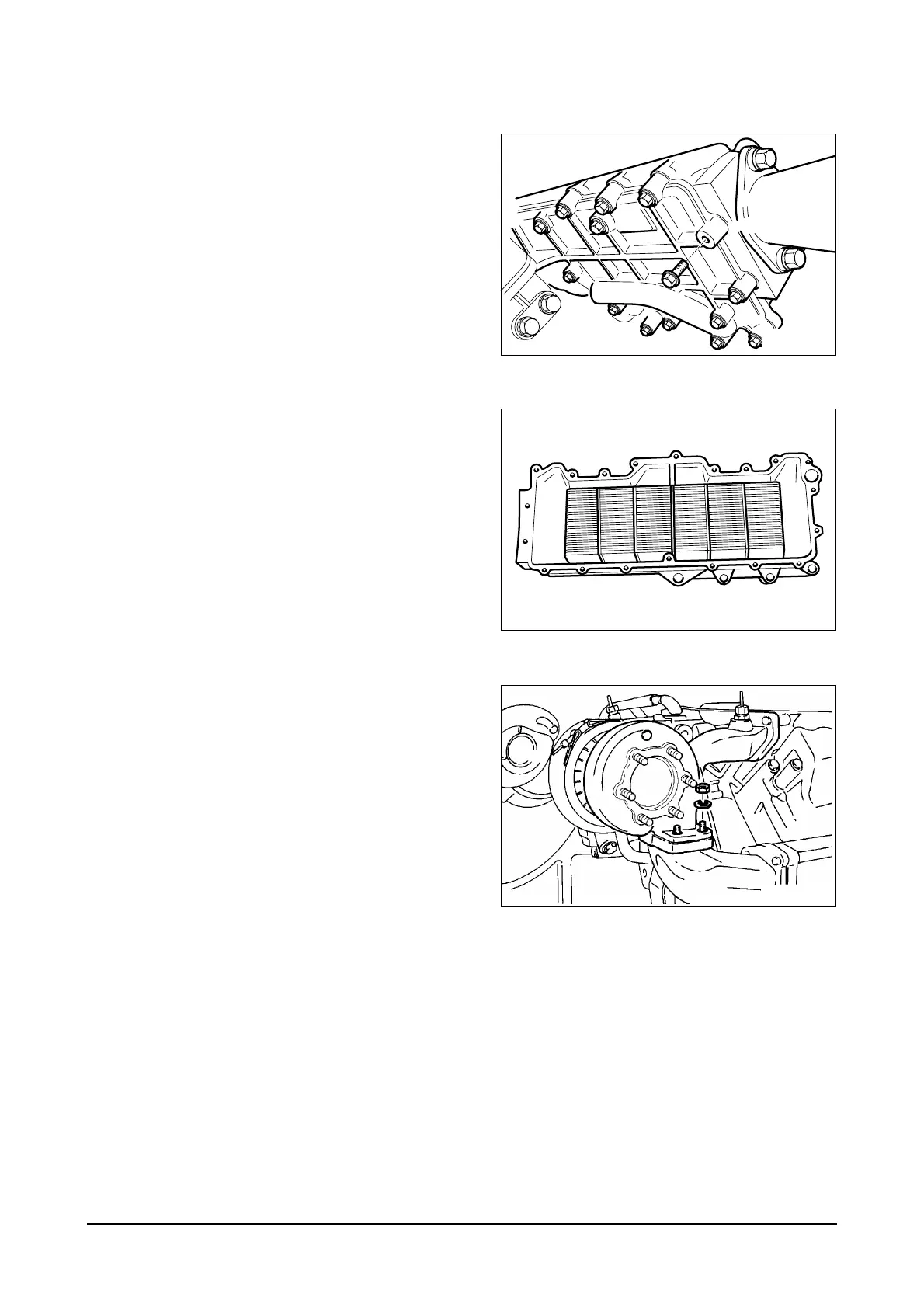

3.1.13. Oil cooler assembly
z
By removing the plug screw of cooling
water discharge port, the cooling water
is discharged.
z
Remove the oil cooler cover fixing bolts
and disassemble the oil cooler.
z
By removing the cooler housing fixing
bolts and disassemble the oil cooler
housing from the cylinder block.
3.1.14. Turbo charger
z
Loosen the hose clamp for connecting
the intake stake and tear down the air
intake stake.
z
Loosen the clamp for connecting the air
intake manifold.
z
Remove the hollow screws of pipes for
turbocharger lubrication and its
discharge, and tear the pipes down.
z
Remove the turbocharger fixing nuts
and separate the turbocharger from the
exhaust manifold.
