1.3. Engine Assembly

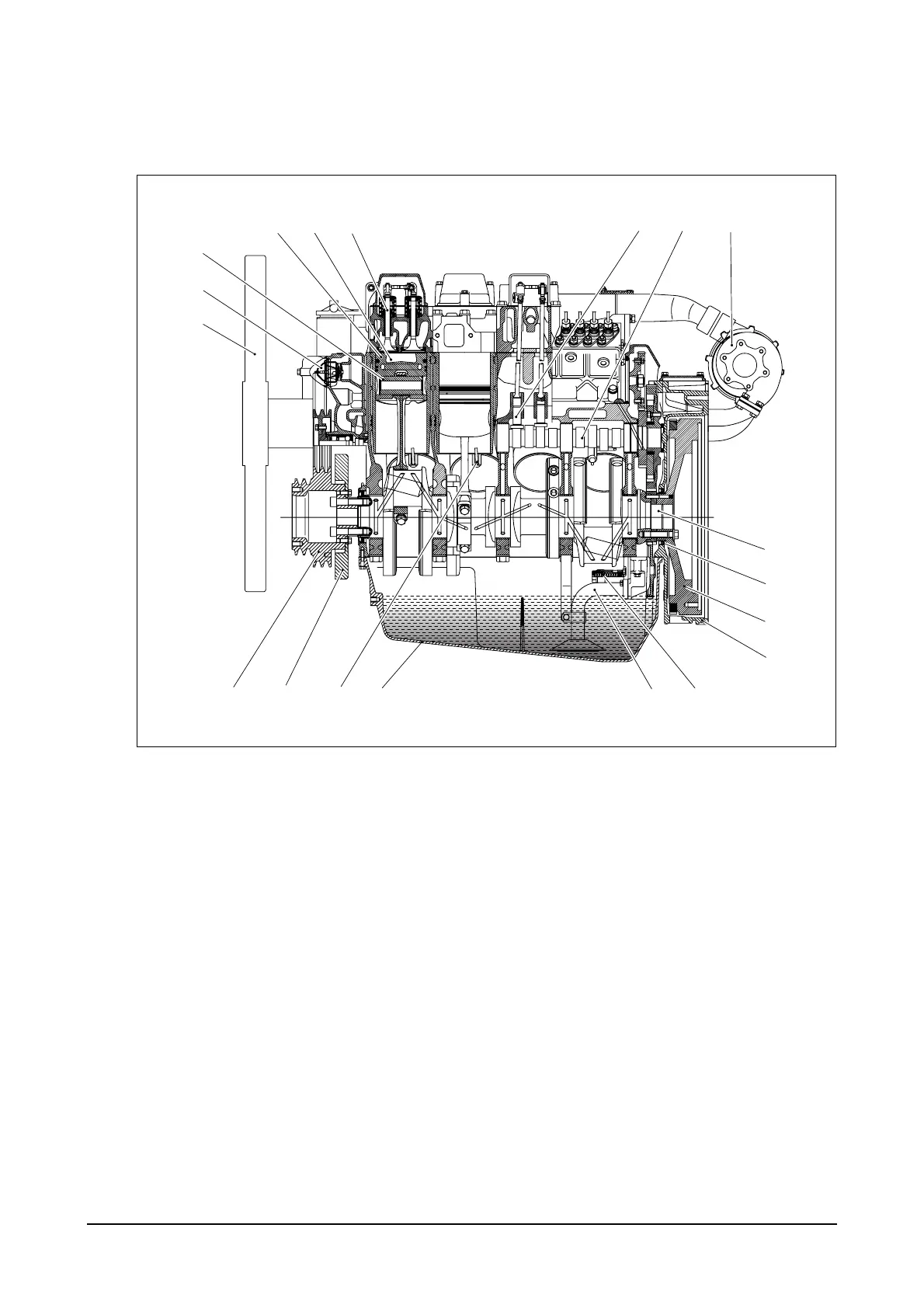

1.3.1. Engine sectional view (Longitudinal)
1. Piston 11. Vibration damper
2. Combustion camper 12. Oil spray nozzle
3. Valve 13. Oil pan
4. Tappet 14. Oil suction pipe
5. Cam shaft 15. Oil pump relief valve
6. Turbocharger 16. Flywheel housing
7. Piston pin 17. Flywheel
8. Thermostat 18. Oil seal
9. Cooling fan 19. Crank shaft
10. Crank shaft pulley
9
8
7
12 3
45 6
12 13
14 15
16
17
18
19
1110
EA6O1004
