Technical Information
- 22 -
2.2.6. Engine lubrication
z
The engine is equipped with force-feed lubrication.
The pressure is produced by a gear pump whose drive gear is in direct mesh with the crankshaft
gear at the flywheel end.
z
The oil pump draws the oil from the oil sump and delivers it through the oil cooler and oil filter to the
main distributor gallery and from there to the main bearings, big-end bearings and camshaft bearings
as well as to the small-end bearings and the rocker arms.

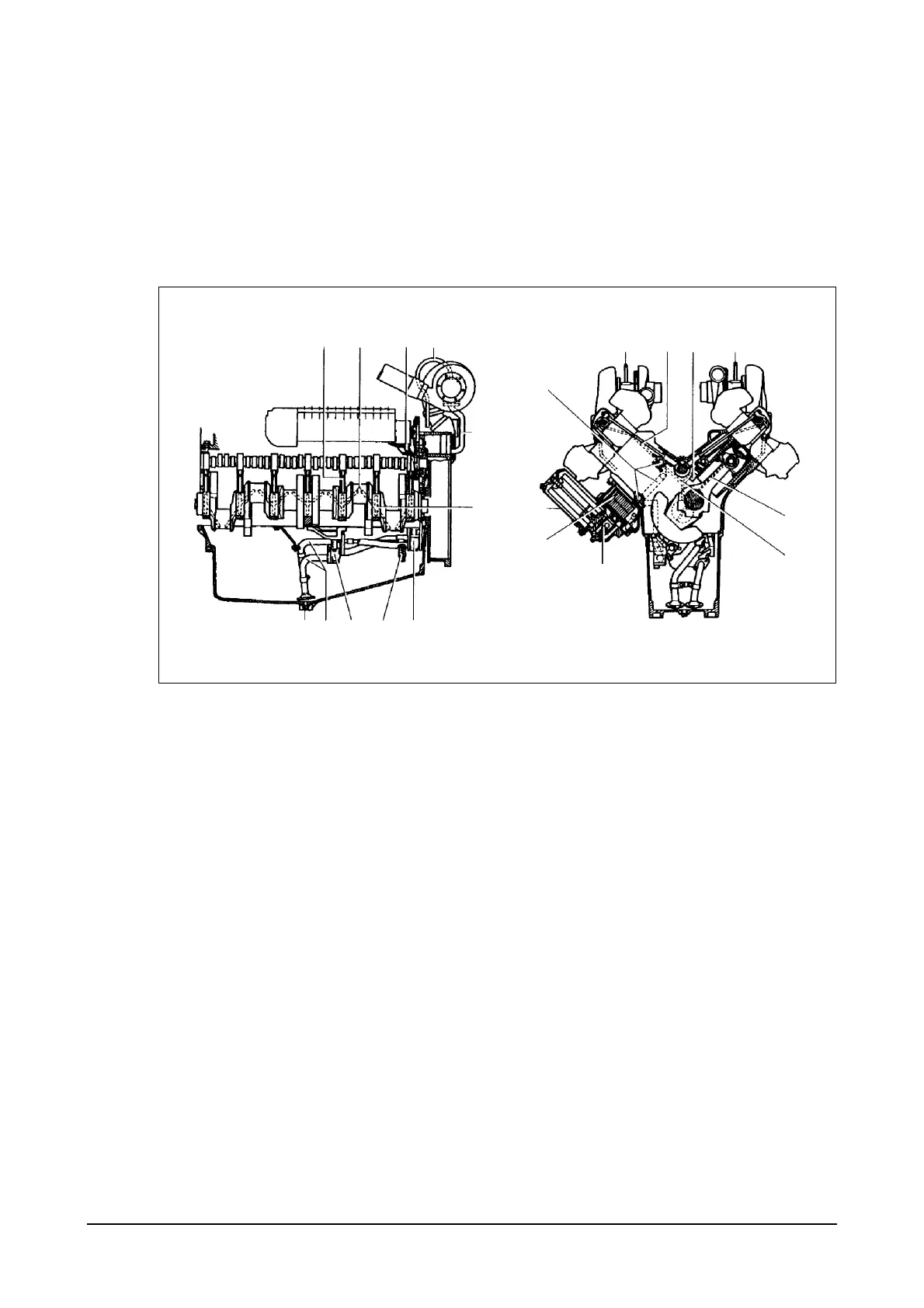

1. Oil suction pipes 10. Ports for big end bearing lubrication
2. Oil pumps 11. Small end bearing lubrication
3. Oil relief valves 12. Camshaft bearing lubrication
4. Oil cooler 13. Rocker arm lubrication
5. Oil filter 14. Spray nozzle
6. Bypass valve 15. Injection pump lubrication
7. Main oil galleries 16. Oil drain plug
8. Oil gallery to crankshaft 17. Lube oil pipes to turbochargers
9. Ports for main bearing lubrication 18. Oil return from turbochargers
17 13 14 17
11
12
4
7
6
5
9
18
8
16
1
2
3
2
10 15 17
EA6O3002
