Maintenance of Major Components
- 148 -
*
: Adopted in P158LE, PU158TI, P180LE, PU180TI, P222LE, PU222TI

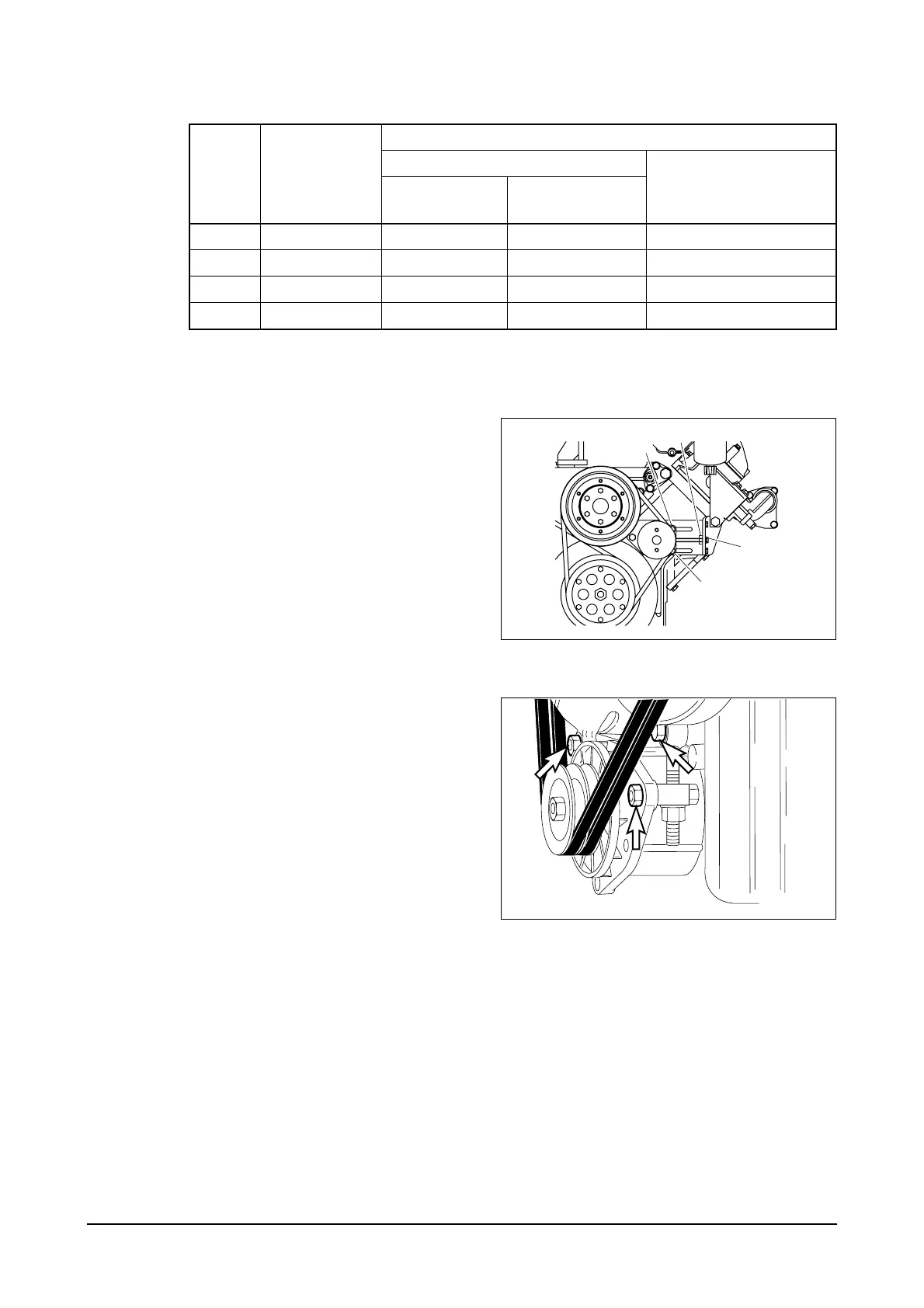

5) Tensioning and changing V-belt
z
Remove fixing bolts. (1)
z
Remove lock nut. (2)
z
Adjust bolt (3) until V-belts have
correct tensions.
z
Retighten lock nut and fixing bolts.
To change the V-belts loosen mounting
bolts (1) and lock nut (2) and push tension
pulley inwards by turning adjusting bolt
(3).
z
Remove fixing bolts.
z
Remove lock nut.
z
Adjust nut until V-belts have correct
tensions.
z
Retighten lock nut and fixing bolts.
To replace the V-belts loosen lock nut and
swing alternator inwards.
Type
Drive belt
width
Tensioning forces on the tester
new installation
When servicing after
long running time
Installation
After 10 min.
running time
M
9.5 mm 50 kg 45 kg 40 kg
A * 11.8 mm 55 kg 50 kg 45 kg
B
15.5 mm 75 kg 70 kg 60 kg
C
20.2 mm 75 kg 70 kg 60 kg
EA6O6013
3
1
2
1
EA6O6014
