Engine Disassembly
- 59 -

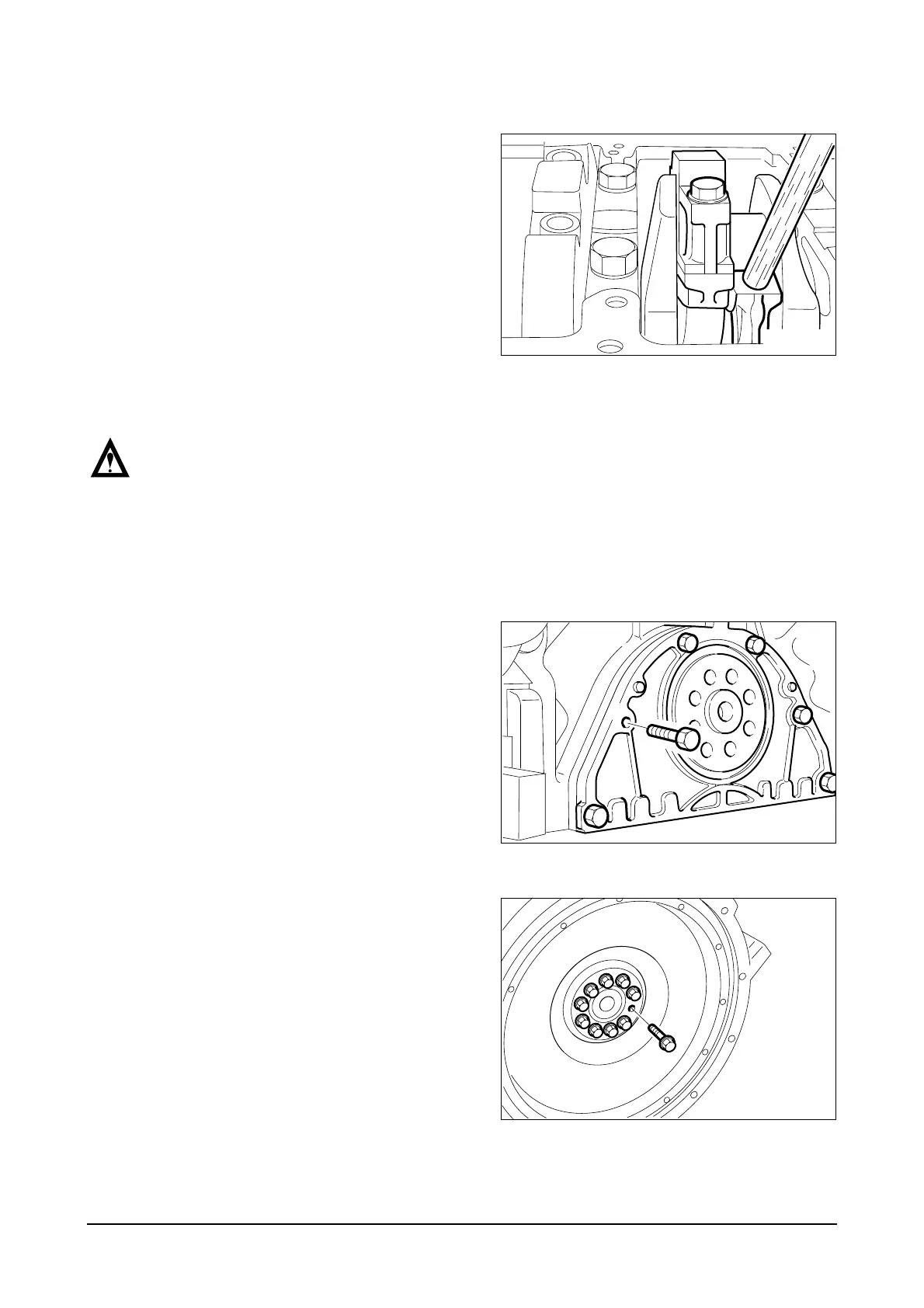

3.1.26. Piston
z
Remove the connecting rod cap bolts in
the reverse order of assembling and
follow the similar method as in the
cylinder head bolt removal.
z
Tapping the upper and lower
connecting rod caps lightly with an
urethane hammer, separate them and
take the bearings out.
z
By pushing the piston assembly with a
wooden bar toward the cylinder head’s
direction remove the piston.
NOTE :
Be careful for the removed pistons not to collide each other or with the other parts.
At the storage of pistons, maintain them in the order of cylinders.(In order for
connecting rod caps not to mix one another, temporarily assemble them to the
corresponding connecting rods.)
3.1.27. Front oil seal holder
z
Remove the oil seal holder fixing bolts
and tear down.
z
Remove the oil seal and gasket from
the oil seal holder and scrap them.
3.1.28. Flywheel
z
Remove the flywheel fixing bolts in the
order of disassembling and remove the
flywheel.
EFM2026I
EFM2027I
EFM2028I
