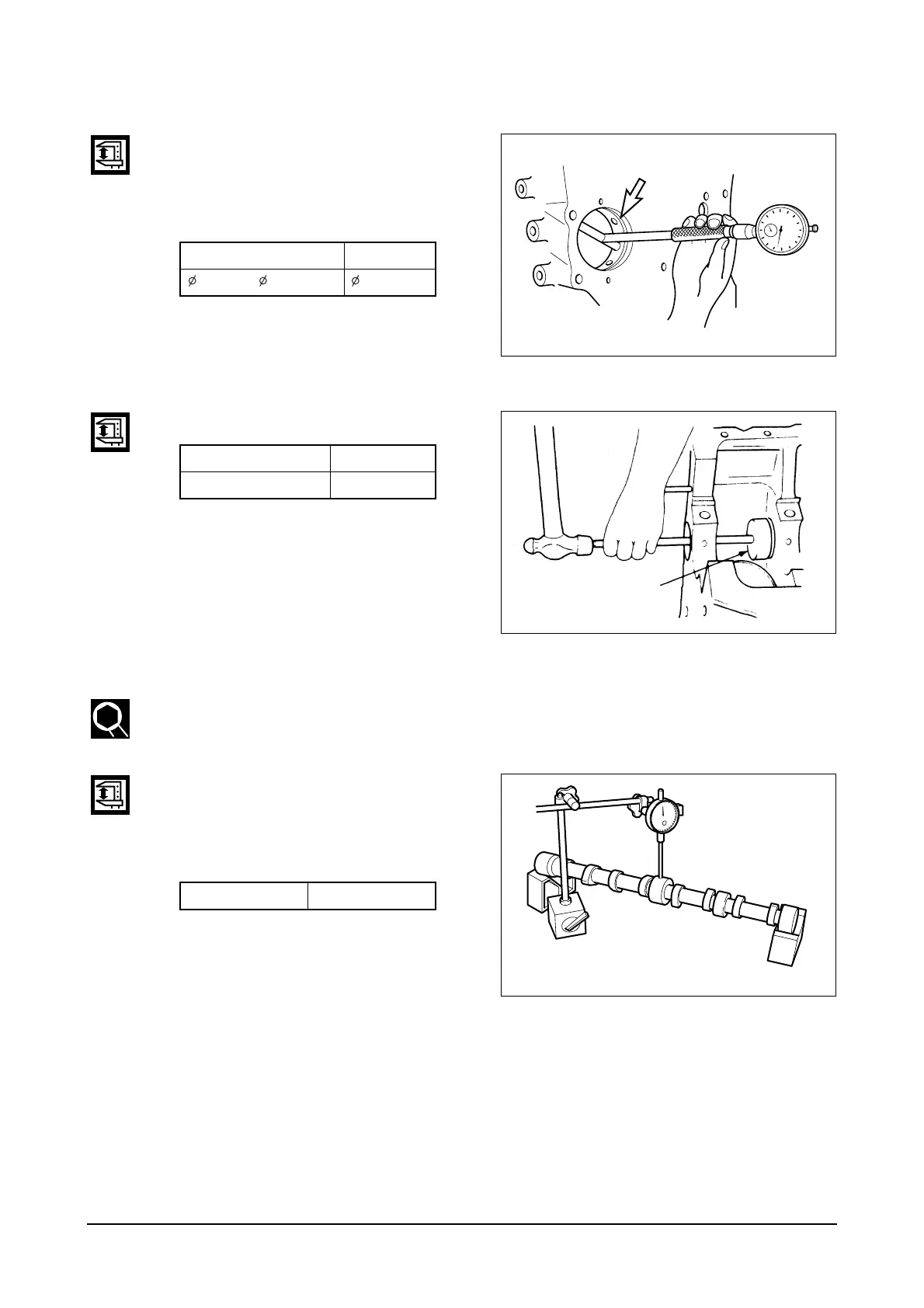

Inspection
- 71 -
z
Cam bearing diameter
Measure the camshaft bush inside
diameter with a cylinder gauge and
by comparing the inside and outside
diameters, replace if abnormal.
z
Clearance
between camshaft journal and body
z
Camshaft bearing replacement
Remover, installer.
z
Camshaft run-out
With placing the camshaft on the 2ea
of V-blocks, and inspect the run-out
of the camshaft, adjust or replace the
severe one.
Standard Limit
70.077 ~ 70.061 mm 69.897 mm
Standard Limit
0.060 ~ 0.120 mm 0.18 mm
Standard 0.1 mm
EA0M4063
Camshaft bearing
Remover, installer
EA3M2039
EA0M4066
