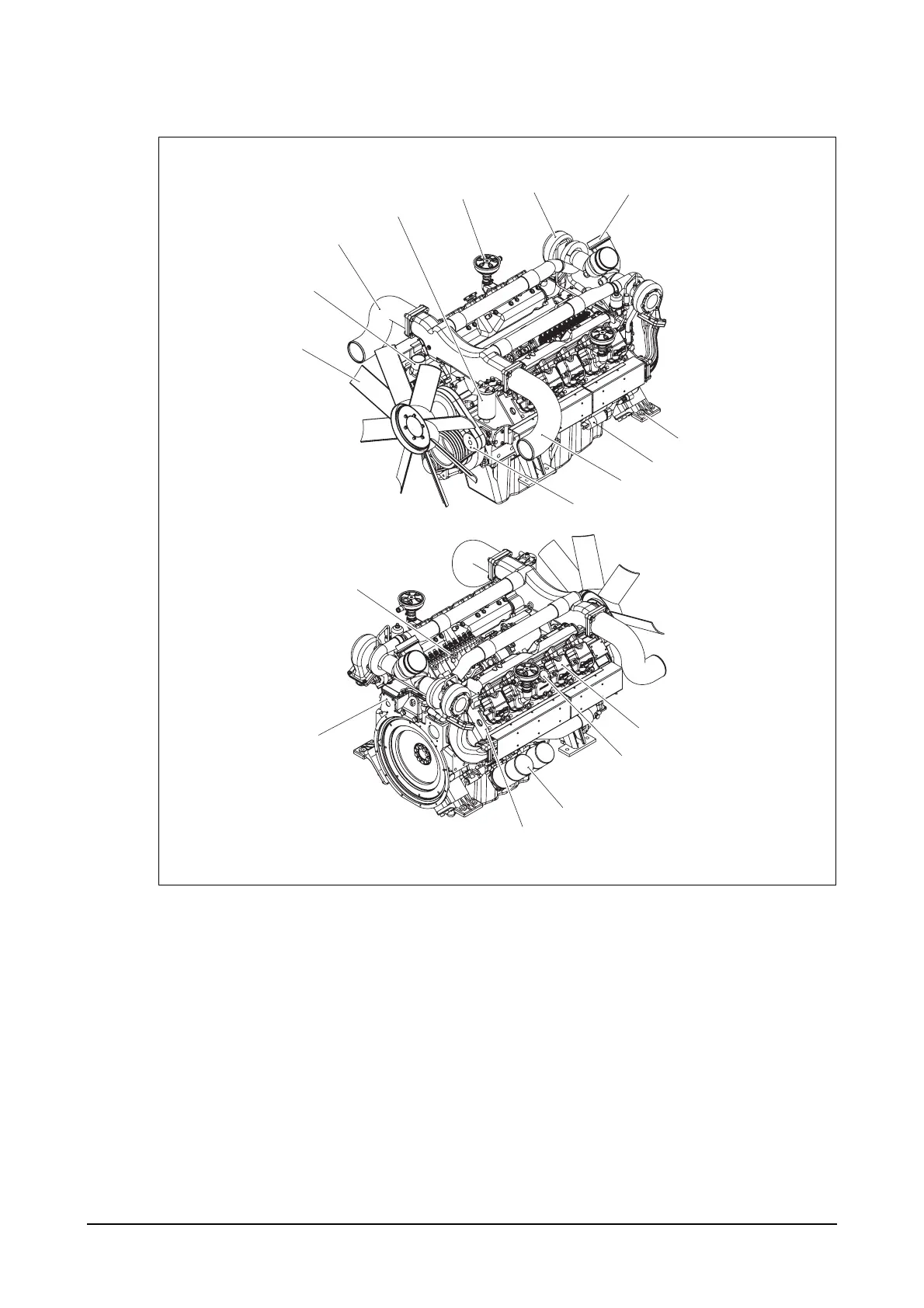

2) PU180TI : Power unit engine
1. Cooling fan 9. Air pipe
2. Water outlet (Turbocharger to inter cooler)
3. Air pipe 10. Starter
(Intercooler to intake manifold) 11. Idle pulley
4. Fuel filter 12. Injection pump
5. Breather 13. Fly wheel housing
6. Turbo charger 14. Cylinder head
7. Air pipe 15. Oil filter
(
Air cleaner to turbocharger)
16. Oil filler cap
8. Mounting bracket 17. Cylinder head cover
1
2
3
4
5
6
7
8
9
10
15
14
13
12
11
16
17
EH5OM005
