Operating concept
Measured values whose specified accuracy cannot be maintained are displayed in
gray.
5.2.3 Color codes for anesthetic agents and medical gases
Standardized color codes complying with ISO 5359 / ISO 32 / ISO 5360 are used to
identify anesthetic agents and medical gases.
The colors for O
2, Air, and N2O conform to locally applicable standards.
5.2.4 Daytime colors and nighttime colors
There are 3 color schemes that can be selected:
– Day light
– Day dark
–Night
Setting the color schemes, see page 174.
5.3 Selecting and setting
5.3.1 Setting of parameters
Changes to these settings always require confirmation by pressing the rotary knob.

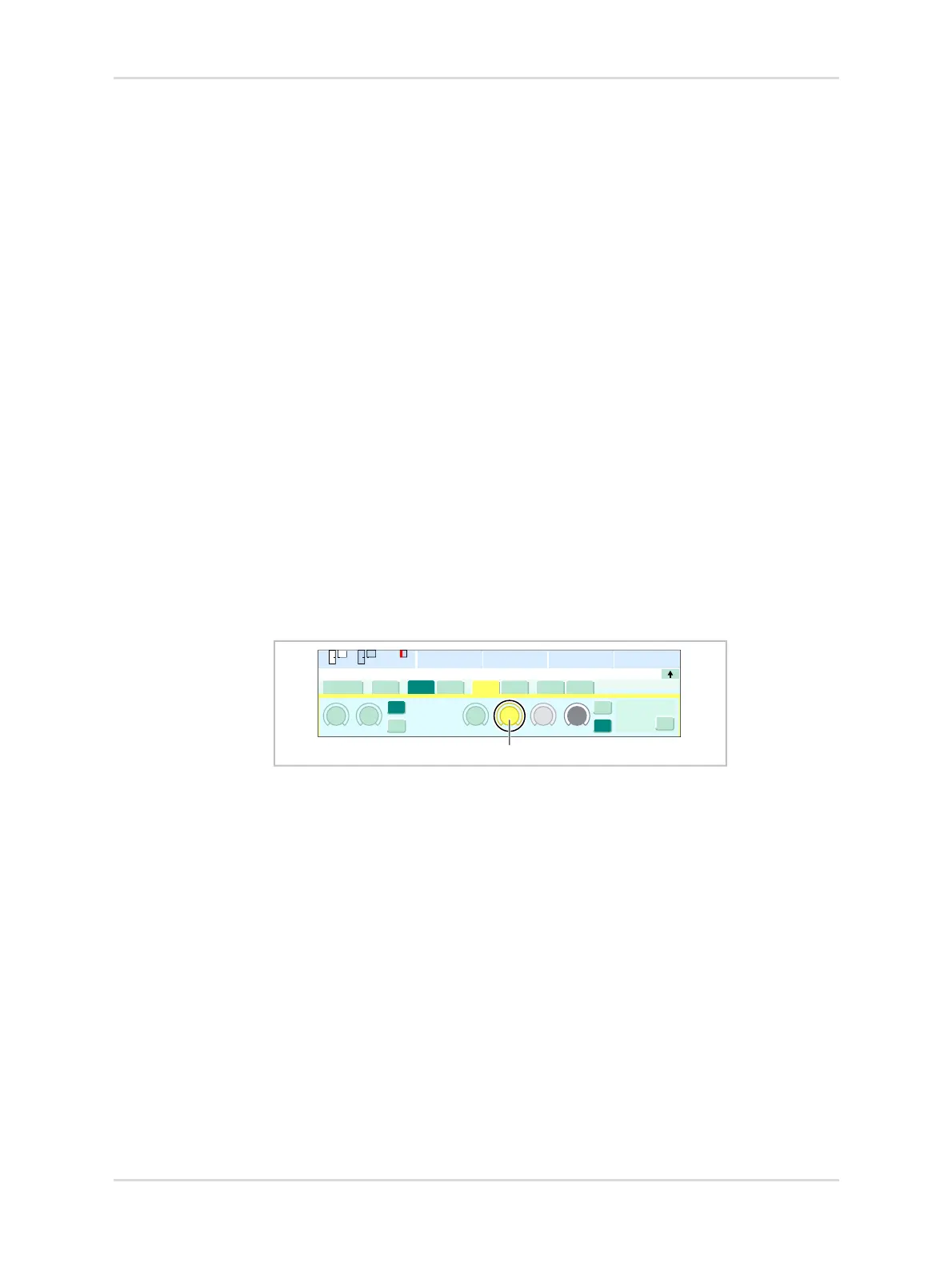

1. Select
Touch the control element (1). The color turns yellow. For therapy controls, the
unit of the parameter to be set is displayed.
2. Set
Turn the rotary knob. For some therapy controls, faster turning raises the
increment value.
3. Confirm
Press the rotary knob. The color of the control element changes to green.
In the subsequent chapters of this document, these steps will be written in
simplified form as follows:
– "Set the value."
– "Touch the button."
