Instructions for use | Atlan A100 (XL), A300 (XL), A350 (XL) SW 2.1n 225
Configuration

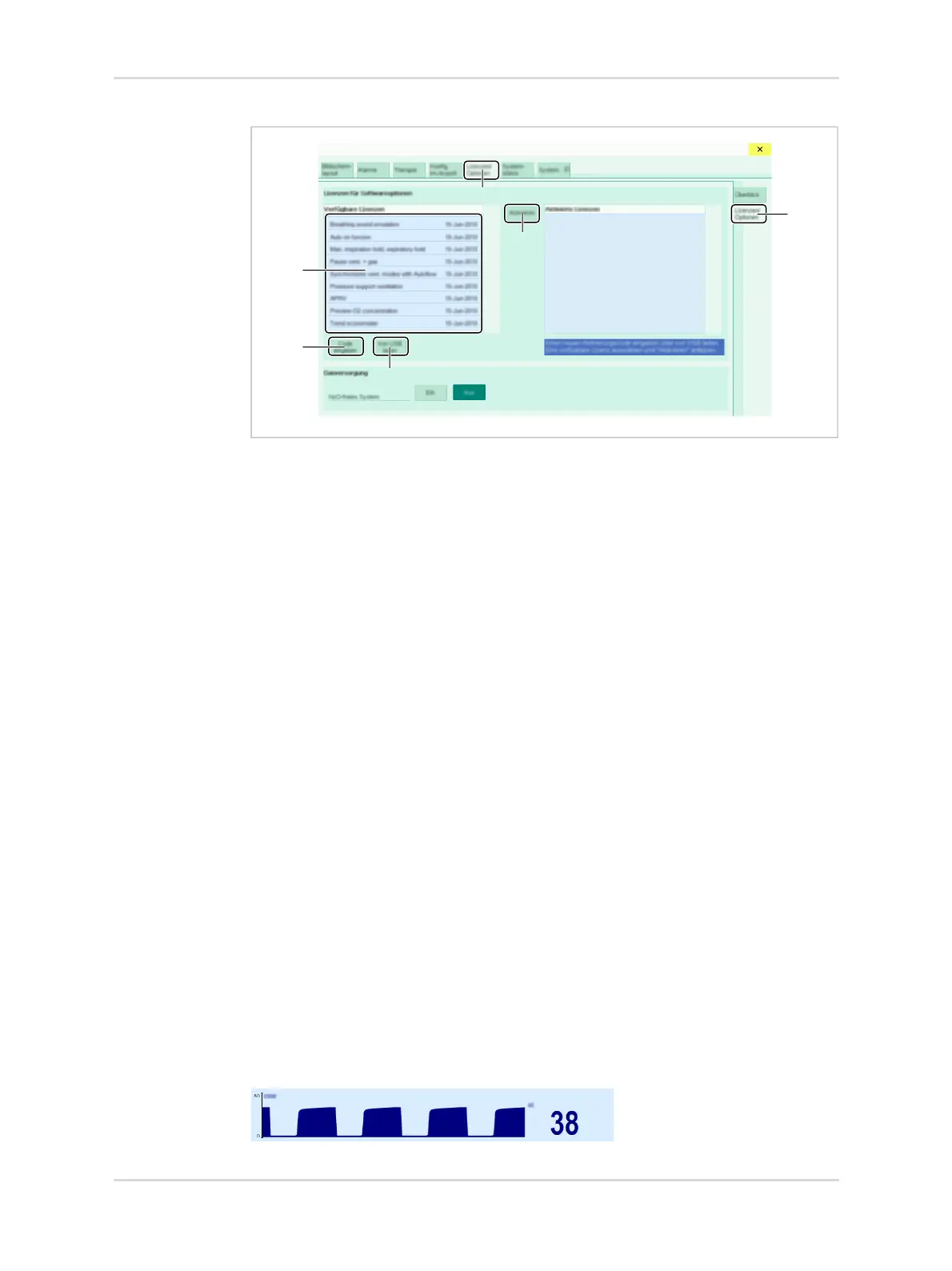

Loading the activation code from a USB mass storage device
Prerequisite: A USB mass storage device with valid licenses is connected to the
USB port.
● Touch the Load from USB button (3).
The activation codes are read and displayed in the list (5).
Entering the activation code
1. Touch the Enter code button (4).
2. Enter the activation code and confirm with OK.
The license is displayed in the list (5).
Activating the licensed software option
The licensed software options must be activated as follows before they become
available:
1. Select the corresponding license from the list (5).
2. Touch the Activate button (2) and confirm.
3. After activating all desired licenses, restart the device.
11.8 Overview of configurable screen contents
Waveforms and parameter fields are selected in the Quick setup dialog, see
page 171.
All available waveforms and parameter fields are listed below. The actually
available waveforms and parameter fields depend on the main device and the
device equipment.
11.8.1 Waveforms and associated parameter fields
etCO2
36022
1
3
1
2
5
4
System setup
36158
CO2
