242 Instructions for use | Atlan A100 (XL), A300 (XL), A350 (XL) SW 2.1n
Troubleshooting

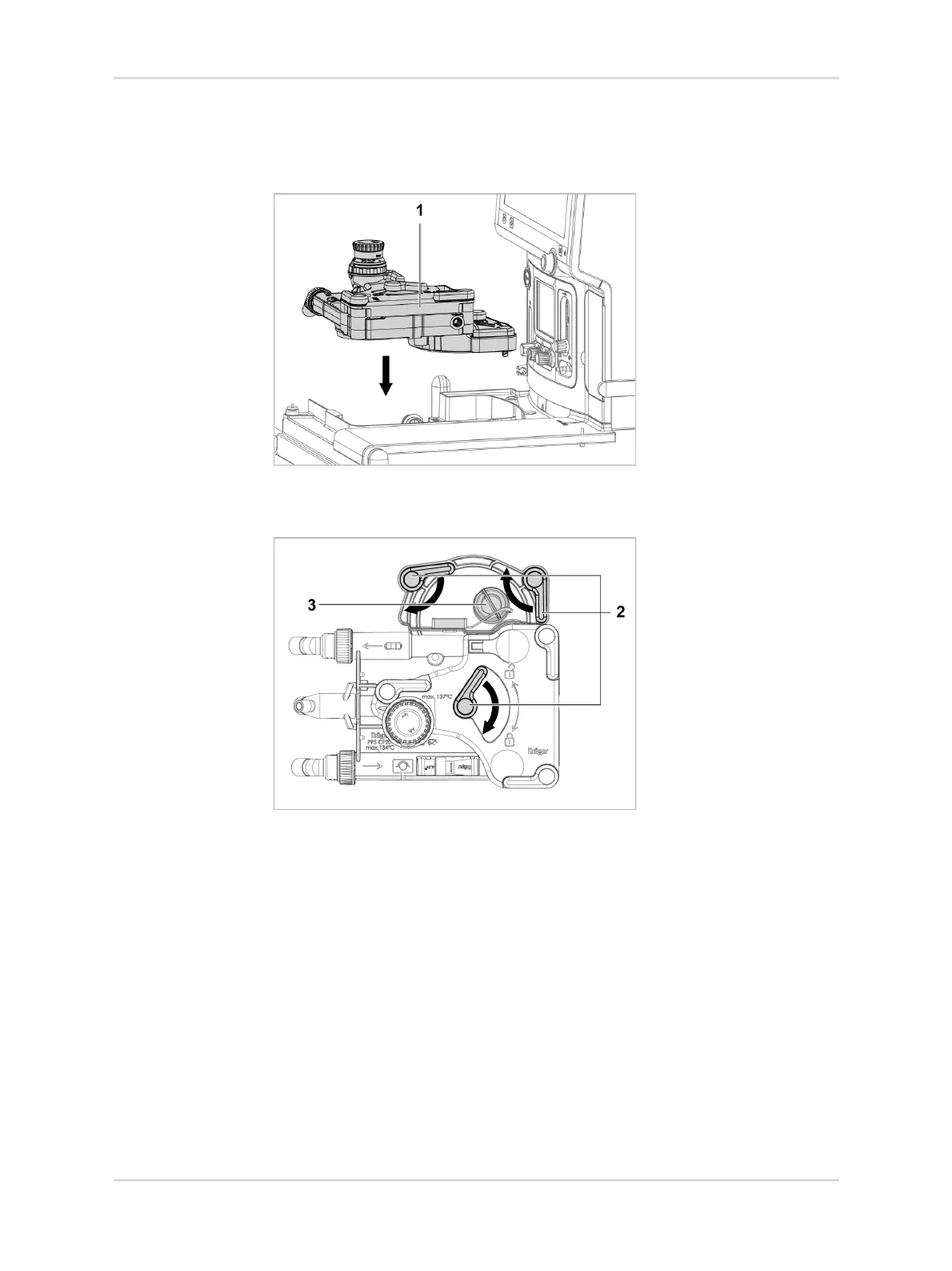

12.8.1.4 Inserting the breathing system
1. Insert the assembled breathing system (1) vertically into the breathing system
mount.
2. Turn the levers (2) by approximately 120° clockwise. The breathing system is
now locked. If the device is equipped with an integrated patient-gas
measurement module, seal the O
2 sensor port with the sealing cap (3).
12.9 Screen fault or failure of the graphical user interface
The screen does not respond to operation. It has failed or the screen display is
faulty.
1. Activate the backup manual switch, see page 50.
2. Use the emergency O
2 delivery, see page 50.
3. Check the vaporizer setting.
4. Ventilate the patient manually.
5. Ensure appropriate substitute monitoring.
