Instructions for use | Atlan A100 (XL), A300 (XL), A350 (XL) SW 2.1n 19
Overview
3 Overview
3.1 Hardware
Some equipment items and device functions are available as an option. Not all
equipment is available worldwide for all main devices.
3.1.1 Front

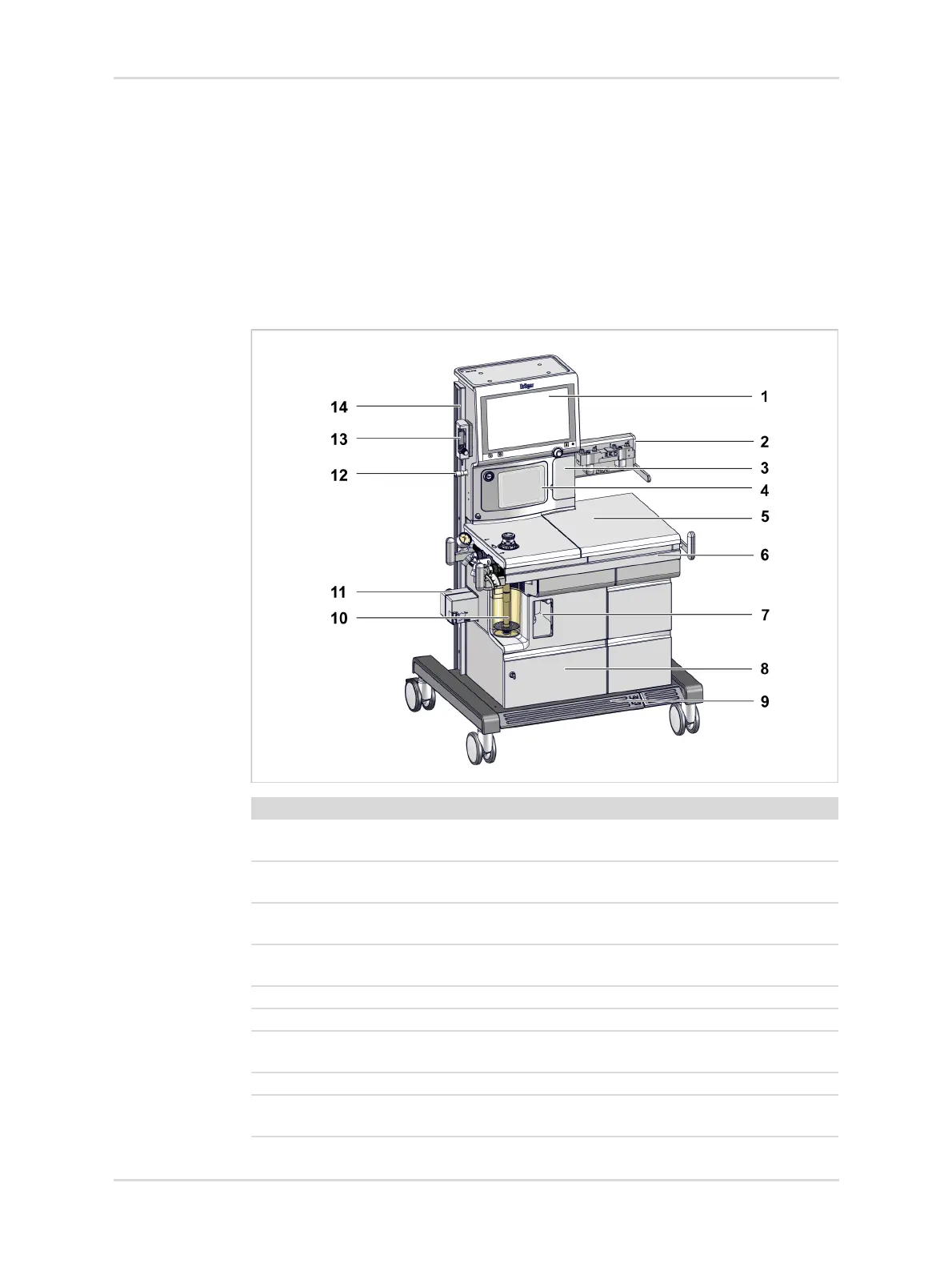

3.1.1.1 Large version (XL)
36437
No. Designation Description
1 Screen Enables user inputs by touchscreen and
rotary knob.
2 Plug-in connectors for vaporiz-
ers
Enable the connection of 1 or 2 vaporizers.
3 Backup manual switch (behind
the flap)
Used to switch to backup manual mode in
the event of malfunctions of the device.
4 Gas mixing unit Produces a gas mixture from the selected
gases (e.g., O
2 and Air).
5 Work surface Used for storage.
6 Pull-out writing tray Provides additional work surface.
7 Viewing window for piston ven-
tilator
Allows visual checking of the movement of
the piston ventilator.
8 Lockable drawer Provides additional storage space.
9 Trolley with castors and cable
deflectors
Used for moving the device. The central
brake locks the two front castors.
