Operating concept
5 Operating concept
5.1 Screen
5.1.1 Main screen

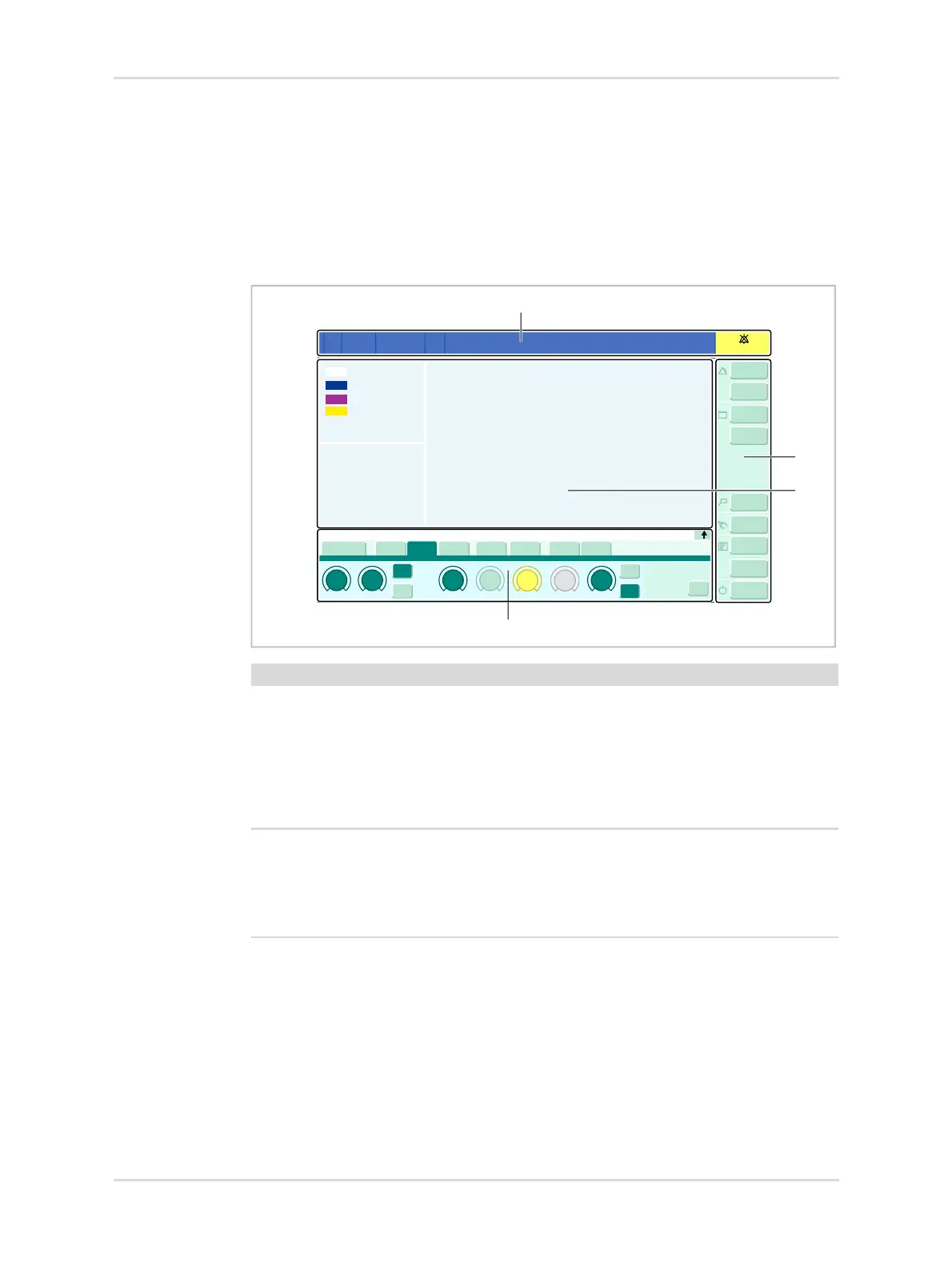

The main screen displays the most important information regarding anesthesia and
ventilation.
34746
No. Designation
1 Header bar The header bar shows the following information:
– Patient category
– Patient data
– System information (date, time, device name)
– Alarms, messages, and notifications
– Information regarding temporarily deactivated alarms
2 Main menu bar The main menu bar contains buttons to open dialogs
and activate functions.
These buttons are assigned to various groups. For fur-
ther information, see the following chapter: "Overview of
the menu structure", page 337
1:35
2
3
4
1
