7.9.14.1.1 Metering monitoring

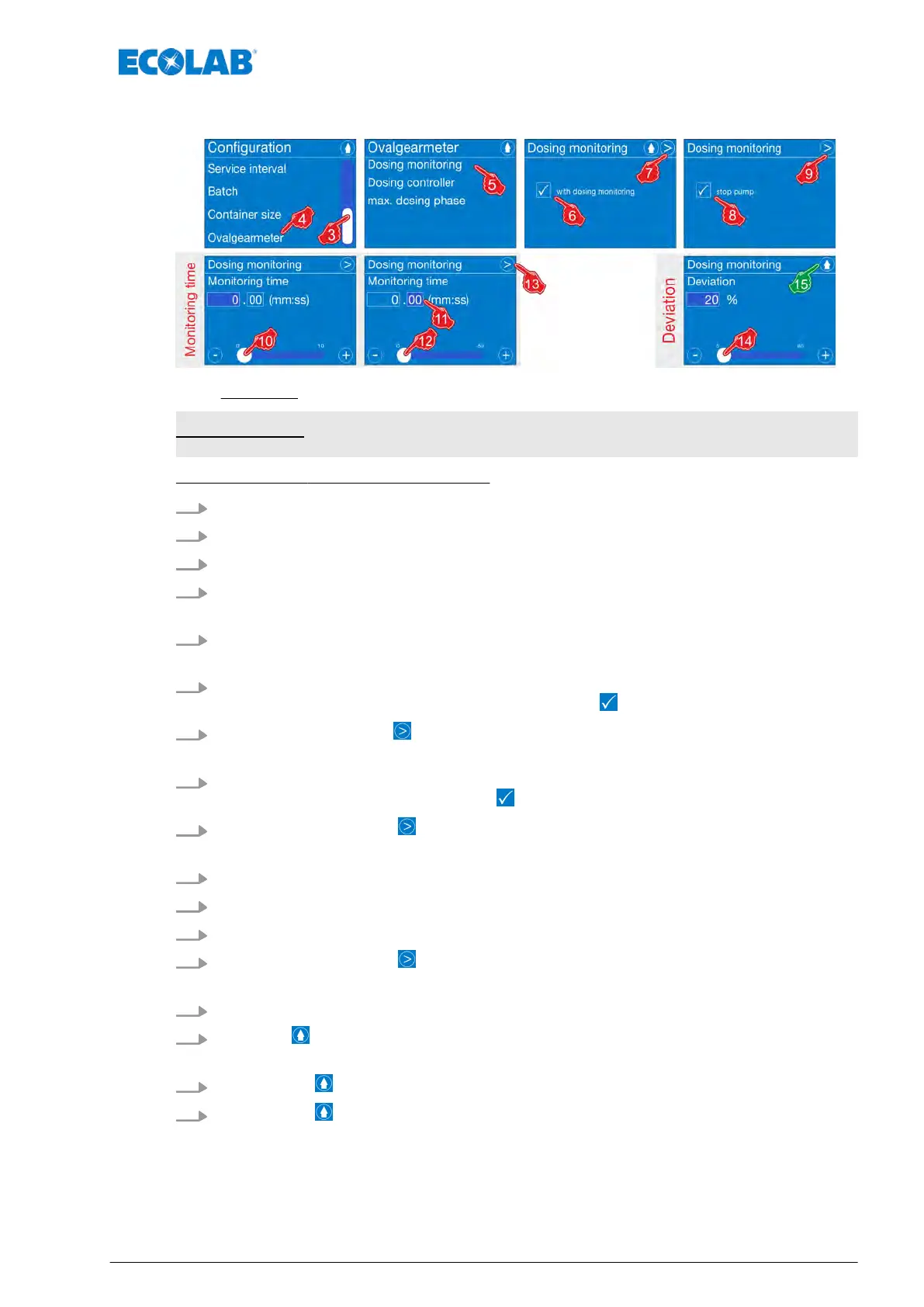

Fig. 69: Configuration: Metering monitoring
Factory setting: without metering monitor
Selection of the [Metering monitoring]:
1.
[Main menu] :
Ä
Chapter 7.6 ‘Main menu’ on page 66
2.
[Configuration menu] :
Ä
Chapter 7.9 ‘Overview - Configuration’ on page 83
3. Use the scrollbar to scroll to the [Oval gear meter] menu option.
4. [Oval gear meter] - select
ð
Screen switches to the [Oval gear meter].
5. [Metering monitoring] - select
ð
Screen switches to the [Metering monitoring].
6. If required, select the selection box ‘with metering monitoring’.
ð
The selection box ‘with metering monitoring’ is marked.
7.
[Press the Next button] .
ð
Screen change for setting: ‘Metering monitoring’
/ ‘Stop pump’ / ‘Quantity’.
8. If required, select the ‘Stop pump’ selection box.
ð
The ‘Stop pump’ selection box is marked.
9.
[ Press the Next button] .
ð
Screen change for setting: ‘Metering monitoring’
/ ‘Monitoring time’.
10. Enter the minutes before the decimal point with the scrollbar
.
11. Select the seconds after the decimal point.
12. Enter the seconds with the scrollbar
.
13.
[ Press the Next button] .
ð
Screen change for setting: ‘Metering monitoring’
/ ‘Deviation’.
14. Enter the deviation in percent (%) using the scrollbar
.
15.
Press the button.
ð
The setting is saved, and the screen switches back to the configuration overview
.
16.
Pressing the button returns to the [Main menu].
17.
Pressing the button returns to the [Operating display].
