1 Before Beginning

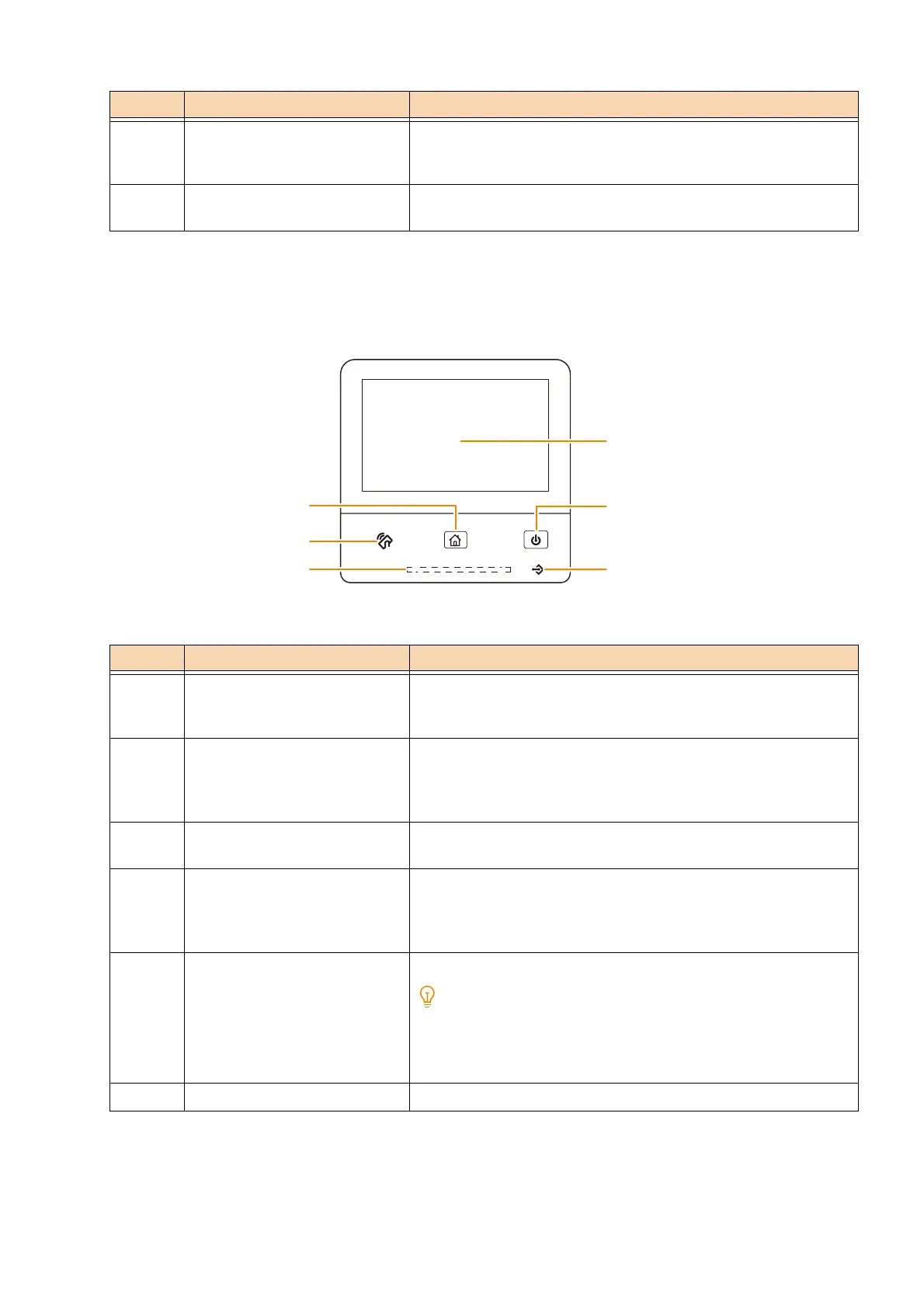

Control Panel
12 Transport Unit H3 (optional)
(Finisher connection section top
cover)
Moves paper. Open the cover upward when clearing paper jams.
13 Center tray (Output Tray) Prints are delivered here when they are unable to be delivered to
the output tray or finisher tray.
No. Name Description
1 Touch panel display The panel displays messages and function buttons necessary for
operations. Touch the touch panel display directly to operate
screens and configure functions.
2 <Power/Power Saver> button Press this button to turn the power of the machine on and off. You
can also use the button to wake the machine or put it in Power
Saver Mode. This button flashes when the machine is in a low-
power state.
3 Data lamp The lamp flashes when sending data from the machine or receiving
data from a computer.
4 Status indicator lamp Lights for a short time in blue when an operation was received or
process was completed. Flashes in orange when a problem has
occurred with the machine, such as a system error, paper jam, or
when paper or toner run out.
5 NFC touch area Touch NFC compatible mobile devices here.
Note

The NFC function of this machine must be turned on for
intercommunication. The NFC feature is configured by CentreWare
Internet Services. For more information, refer to the CentreWare
Internet Services Help.
6 <Home> button. Press to display the Home screen.
No. Name Description
1
3
2
6
4
5
