8 MAP
The Map page is used to provide situational awareness in flight. The Map
page can display the following information:
• Airports, NAVAIDS, airspace,
airways, land data (highways,
cities, lakes, rivers, borders, etc.)
with names
• Wind direction and speed
• Icons for enabled map features
• Aircraft icon (with the nose
representing present position)
• Nav range ring
• Flight plan legs
• Topography scale
• Topography data
• NEXRAD (or Precip) Weather (Opt.)
• Terrain Overlay
• Traffic Overlay
•
Fuel range ring (software v6.00 or later)
• Track vector (software v6.20 or later)
Back to
Previous Page
Range Keys
Touch to Zoom
In and Out
Aircraft Symbol
(Present Position)
Active Flight
Plan Leg
Map Orientation
Map Menu
Options
North Indicator
Map ScaleNav Range Ring

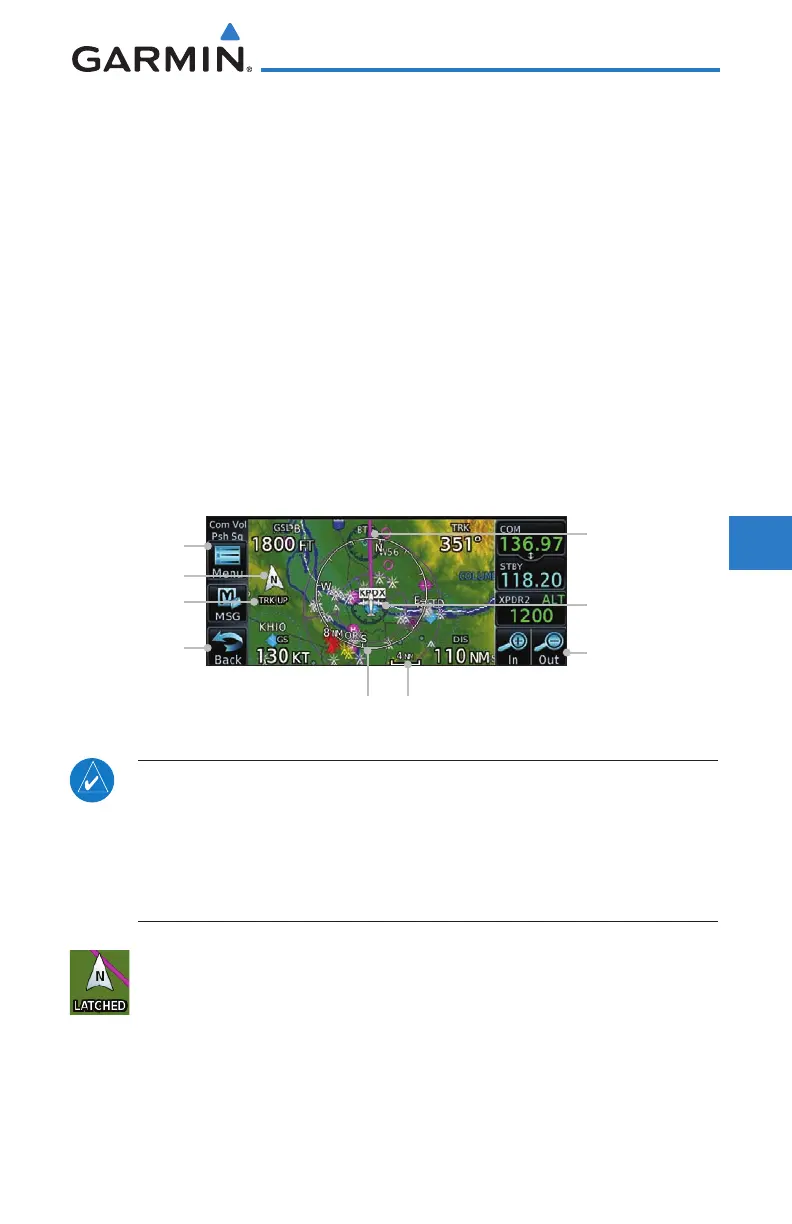

Figure 8-1 Map Page Description
NOTE: The electronic map is an aid to navigation and is designed to
facilitate the use of authorized government charts, not replace them.
Land and water data is provided only as a general reference. The accuracy
of the land and water data is not suitable for use as a primary source of
navigation and should only be used to supplement official government
charts and notices.
The following information describes the ownship symbol behavior
in a helicopter that does not have a source of magnetic heading
information connected to the GTN.
