9.8.2 Select Altitude Filter
The Altitude Filter limits the traffic displayed to the Below, Normal,
Above or Unrestricted altitude block as listed in the “Displayed Traffic
Range” table. The filter altitudes are relative to ownship altitude.
While viewing the Traffic page, touch the Altitude Filter key to
change the altitude filter value. Select the desired altitude filter by
touching the Normal, Above, Below, or Unrestricted keys. The
selection is displayed in the Altitude Filter field.
Selected Altitude Filter

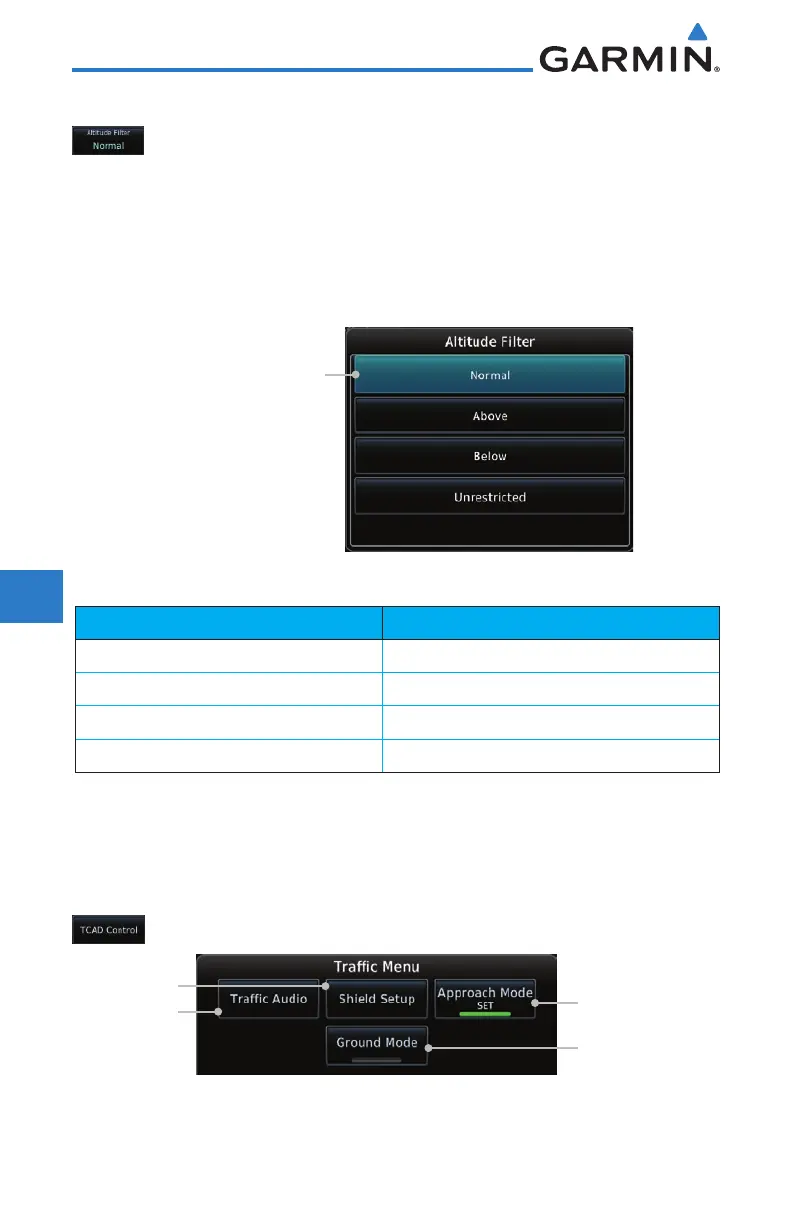

Figure 9-31 Traffic Altitude Filter Selection
Altitude Mode Displayed Traffic Range
Below -9,900 ft to 2,700 ft
Normal -2,700 ft to 2,700 ft
Above -2,700 ft to 9,900 ft
Unrestricted All Traffic Shown
Table 9-16 Displayed Traffic Range
9.8.3 TCAD 9900BX Traffic Menu
The TCAD 9900BX Menu allows control over the settings for the TCAD
Traffic display.
1. While viewing the Traffic page, touch the Menu key.
Set Traffic
Audio Volume
Select Shield
Setup
Select Approach
Mode: Set, Armed,
or Active
Toggle Ground
Mode On or Off
Figure 9-32 TCAD 9900BX Traffic Menu
2. Touch the desired key from the menu to make any settings.
