Conventions
The GTN display dynamically tailors the number and position of the controls
for each function and are engaged by merely touching them.
Touch: Touch the key with your finger.
Drag: Touch the list or location on the map with your finger. Continue lightly
holding your finger to the display surface and drag your finger in the
intended direction to scroll through the list or move the location on the
map.

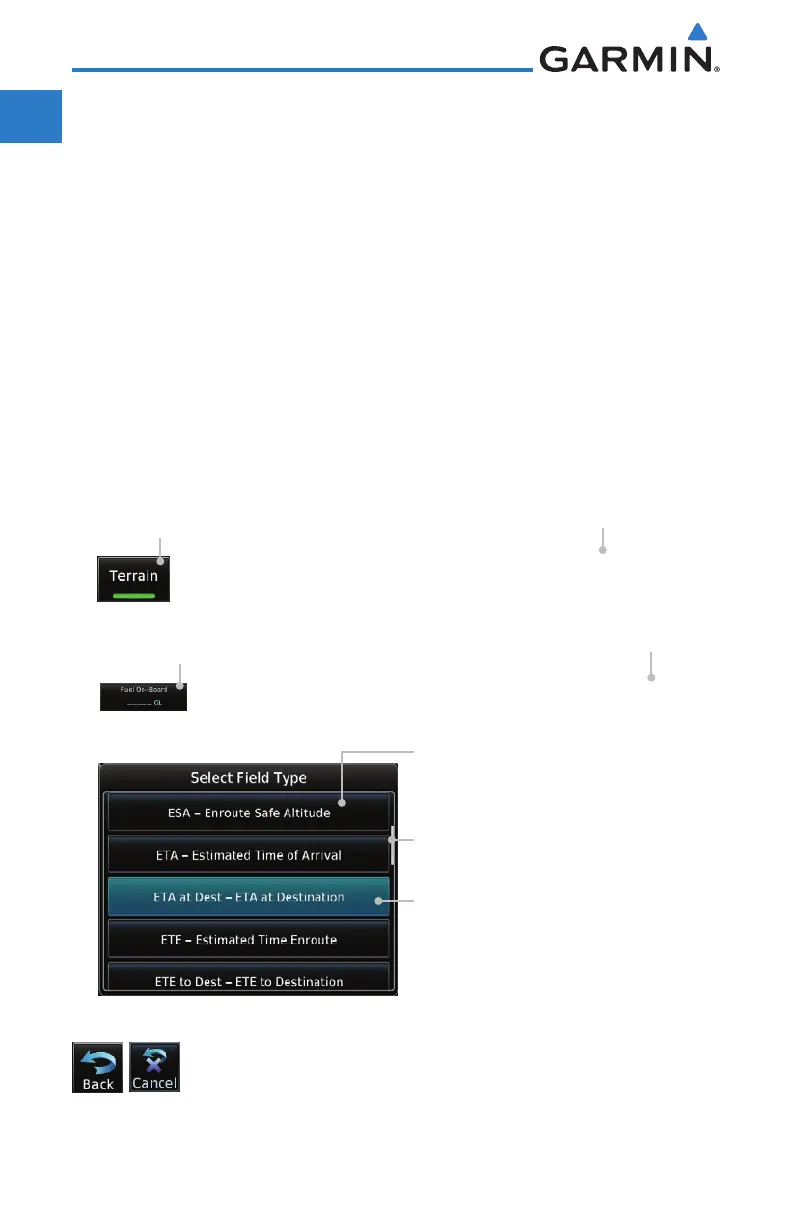

In this pilot’s guide, key titles are noted by bold text. An image of the key
used will be shown to the left of a procedure. Keys are outlined areas on the
display. Figures in the guide will identify the available controls. A key may have
a name of a control, such as Enter, Terrain, or Back. A key may also be an
information field, such as a numeric value that can be changed.
While viewing the Map Menu, touch the Terrain Map
Overlay key to toggle the view of terrain data.
Graphic of Key
Text Description of
Key Operation
Graphic of Key With
Numeric Value
When the Fuel on Board value is selected, touch the Fuel on
Board key to display the Fuel on Board values.
Text Description
of Key Operation
List of Keys. Touch To Select.
Selected Field Type
Scroll Bar Indicates More Selections
Available
Touch Finger to an Item in the List
and Drag Your Finger to View More
Selections
Touching the Back key returns to the previous display. The
Cancel key cancels any information selected or entered and
returns to the previous display.
