2 AUDIO AND TRANSPONDER CONTROLS
(OPTIONAL)
The GTN 6XX can perform as the control and display for a transponder
(such as one of the GTX family of transponders) or display marker beacon
annunciations from an audio panel (such as the GMA 35 or GMA 350). Contact
your dealer for more information.
2.1 Transponder Operation
The GTN 6XX will operate as a control head for remotely connected optional,
compatible transponders.
NOTE: The transponder control panel on the GTN will only contain the
Ground key when the GTN is interfaced with a GTX 33/330 with software
versions prior to 8.00.
NOTE: Starting the GTN with a Flight Stream 510 wireless datacard in the
slot may cause the control panel to be temporarily unavailable on the
start-up screens during unit power up.
VFR Squawk
Code (1200) Key
Squawk Code
Window
Squawk Code
Backspace Key
Enter Key
Context Sensitive
Instructions for
Rotary Knob
Active XPDR,
Code and
Mode Display
Mode Key
Active
Transponder
Selection
Reply
Annunciation

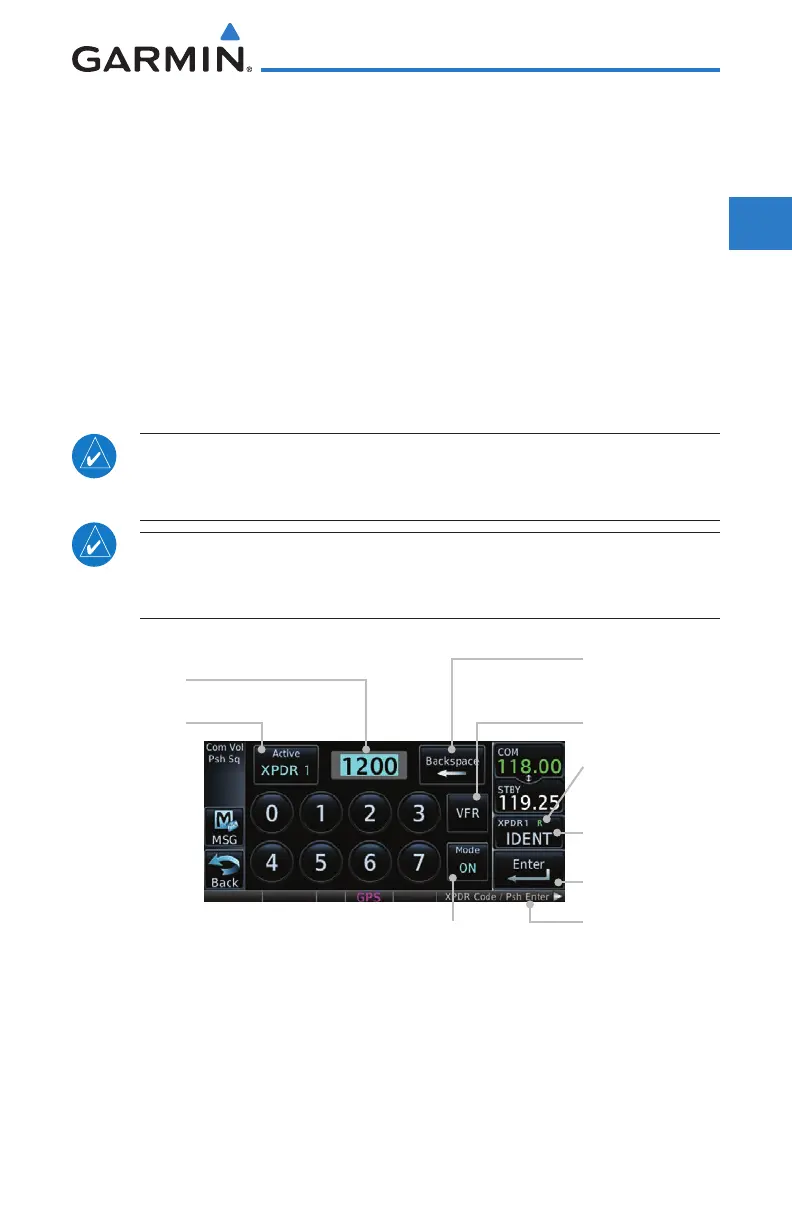

Figure 2-1 XPDR Control Display
