10.4.1.1 Terrain Page 120° Arc or 360° Rings

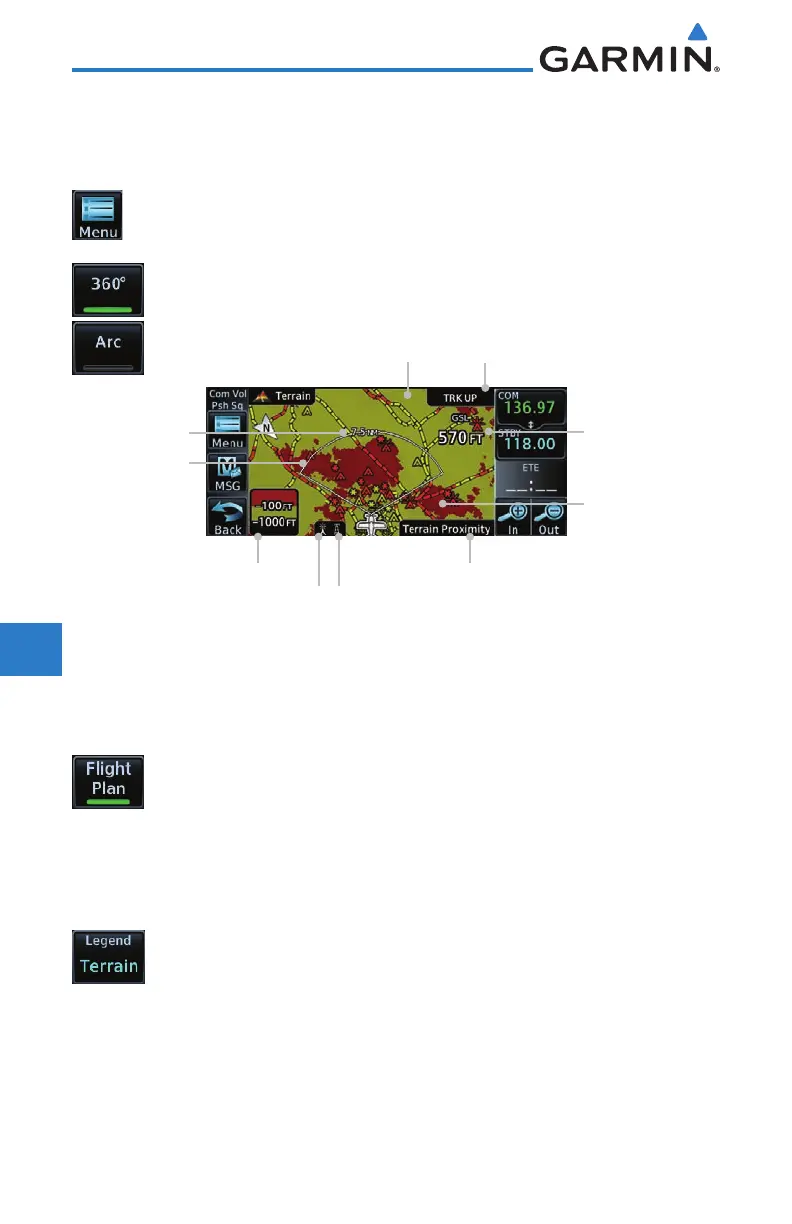

Select the 120º Arc or 360º rings overlay for the Terrain page with either the
360 or Arc keys from the Menu.
1. While viewing the Terrain page, touch the Menu key.
2. Touch the 360º or Arc key.
120° Arc Outline
Arc Range
Heading Annunciation
Aircraft GSL Value
(GPS Derived)
Red Terrain is
Above or Within
100 ft Below the
Aircraft Altitude
Yellow Terrain is Between
100 ft and 1,000 ft Below
the Aircraft Altitude
Terrain Type
Terrain Scale
Icon shows point obstacle
overlay is active (software
v5.12, or later)
Icon shows wire obstacle
overlay is active (software
v5.12, or later)
Figure 10-4 Terrain 120° Arc View
10.4.1.2 Display Flight Plan on Terrain Page
Select the display of the active flight plan on the Terrain page.
Touch the Flight Plan key to toggle the display of the active
flight plan on or off.
10.4.1.3 Display Terrain or Obstacle Legend
Select the display of the Terrain or Obstacle Legend on the Terrain page.
Touch the Legend key to select the display of the Terrain or
Obstacle Legend.
