10.4.1 Displaying Terrain Proximity
The Terrain page is in the Terrain function.
1. Touch the Terrain key on the Home page.
Heading Annunciation
Aircraft GSL Value
(GPS Derived)
Range
Rings
Terrain Page Title
Red Terrain is Above or
Within 100 ft Below the
Aircraft Altitude
Yellow Terrain is Between 100 ft and
1,000 ft Below the Aircraft Altitude
Active Flight
Plan Leg
Terrain TypeTerrain Scale
Obstacles

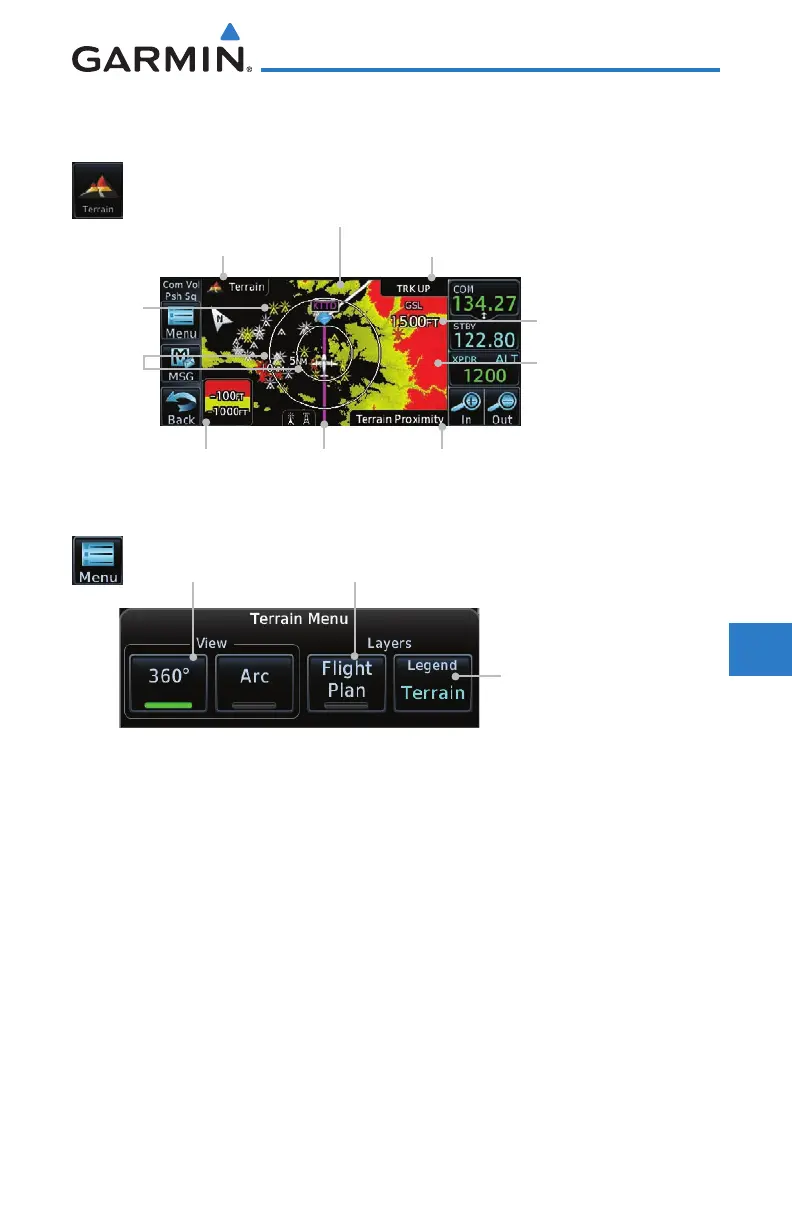

Figure 10-2 Terrain Page
2. Touch the Menu key for options.
Selected View
Flight Plan Selected to Show
Touch to Select Display of
Terrain or Obstacle Legend
Figure 10-3 Terrain Menu Options
