7.3 Intersection (INT)
The Intersection page of the Waypoint Info function provides a variety
of detailed information about the intersection. The top left area of the page
displays the Intersection identifier and region. The top center area shows the
latitude/longitude coordinates of the Intersection and the bearing (with direction
arrow) and distance to the Intersection from your present position.
Select another Waypoint by touching the Waypoint Identifier key, entering
the characters for the desired name with the alphanumeric keypad, and then
touching the Enter key. You may also search through the list by touching the
Find key and then choosing from the existing list of waypoints by touching the
desired waypoint from the list.
The center area of the page shows a map with the Intersection in the center.
1. While viewing the Waypoint Info page, touch the Intersection
key.
Distance & Bearing to Intersection
from Current Position
Intersection
Identifier
Touch to View
Intersection Area
Map
Touch & Move
Finger While
Pressing to Pan Map
Intersection
Latitude/
Longitude
Nearest VOR
Information

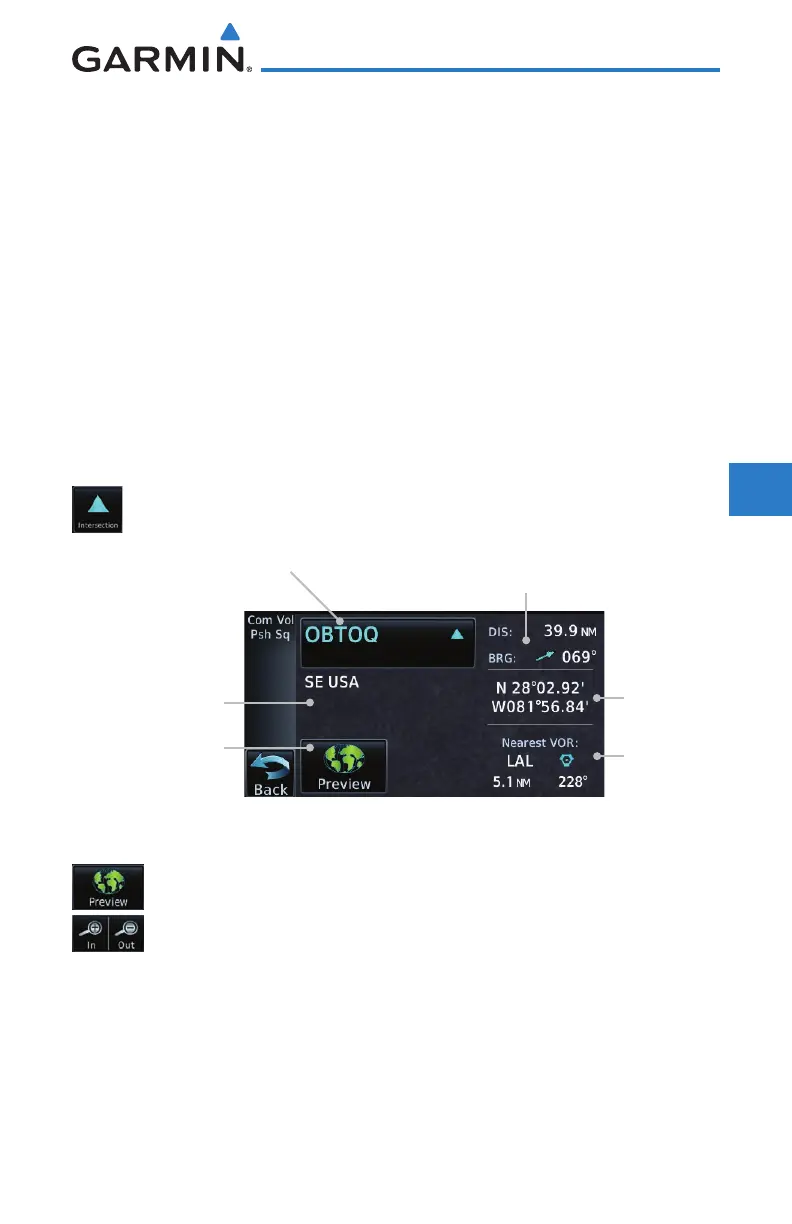

Figure 7-17 Waypoint Info - Intersections
2. Touch Preview and then use the In and Out keys to zoom
in and out on the map. You may touch the map window and
while lightly pressing the display, drag your finger to move the
map view.
