CHAPTER 4: 3 SERIES IEC61850 GOOSE USING THE IEC 61850 CONFIGURATOR
SR3 SERIES PROTECTIVE RELAY PLATFORM – COMMUNICATIONS GUIDE 4-31
GGIO5 contains the status of the remote inputs received by this relay while GGIO1 contains
the status of the remote outputs configured under Setpoints > S1 Relay Setup >
Communication > Transmission.
3 Series GOOSE configuration - Lab
This section explains how to setup GOOSE messaging between two relays using the 3
Series IEC61850 Device Configurator. Please note that only relay settings files with
firmware version 1.41 or higher, with the 3E option, support this feature.
For simplicity, the objective of this exercise will be to demonstrate how to configure the
3
Series relay labeled 228 (using the 3 Series IEC61850 Device Configurator portion of the
EnerVista 3
Series Setup software) to send a GOOSE message containing the status of
Virtual Input 1 to the 3 Series relay labeled 254.

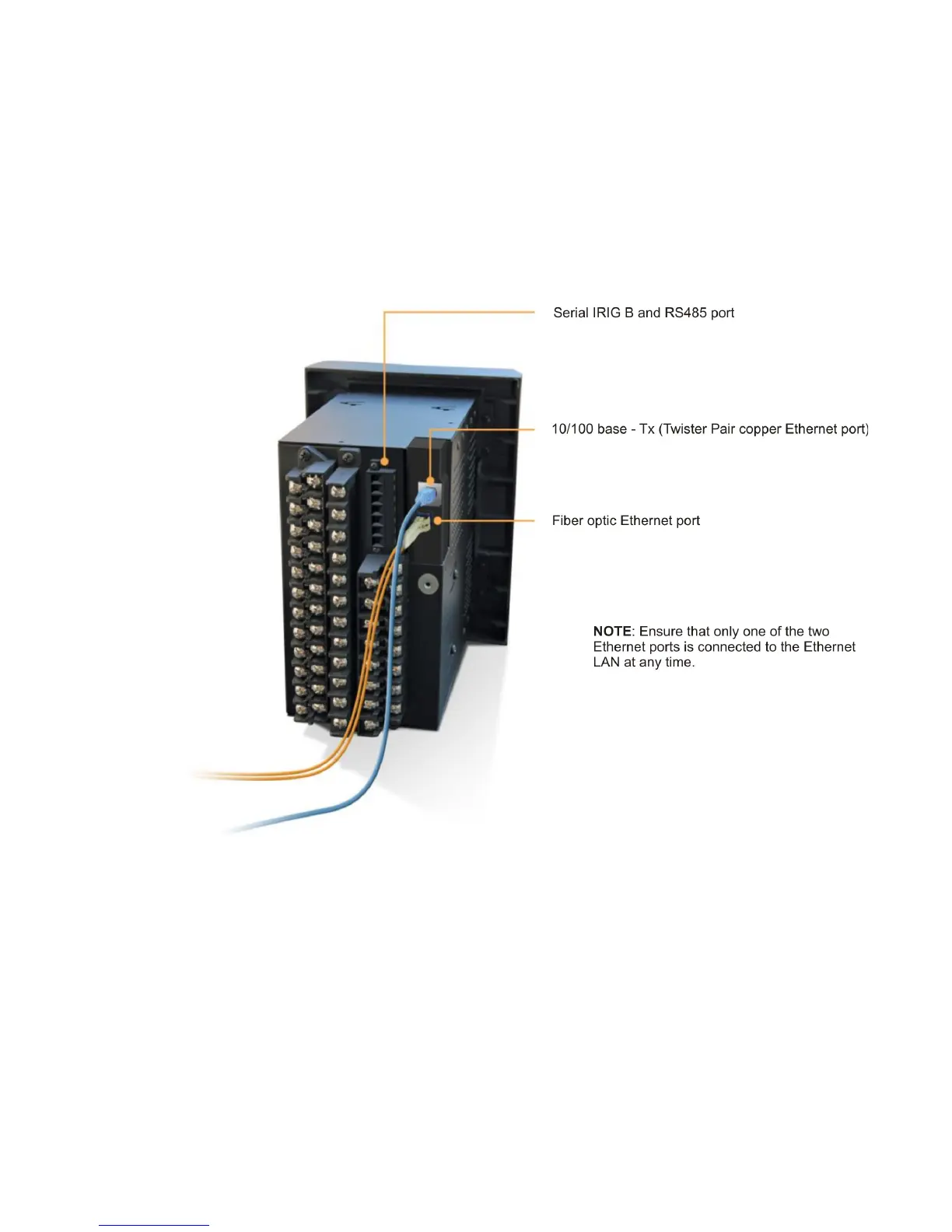

Once the IP address and subnet mask have been configured within each relay using the
procedures outlined earlier in this guide, and the power to the relays cycled, the relays are
ready to be connect though a switch to the computer running the EnerVista 3
Series
Setup software. Please note that an IP address and subnet mask are not required for
GOOSE messaging but are required to allow configuration of the relays via Ethernet.
