TEST SEQUENCE

[EN] English 91 K0553 Revision D

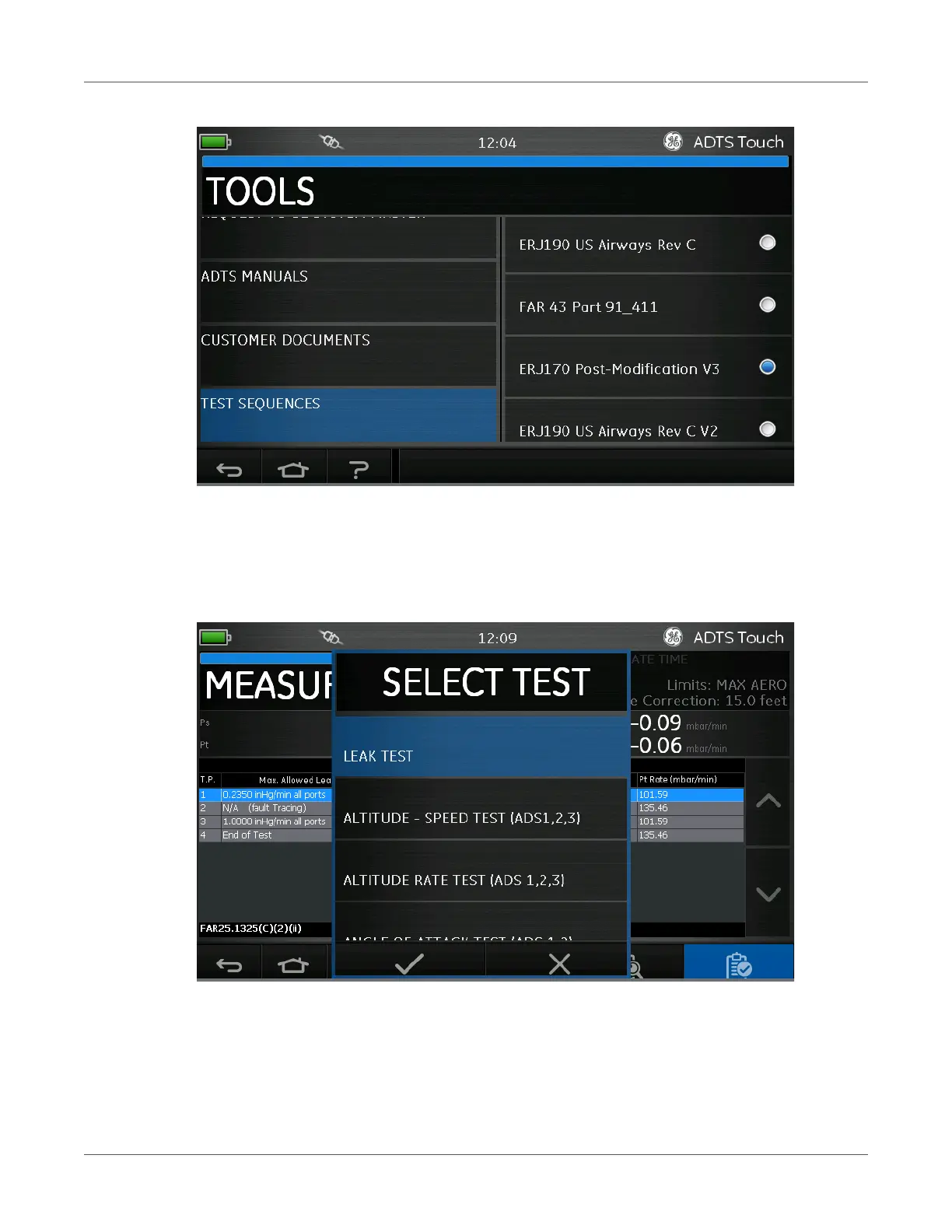

Figure 3-34: Test Sequences Menu

3) Touch the desired test file radio button. A list of test procedures in that file is displayed.

Figure 3-35: Test procedure selection screen
