R
ATE
T
IMER
MODE
[EN] English
47
K0553 Revision D

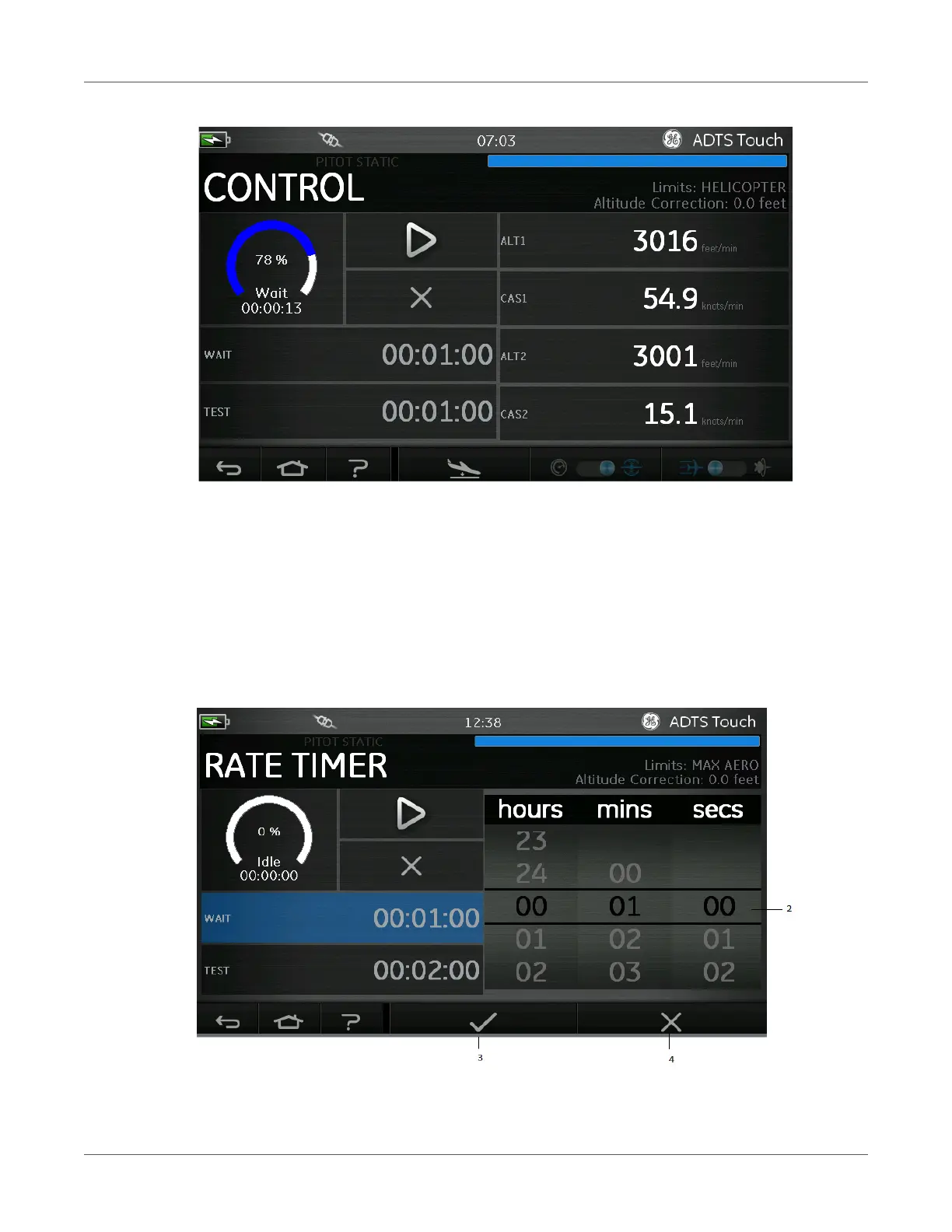

Figure 3-12: Rate timer panel -
Multi Channel
The Rate Timer starts an internal
timer for a pre-defined set of ti
mes. On the comp
letion of the
time period, the display show
s the average rate of change over the time perio
d.
To set the
WAIT
perio
d:
1)
On the
Rate Timer
panel, tap “
WA
IT
(1) to highlight it, the
Set Time
panel opens.
Figure 3-13: Set time pane
l
55
57
