ADTS542F

[EN] English 7 K0553 Revision D

8 Power cable connector

9Fuses

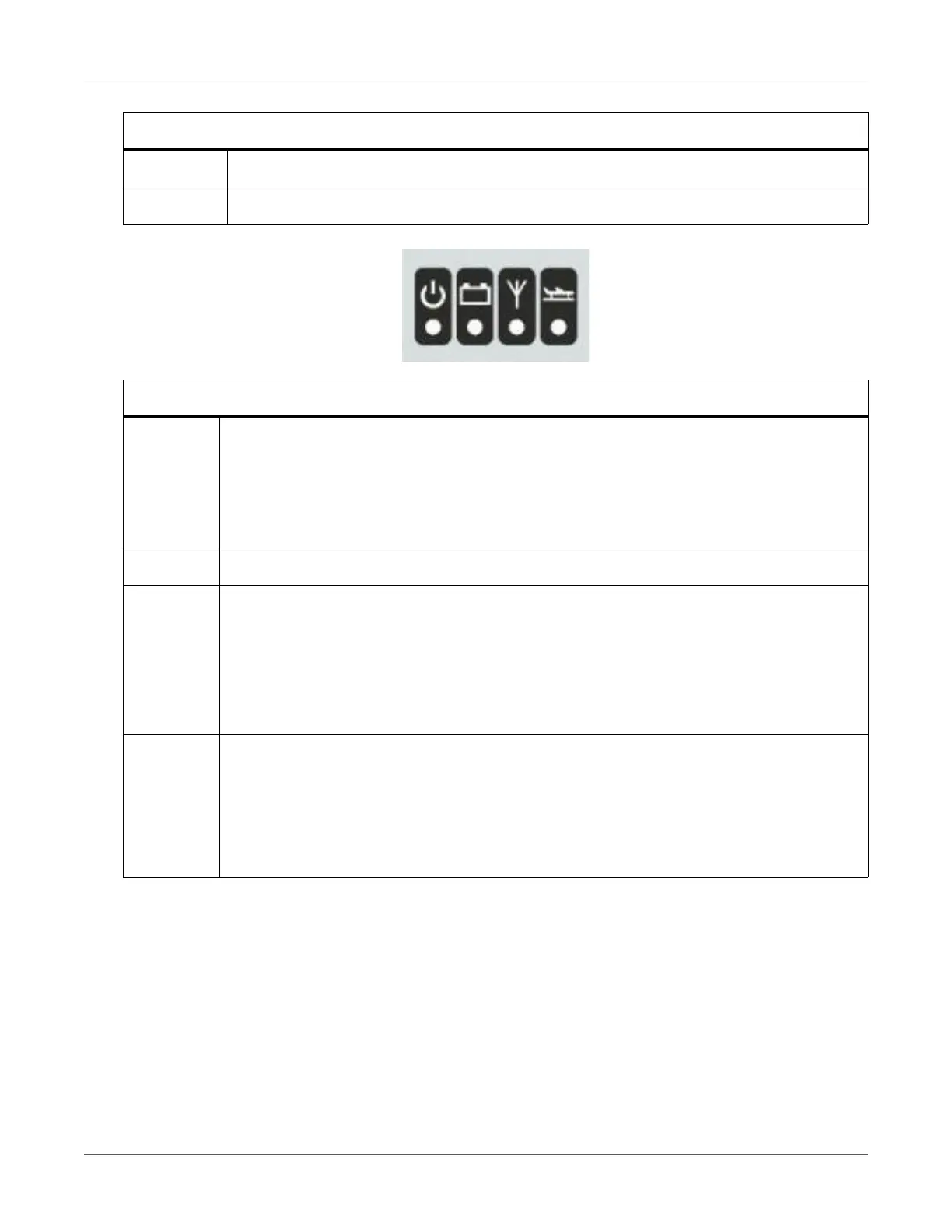

Test set status indications:

4a Power on and self test:

- Off (power Off)

- Standby (Yellow)

- Self test in progress (Green (flashing))

- Pass/Ready (Green)

- Fault (Red)

4b Battery pack status (if fitted):- For LED indications, see section 5.4 “ADTS5xxF battery pack”

4c Bluetooth® wireless technology connection status:

- Wireless connection present (Blue)

- Wired connection and Bluetooth option enabled (Flashing blue)

- Fast flash - enabled and visible for pairing (available for 5 minutes after power-up)*

- Slow blink - enabled but not visible for pairing*

- Bluetooth option disabled (Wireless off)

- Initialisation Fault (Red) *

4d Aircraft status:

• When the ADTS is controlling the aircraft and it is “off ground” or after power on self test the

LED will be Yellow

• When the ADTS is controlling the aircraft to “going to ground”, the LED will flash yellow

• When the ADTS has made the aircraft “safe at ground”, the LED is green- In standby-mode, this

LED will be off.

a. * - ADTS553 & ADTS554 only

Key to Figure 1-1:

GE ADTS542F User Manual
