R
ATE
T
IMER
MODE
K0553 Revision D
46
[EN] English
Rate Timer mode
To access this screen
tap and drag the whole
MEASURE
or
CONTROL
screen across to the left
The pre-defined time period has an
associated wait period that a
llows pressures to settle before
the timing starts. The wait perio
d counts do
wn to zero before th
e time period starts.

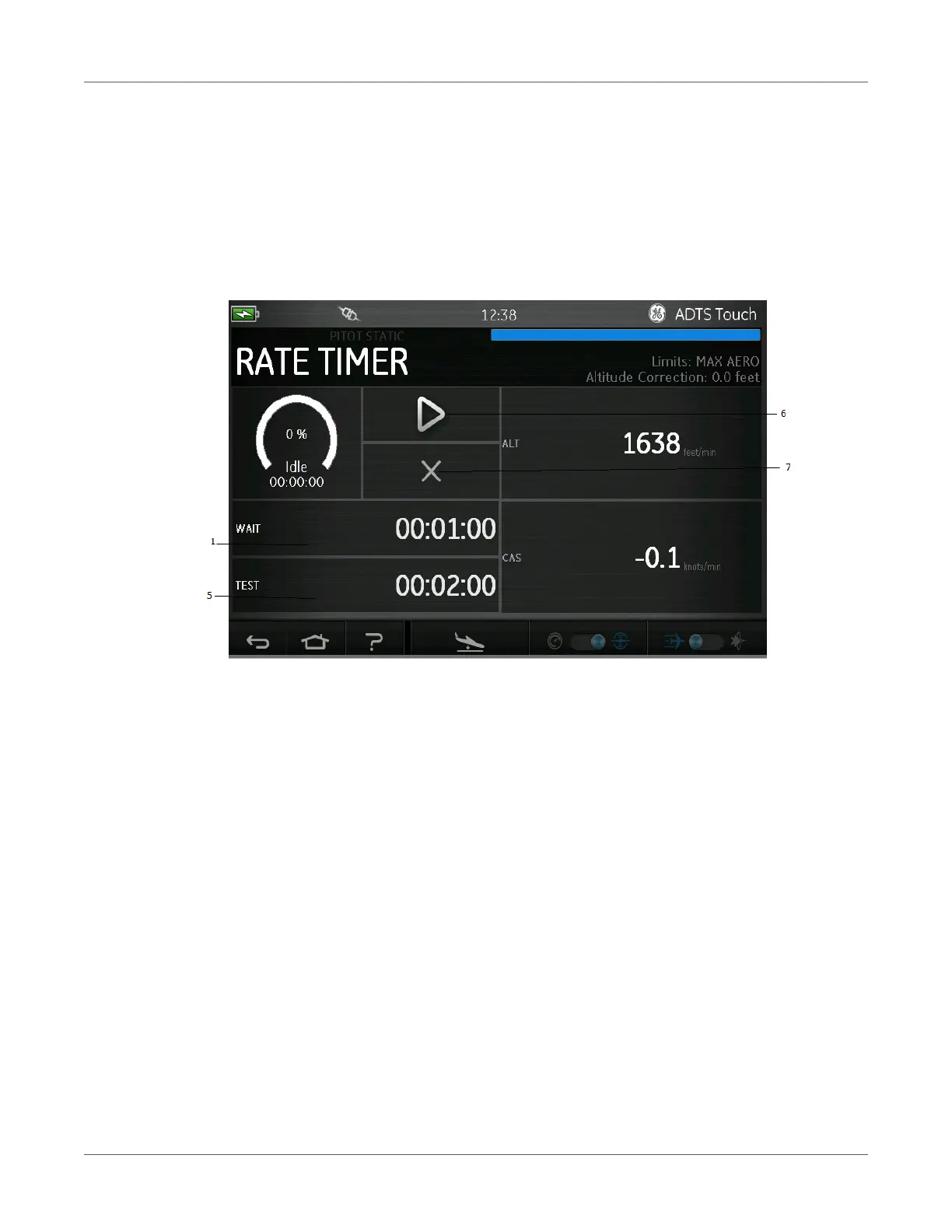

Figure 3-11: Rate timer panel -
Single Channel
54
56
