K0553 Revision D

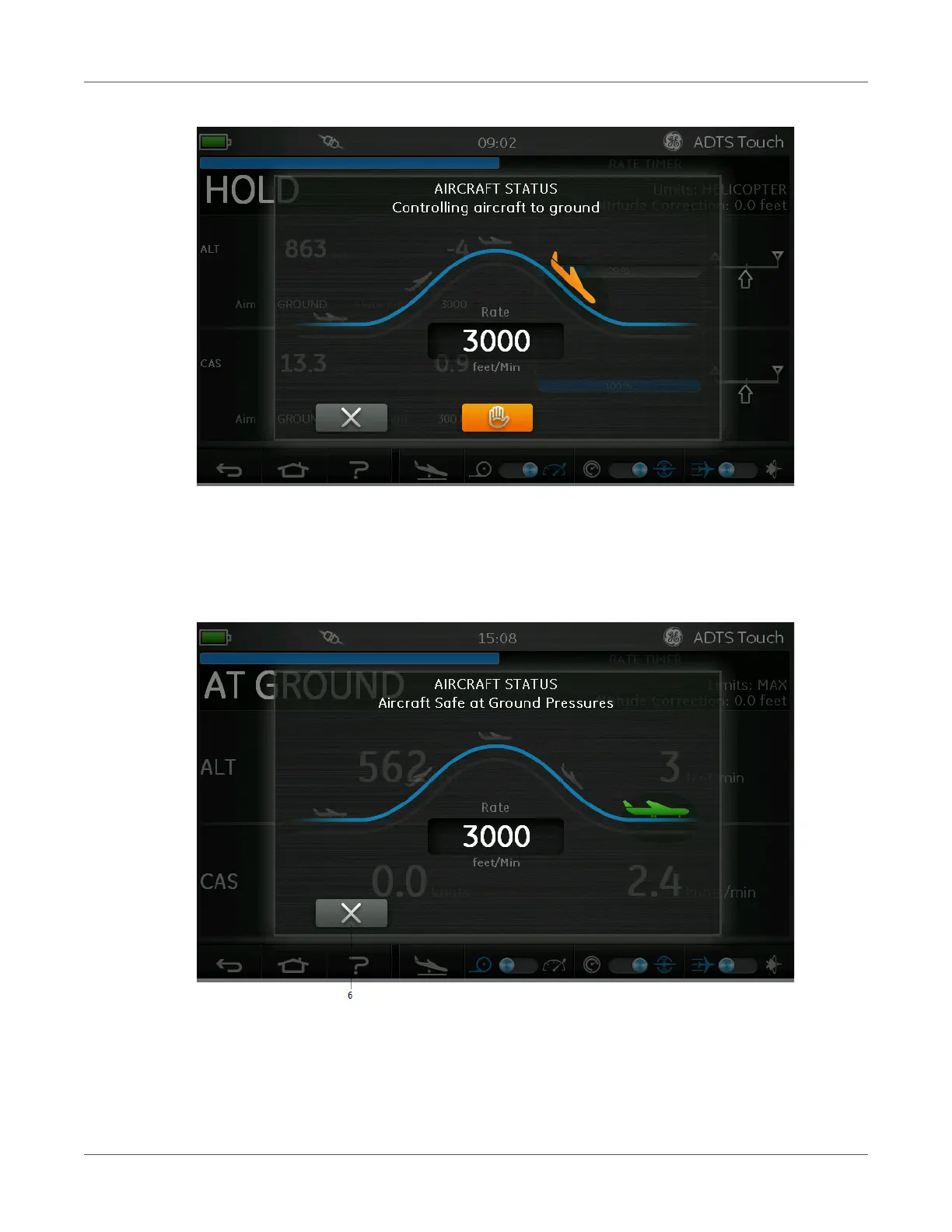

Figure 3-24: Hold status during
go to ground ramp
When at ground pressure, the ai
rcraft colour ch
anges to green.
Figure 3-25: Aircraft at ground
6)
Tap the “cross” icon (6) to clo
se the Go to ground s
creen.
83
85
