GE Power Quality Meter Series User Manual

GE Power Management PQM Power Quality Meter 6-15
6 SOFTWARE 6.6 POWER ANALYSIS
6

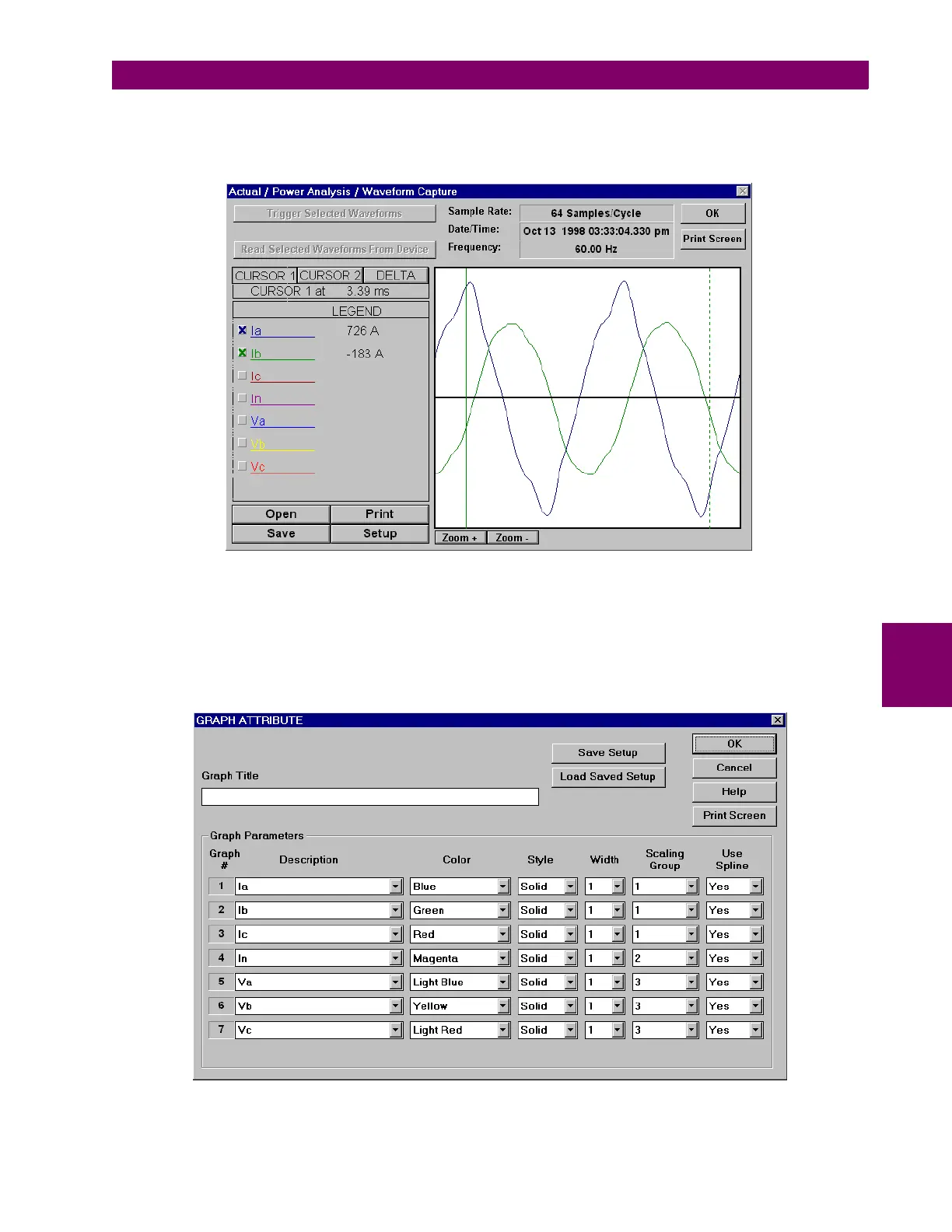

3. Selecting
Actual Values > Power Analysis > Harmonic Analysis > Waveform
displays the Harmonic Analysis
Waveform window. Select the trigger parameter from the
Select Trigger
box and press
Trigger
to capture
new waveforms from the PQM.
The window includes waveform values for the current cursor line position and check boxes to display the
desired waveforms.
Select
Read Last Trigger From Device
to load previous acquired waveforms from the PQM.
Open
loads and views previously save waveforms,
Save
saves the captured waveforms,
Print
prints the cur-
rently displayed waveforms, and
Setup
allows the user to change the capture parameters.
4. Clicking
Setup
displays the GRAPH ATTRIBUTE window:
From this window, the waveforms appearance and format can be modified.
