Chapter 2. Instrument Setup
USM Go Operator’s Manual 37
2.4 Installing a Probe
Follow the instructions in this section to install a probe on your USM Go.
2.4.1 Connecting the Probe
When connecting a probe to the instrument, the following steps must be taken:
• Properly complete the physical connection of the probe to the instrument.
• Properly configure the instrument to work with the connected probe.
The USM Go accepts either a single-element probe or a dual-element probe.
To install a single-element probe, connect the probe cable to either of the two ports on
the side of the instrument (see Figure 11 to the right). When a dual-element probe is
connected to the instrument, the key between and below the ports ensures proper
orientation of the transmit and receive connectors.

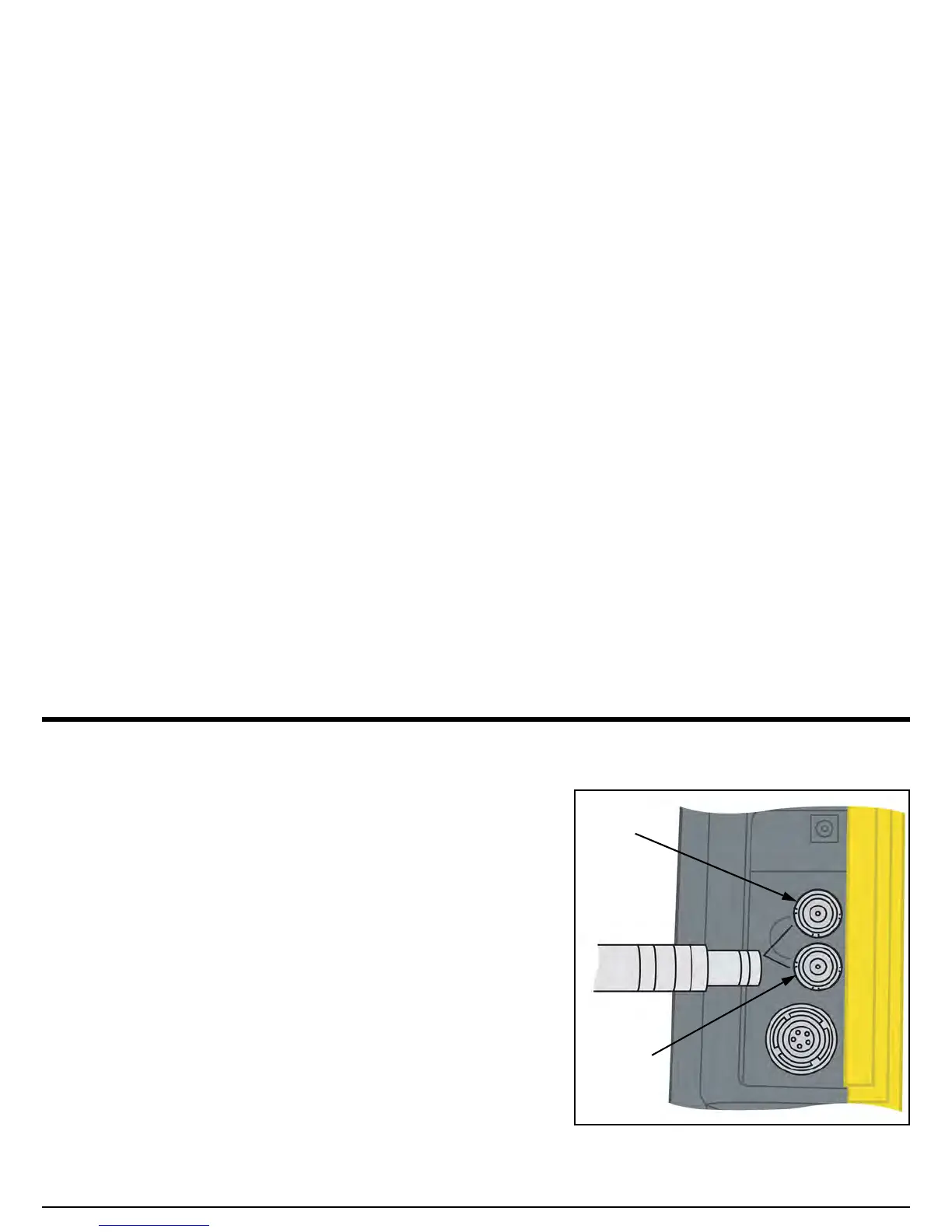

Figure 11: Probe Connector Locations
