GE Multilin L60 Line Phase Comparison System B-9
APPENDIX B B.4 MEMORY MAPPING
B
B.4MEMORY MAPPING B.4.1 MODBUS MEMORY MAP

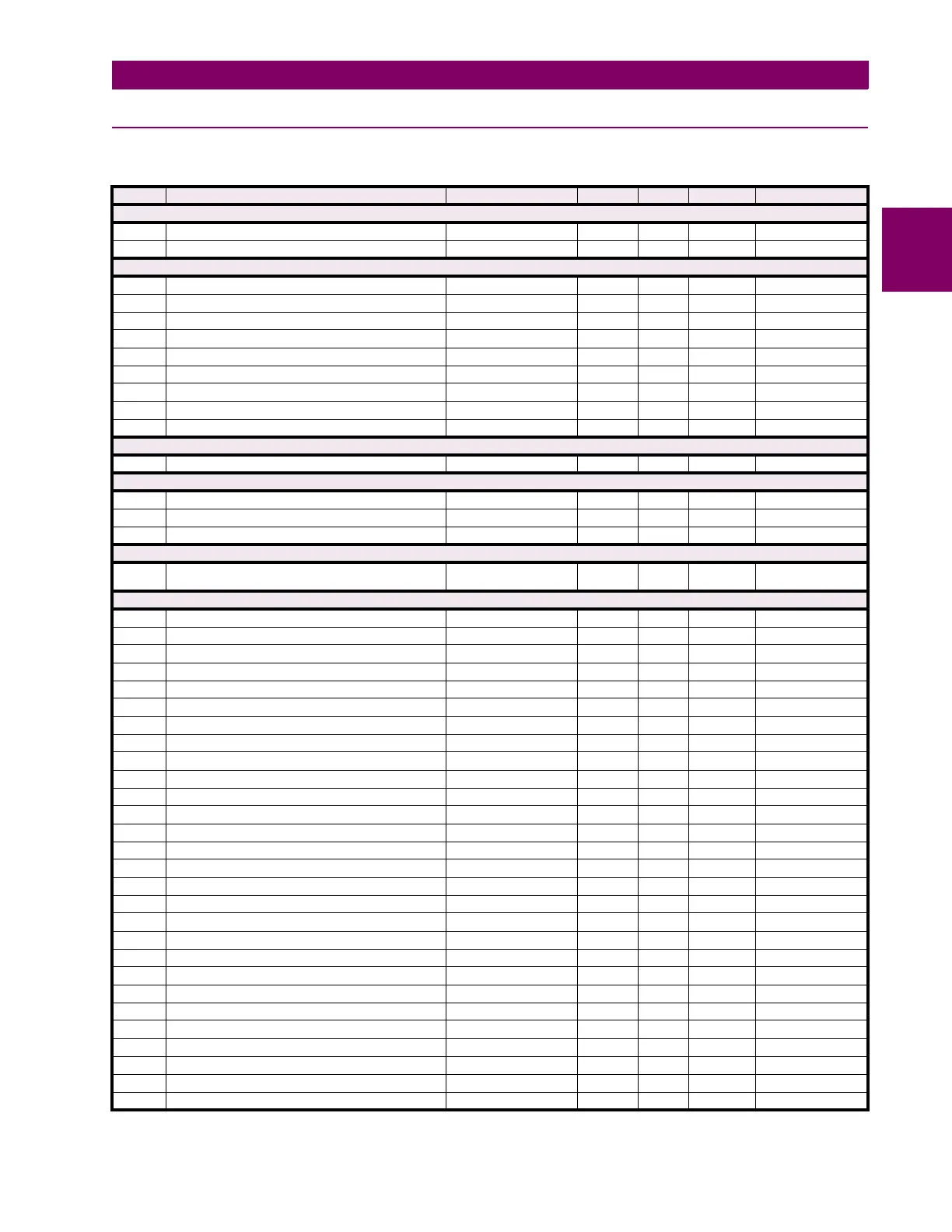

Table B–9: MODBUS MEMORY MAP (Sheet 1 of 55)
ADDR REGISTER NAME RANGE UNITS STEP FORMAT DEFAULT
Product Information (Read Only)
0000 UR Product Type 0 to 65535 --- 1 F001 0
0002 Product Version 0 to 655.35 --- 0.01 F001 1
Product Information (Read Only -- Written by Factory)
0010 Serial Number --- --- --- F203 “0”
0020 Manufacturing Date 0 to 4294967295 --- 1 F050 0
0022 Modification Number 0 to 65535 --- 1 F001 0
0040 Order Code --- --- --- F204 “Order Code x”
0090 Ethernet MAC Address --- --- --- F072 0
0093 Reserved (13 items) --- --- --- F001 0
00A0 CPU Module Serial Number --- --- --- F203 (none)
00B0 CPU Supplier Serial Number --- --- --- F203 (none)
00C0 Ethernet Sub Module Serial Number (8 items) --- --- --- F203 (none)
Self Test Targets (Read Only)
0200 Self Test States (2 items) 0 to 4294967295 0 1 F143 0
Front Panel (Read Only)
0204 LED Column n State, n = 1 to 10 (10 items) 0 to 65535 --- 1 F501 0
0220 Display Message --- --- --- F204 (none)
0248 Last Key Pressed 0 to 47 --- 1 F530 0 (None)
Keypress Emulation (Read/Write)
0280 Simulated keypress -- write zero before each keystroke 0 to 42 --- 1 F190 0 (No key -- use
between real keys)
Virtual Input Commands (Read/Write Command) (64 modules)
0400 Virtual Input 1 State 0 to 1 --- 1 F108 0 (Off)
0401 Virtual Input 2 State 0 to 1 --- 1 F108 0 (Off)
0402 Virtual Input 3 State 0 to 1 --- 1 F108 0 (Off)
0403 Virtual Input 4 State 0 to 1 --- 1 F108 0 (Off)
0404 Virtual Input 5 State 0 to 1 --- 1 F108 0 (Off)
0405 Virtual Input 6 State 0 to 1 --- 1 F108 0 (Off)
0406 Virtual Input 7 State 0 to 1 --- 1 F108 0 (Off)
0407 Virtual Input 8 State 0 to 1 --- 1 F108 0 (Off)
0408 Virtual Input 9 State 0 to 1 --- 1 F108 0 (Off)
0409 Virtual Input 10 State 0 to 1 --- 1 F108 0 (Off)
040A Virtual Input 11 State 0 to 1 --- 1 F108 0 (Off)
040B Virtual Input 12 State 0 to 1 --- 1 F108 0 (Off)
040C Virtual Input 13 State 0 to 1 --- 1 F108 0 (Off)
040D Virtual Input 14 State 0 to 1 --- 1 F108 0 (Off)
040E Virtual Input 15 State 0 to 1 --- 1 F108 0 (Off)
040F Virtual Input 16 State 0 to 1 --- 1 F108 0 (Off)
0410 Virtual Input 17 State 0 to 1 --- 1 F108 0 (Off)
0411 Virtual Input 18 State 0 to 1 --- 1 F108 0 (Off)
0412 Virtual Input 19 State 0 to 1 --- 1 F108 0 (Off)
0413 Virtual Input 20 State 0 to 1 --- 1 F108 0 (Off)
0414 Virtual Input 21 State 0 to 1 --- 1 F108 0 (Off)
0415 Virtual Input 22 State 0 to 1 --- 1 F108 0 (Off)
0416 Virtual Input 23 State 0 to 1 --- 1 F108 0 (Off)
0417 Virtual Input 24 State 0 to 1 --- 1 F108 0 (Off)
0418 Virtual Input 25 State 0 to 1 --- 1 F108 0 (Off)
0419 Virtual Input 26 State 0 to 1 --- 1 F108 0 (Off)
041A Virtual Input 27 State 0 to 1 --- 1 F108 0 (Off)
041B Virtual Input 28 State 0 to 1 --- 1 F108 0 (Off)
